RB-550 (219-405-190) - White Outdoor Roto Boss Tiller (1989) Handle & Tine Assembly Parts Diagram

Roto Boss Tiller

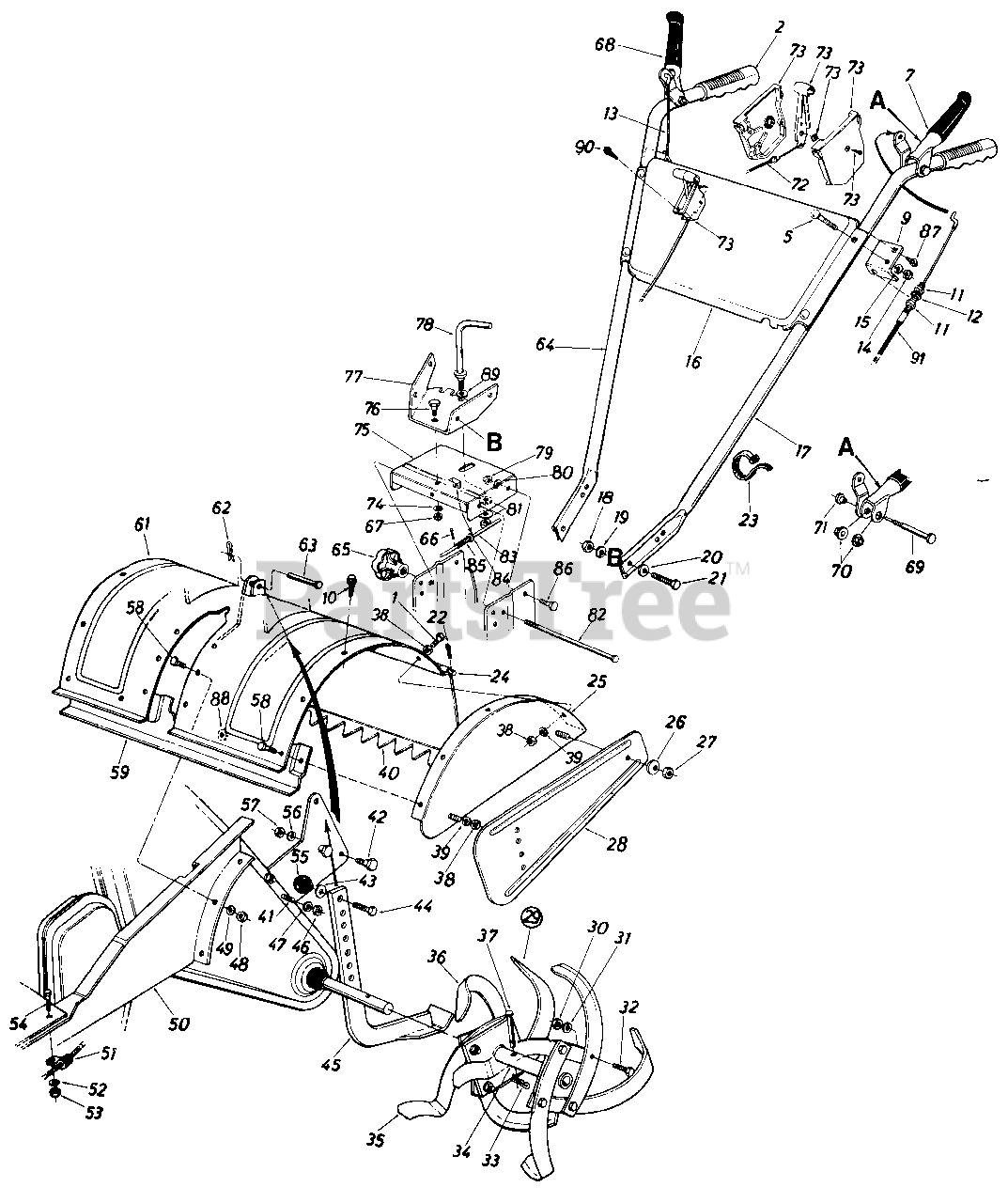

Handle & Tine Assembly Parts Diagram

  • Title

1

White Outdoor 710-0528

Hex Bolt 5/16-18 x 11/4" Lg.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 720-0180

Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0458

Carr. Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

7

White Outdoor 784-0031

Clutch Grip Ass'y.-L.H.

Note: (Tines)

$

$

Not available

9

White Outdoor 15093C

Clutch Cable Bracket

$

$

Not available

10

White Outdoor 710-0607

Hex Wash. S-Tap Scr. 5/16-18 x .62" Lg.

$6.99

$

In Stock, Qty 11

0

11

White Outdoor 712-0256

Hex Nut 5/16-24 Thd.

$

$

Not available

12

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 746-0484

Wheel Drive Cable
(Superseded to 946-0484)

$66.99

$

In Stock, Qty 10

0

14

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 784-0036A

Handle Panel

$

$

Not available

17

749-0637

Handle-L.H.

$

$

Not available

18

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

19

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0105

Bell-Wash. 318" I.D.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x 3/4"*

$4.49

$

In Stock, only 2 left!

0

23

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

24

White Outdoor 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

25

MTD 14989

End Cover Ass'y.-L.H.

Variations

White Outdoor 14989-0637

No Longer Available COVER ASSY-END-LH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 14990

End Cover Ass'y.-R.H.

Note: (Not Shown)

Variations

White Outdoor 14990-0637

No Longer Available COVER ASSY-END-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14990-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

26

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

28

White Outdoor 15390

Side Shield

Variations

White Outdoor 15390-0480

SHIELD-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 15390-0498

SHIELD-SIDE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 15390-0499

SHIELD-SIDE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 15390-0629

SHIELD-SIDE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 15390-0637

SHIELD-SIDE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 15390-0638

SHIELD-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 15390-0648

SHIELD-SIDE - TECH GRAY (0648)

$

$

Not available

White Outdoor 15390-0662

SHIELD-SIDE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 15390-0665

SHIELD-SIDE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 15390-0674

SHIELD-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

29

White Outdoor 15397

L.H. Tine Ass'y. Comp.

Variations

White Outdoor 15397-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 15398

R.H. Tine Ass'y. Comp.

Note: (Not Shown)

Variations

White Outdoor 15398-0637

No Longer Available TINE ASSY-RH-COMP - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

31

White Outdoor 736-0169

L-Wash. 318" I.D.

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

33

White Outdoor 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

34

White Outdoor 14978

Tine Adapter Ass'y.

Variations

White Outdoor 14978-0637

No Longer Available ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 742-0106

Tine 12" R.H.
(Superseded to 1916946001)

Variations

White Outdoor 742-0106-0637

Tiller Bolo Tine, 12" RH 3-Hole - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

36

White Outdoor 742-0105

Tine 12" L.H.

Variations

White Outdoor 742-0105-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 711-0415

Clevis Pin 318" Dia.

$4.99

$

In Stock, Qty 19

0

38

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

39

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 14979

Tine Shield Flap
(Superseded to 786-0113)

Variations

White Outdoor 14979-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0665

USE 786-0113-0665 0113A SHIE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0606

No Longer Available SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 14979-0662

No Longer Available SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

41

White Outdoor 710-0736

Hex Bolt 5/16-18 x 1.0" Lg.

$

$

Not available

42

White Outdoor 738-0507B

Shld. Bolt 1/2 Dia. x .426"

$4.49

$

In Stock, only 4 left!

0

43

White Outdoor 736-0117

Fl-Wash. 318" I.D. x 518" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

44

White Outdoor 710-0216

Hex Bolt 3/8-16 x 314" Lg.

$4.49

$

In Stock, Qty 16

0

45

White Outdoor 14992

Depth Bar Ass'y.
(Superseded to 786-0120-0637)

Variations

White Outdoor 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

46

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

47

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

49

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

White Outdoor 14975

Frame Rail-L.H.

Variations

White Outdoor 14975-0637

No Longer Available RAIL-FRAME-LH - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 726-0175

Clamp 5/16" Dia.

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

54

White Outdoor 710-0118

Hex Bolt 5/16-18 x 3/4" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 720-0165

Ball Knob 1-1/4" Dia.
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

56

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

58

White Outdoor 710-0118

Hex Bolt 5/16-18 x 75n Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 15393

Brkt. Reinforcement

Variations

White Outdoor 15393-0637

No Longer Available BRACKET-REINF - POWDER BLACK (0637)

$

$

Not available

$

$

61

White Outdoor 784-0026

Tine Shield Ass'y.

Variations

White Outdoor 784-0026-0498

No Longer Available SHIELD-TINE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0026-0638

No Longer Available SHIELD-TINE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

62

White Outdoor 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

63

White Outdoor 711-0415

Clevis Pin 3/8" Dia.

$4.99

$

In Stock, Qty 19

0

64

White Outdoor 749-0762

Handle-R . H .

$

$

Not available

65

White Outdoor 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

66

White Outdoor 714-0127

Cotter Pin 1/16" Dia. x .75" Lg.

$

$

Not available

67

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

68

White Outdoor 784-0270

Clutch Grip Ass'y.-R.H.

Note: (Wheels)

$

$

Not available

69

White Outdoor 738-0560

Shoulder Bolt 38n Dia. x 1.53" Lg.
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

70

White Outdoor 741-0402

Hex Flange Plastic Bearing
(Superseded to 941-0402)

$

$

Not available

71

White Outdoor 738-0561

Shoulder Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

72

White Outdoor 746-0502

Throttle Control Wire
(Superseded to 946-0502)

$24.99

$

In Stock, only 1 left!

0

73

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

74

White Outdoor 736-0219

Bell-Wash. 40n l.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

75

White Outdoor 784-0022

Handle Pivot Bracket

Variations

White Outdoor 784-0022-0498

No Longer Available BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0022-0499

No Longer Available BRACKET - CUB BEIGE (0499)

$

$

Not available

White Outdoor 784-0022-0637

No Longer Available BRACKET-PIVOT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0022-0638

No Longer Available BRACKET - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0022-0687

No Longer Available BRACKET - PINE GREEN (0687)

$

$

Not available

$

$

76

White Outdoor 738-0281

Shoulder Bolt

$10.99

$

In Stock, only 1 left!

0

77

White Outdoor 784-0019

Handle Mtg. Bracket

Variations

White Outdoor 784-0019-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0019-0637

No Longer Available 28DCKET-HANDLE MTG - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0019-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

78

784-0025

Adj. Handle Ass'y.

$

$

Not available

79

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

80

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 736-0253

Bell-Wash. 1/2" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 711-0765

Lock Pin 5/16" Dia. x 8"

$

$

Not available

83

White Outdoor 784-0023

Lower Sliding Ass'y.

$

$

Not available

84

White Outdoor 736-0463

Fl-Wash. .291" l.D. x .62n O.D.

$4.49

$

In Stock, only 2 left!

0

85

White Outdoor 732-0145

Compression Spring .36" O.D. x 1.00n Lg.

$4.49

$

Usually ships in 3-6 days

0

86

White Outdoor 738-0147

Shoulder Bolt 1/2" Dia. x .170" Lg.

$

$

Not available

87

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 0 x 60n Lg

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 736-0285

Fl-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 9

0

90

White Outdoor 710-0779

Self-Tap Scr. #10 x 1/2" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

91

White Outdoor 746-0535

Tine Control Cable
(Superseded to 946-0535)

$69.99

$

In Stock, Qty 10

0
