RB-550 (216-447-190) - White Outdoor Roto Boss Tiller (1996) Handle & Tines Parts Diagram

Roto Boss Tiller

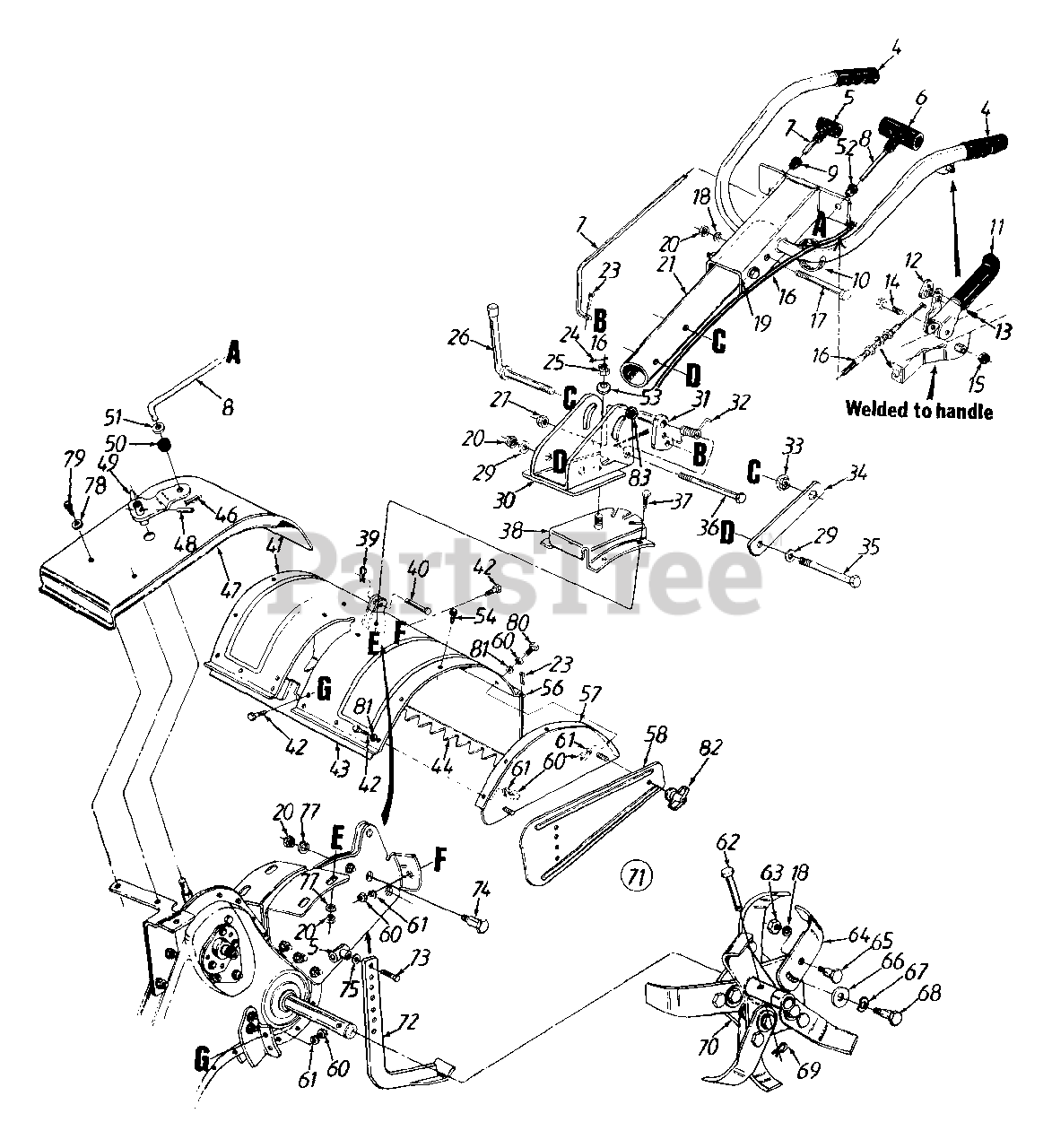

Handle & Tines Parts Diagram

  • Title

4

MTD 720-04083

Handle Grip

$14.99

$

In Stock, only 2 left!

0

5

MTD 720-0210A

Small "T" Knob

$15.99

$

In Stock, only 2 left!

0

6

MTD 720-0209

Large "T" Knob

$21.99

$

In Stock, only 1 left!

0

7

MTD 747-0666

Clutch Rod

$25.99

$

Usually ships in 3-6 days

0

8

MTD 747-0664

Control Rod 37" Lg.

$23.99

$

Usually ships in 3-6 days

0

9

MTD 735-0228

Snap On Bushing 3/8" Dia.

Note: NLA

$

$

Not available

10

MTD 725-0157

Cable Tie-Self Clinching

$3.99

$

In Stock, Qty 20+

0

11

MTD 984-0202B

Clutch Grip Ass'y. - L.H.
(Superseded to 684-04399A-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

In Stock, only 4 left!

0

12

MTD 946-0605

Barrel Cable Hold Down

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 7

0

14

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

15

MTD 712-0262

Hex Jam L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

16

MTD 946-0908

Clutch Control Cable 46" Lg.

$75.99

$

In Stock, Qty 15

0

17

MTD 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

Note: NLA

$

$

Not available

18

MTD 936-0217

L-Wash. 3/8" I.D. - H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

19

MTD 686-0075

Handle Ass'y.

Note: NLA

Variations

MTD 686-0075-0483

No Longer Available HANDLE AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 686-0075-0498

No Longer Available HANDLE AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 686-0075-0637

No Longer Available HANDLE ASM - POWDER BLACK (0637)

$

$

Not available

MTD 686-0075-0638

No Longer Available HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 686-0075-0648

No Longer Available HANDLE AS - TECH GRAY (0648)

$

$

Not available

MTD 686-0075-0662

No Longer Available HANDLE ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 686-0075-0665

No Longer Available HANDLE ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

21

MTD 784-0189

Handle Tubing Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 784-0189-0498

TUBE ASM-HNDL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0189-0637

TUBE ASM-HNDL - POWDER BLACK (0637)

$

$

Not available

MTD 784-0189-0638

TUBE ASM-HNDL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0189-0648

TUBE ASM-HNDL - TECH GRAY (0648)

$

$

Not available

MTD 784-0189-0650

TUBE ASM-HNDL - RED METALLIC (0650)

$

$

Not available

MTD 784-0189-0662

TUBE ASM-HNDL - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0189-0665

TUBE ASM-HNDL - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0189-0691

TUBE ASM-HNDL - BLACK JACK (0691)

$

$

Not available

MTD 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

23

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 17

0

24

MTD 914-3021

Cotter Pin 3/32" Dia. x 1.25" Lg.

$

$

Not available

25

MTD 712-0386A

Hex Slotted Nut 5/8-18 Thd.

$7.99

$

Usually ships in 3-6 days

0

26

MTD 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

27

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

29

MTD 736-0105

Bell-Wash. .4" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 684-0263A-0637

Handle Pivot Bracket

$

$

Not available

31

MTD 748-0375

Handle Link

$20.99

$

Usually ships in 3-6 days

0

32

MTD 732-0493

Spring Handle Adj. (Torsion)

$16.99

$

Usually ships in 3-6 days

0

33

MTD 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

34

MTD 784-0191

Bracket Hex Nut Retainer

$7.49

$

Usually ships in 3-6 days

0

35

MTD 710-0644

Hex Bolt 3/8-16 x 3.25" Lg."
(Superseded to 710-3130)

Note: NLA

$10.99

$

In Stock, only 4 left!

0

36

MTD 710-0521

Hex Bolt 3/8-16 x 3.00" Lg. - Gr. 8

$5.49

$

In Stock, Qty 11

0

37

MTD 910-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

38

MTD 686-0071

Handle Positioner Brkt. Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 686-0071-0480

BRACKET ASSY-POSITIONER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 686-0071-0483

BRACKET ASSY-POSITIONER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 686-0071-0498

BRACKET ASSY-POSITIONER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 686-0071-0637

BRACKET ASSY-POSITIONER - POWDER BLACK (0637)

$

$

Not available

MTD 686-0071-0638

BRACKET ASSY-POSITIONER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 686-0071-0662

BRACKET ASSY-POSITIONER - OYSTER GRAY (0662)

$

$

Not available

MTD 686-0071-0665

BRACKET ASSY-POSITIONER - YARDMAN GREEN (0665)

$

$

Not available

MTD 686-0071-4015

BRACKET ASSY-POSITIONER - FIRE RED (4015)

$

$

Not available

$

$

39

MTD 914-0149B

Intern. Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

40

MTD 911-0415

Clevis Pin .375" Dia.
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

41

MTD 784-0156

Tine Shield 18"

Note: NLA

Variations

MTD 784-0156-0483

No Longer Available SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0156-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0156-0499

No Longer Available SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

MTD 784-0156-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 784-0156-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0156-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0156-0665

No Longer Available SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-0210

Bracket Reinforcement - 18"

Note: NLA

$

$

Not available

44

MTD 786-0113

Tine Shield Hinge Flap

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0113-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0716

Rear Tine Shield - CUB YELLOW-99 (0716)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0650

SHIELD-REAR TINE - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0709

SHIELD-REAR TINE - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-4015

REAR TINE SHIELD - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0606

No Longer Available SHIELD-TIN - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 786-0113-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

46

MTD 914-0104

Intern. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

47

MTD 784-0208C

Shift Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0208C-0498

COVER-S - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0208C-0606

COVER-SHIFT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 784-0208C-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0208C-0640

COVER-SHIFT - CO-OP GREEN (0640)

$

$

Not available

MTD 784-0208C-0650

COVER-SHIFT - RED METALLIC (0650)

$

$

Not available

MTD 784-0208C-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0208C-0665

COVER-SHIFT - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0208C-0691

COVER SHIFT - BLACK JACK (0691)

$

$

Not available

MTD 784-0208C-0716

COVER-SHIFT - CUB YELLOW-99 (0716)

$

$

Not available

MTD 784-0208C-4015

COVER-SHIFT - FIRE RED (4015)

$

$

Not available

MTD 784-0208C-4021

COVER SHIFT - CUB YELLOW 2 (4021)

$

$

Not available

$

$

48

MTD 715-0120

Spring Roll Pin 3/16" Dia,

$10.99

$

In Stock, only 1 left!

0

49

MTD 784-0173

Shifting Crank Ass'y.

Note: NLA

$

$

Not available

50

MTD 735-0127

Rubber Washer .33" I.D.

$6.99

$

Usually ships in 3-6 days

0

51

MTD 936-0133

Fl-Wash. .4" I.D. x 1.25" O.D.
(Superseded to 736-0133)

$

$

Not available

52

MTD 735-0227

Snap On Bushing 1/2" Dia.

Note: NLA

$

$

Not available

53

MTD 736-0317

Bell-Wash. .63" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

54

MTD 710-0607

Hex Wash. Tap Scr.

$6.99

$

In Stock, Qty 9

0

56

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

57

MTD 984-0179A-0637

End Cover Ass'y.

$

$

Not available

58

MTD 15390

Side Shield

Note: NLA

Variations

MTD 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 15390-0637

No Longer Available SHIELD-SID - POWDER BLACK (0637)

$

$

Not available

MTD 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

?59

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

60

712 0267

Hex Nut 5/16-18 Thd.

Note: NLA

$

$

Not available

61

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

62

MTD 911-0415

Clevis Pin .375" Dia.
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

63

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

64

MTD 742-0305A-0637

13" Dia. Articulating Tine

$20.99

$

In Stock, Qty 20+

0

65

MTD 938-0689

Shld. Bolt 1/2" Dia. x .175

$8.99

$

In Stock, only 2 left!

0

66

MTD 936-0208

Fl-Wash. .51" I.D. x 1.50"
(Superseded to 736-0208)

$

$

Not available

67

MTD 936-0255

Bell-Wash. .515" I.D. x 1.14"
(Superseded to 736-0255)

$

$

Not available

68

MTD 938-0688

Shld. Bolt 1/2" Dia. x .320

$9.99

$

In Stock, Qty 15

0

69

MTD 914-0149B

Intern. Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

70

MTD 784-0160-0637

Tine Adapter Ass'y. 18"

$115.99

$

In Stock, only 3 left!

0

71

MTD 984-0205A-0637

Tine Ass'y. Comp. 18"

$215.99

$

In Stock, only 2 left!

0

72

MTD 786-0120-0637

Depth Bar

$66.99

$

In Stock, only 1 left!

0

73

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

74

MTD 938-0148

Shld. Bolt 1/2" I.D. x .62" Lg.

$16.99

$

Usually ships in 3-6 days

0

75

MTD 936-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.

$7.49

$

In Stock, only 1 left!

0

77

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

78

MTD 936-0463

Fl-Wash. .281" I.D. x .62"
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

79

MTD 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

80

MTD 710-0528

Hex Bolt 5/16-18 x 1 1/4" Lg.

$4.49

$

In Stock, Qty 19

0

81

MTD 712-0419

Cap L-Nut 5/16-18 Thd.

$

$

Not available

82

MTD 712-0421

Plastic Knob 5/16-18 Thd.

$6.99

$

In Stock, Qty 20+

0

83

MTD 936-3004

Fl-Wash. .406" I.D. x .875" O.D.
(Superseded to 736-3004)

$

$

Not available

MTD 777-5877D

Gear Selection Label

Note: NLA

$

$

Currently unavailable

MTD 777-5876D

F-N-R Label

Note: NLA

$

$

Currently unavailable

MTD 777-8186

Traction Speed Label

Note: NLA

$

$

Currently unavailable

MTD 777-8011

Operating Instruction Label

Note: NLA

$

$

Currently unavailable
