RB-550 (213-437-190) - White Outdoor Roto Boss Tiller (1993) Transmission Parts Diagram

Roto Boss Tiller

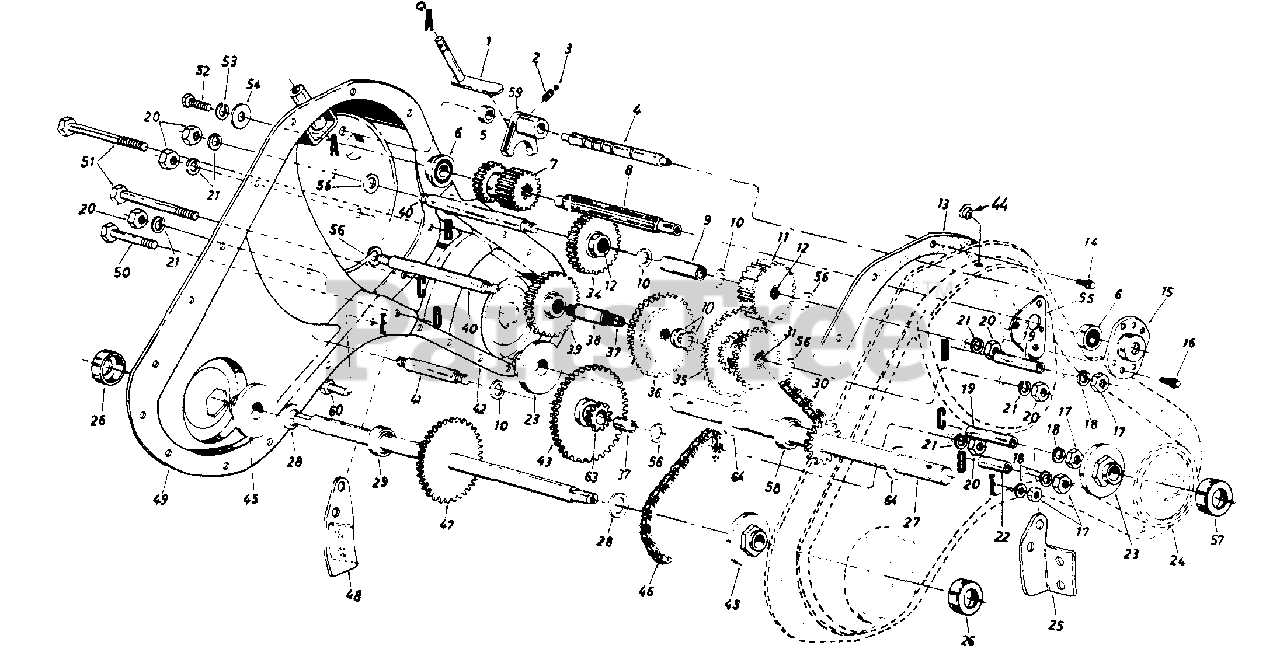

Transmission Parts Diagram

  • Title

White Outdoor 686-0030

Transmission
(Superseded to 986-0030)

$

$

Not available

1

White Outdoor 784-0171A

Shifting Bracket Ass'y.

$

$

Not available

2

White Outdoor 732-0496

Compression Spring .50" Lg.
(Superseded to 932-0496)

$4.99

$

In Stock, Qty 10

0

3

White Outdoor 741-0862

Ball Detent .250" Dia.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 738-0645

Detent Shaft 1/2" Dia.

$61.99

$

Usually ships in 3-6 days

0

5

White Outdoor 750-0664

Spacer .505" I.D. x .88" O.D.

$6.99

$

In Stock, only 2 left!

0

6

White Outdoor 741-0155

Ball Brg. .62" I.D. x 1.38"
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

7

White Outdoor 717-0851

Spur Gear 16T (Input)

$

$

Not available

8

White Outdoor 717-0852

Input Spline Shaft 7/8"

$

$

Not available

9

White Outdoor 750-0651

Spacer .657" I.D. x 2.85" Lg.

$

$

Not available

10

White Outdoor 736-0187

Fl-Wash. .640" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 717-0857

Spur Gear 30T 7/8" I.D.

$

$

Not available

12

White Outdoor 741-0478

Needle Bearing 5/8" I.D.
(Superseded to 941-0478)

$

$

Not available

13

White Outdoor 721-0211

Gasket - Trans. Hsg.
(Superseded to 921-0211)

$

$

Not available

14

White Outdoor 710-0599

Hex S-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 784-0211

1-3/8" Dia. Bearing Housing

$

$

Not available

16

White Outdoor 710-0642

Hex TT-Tap Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

18

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 750-0662

Spacer 1.56" Lg.

$

$

Not available

20

White Outdoor 712-0378

Hex Nut 7/16-20 Thd.

$6.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0407

Bell-Wash. .45" I.D. x 1.0"

$3.99

$

In Stock, Qty 12

0

22

White Outdoor 750-0661

Spacer 1.015" Lg.

$

$

Not available

23

White Outdoor 741-0420

Tine Shaft Brg. 1.002 x 2.50
(Superseded to 941-0420B)

$38.99

$

In Stock, Qty 11

0

24

White Outdoor 784-0214

Trans. Housing Ass'y. - L.H.

$

$

Not available

25

White Outdoor 784-0193

Bracket Gear Case - L.H.

Variations

White Outdoor 784-0193-0637

No Longer Available BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 784-0166

Dust Cover Ass'y. .75" Shaft
(Superseded to 721-0379)

$18.99

$

In Stock, only 2 left!

0

27

White Outdoor 784-0168

Tine Shaft Ass'y. 1" O.D.
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

28

White Outdoor 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 750-0671

Spacer .75" I.D. x .50" Lg.
(Superseded to 950-0671)

$11.99

$

Usually ships in 3-6 days

0

30

White Outdoor 713-0226

Chain #50 5/8 Pitch x 52 Links - Endless
(Superseded to 913-0226)

$102.99

$

Usually ships in 3-6 days

0

31

White Outdoor 741-0488

Needle Bearing 5/8" I.D.
(Superseded to 941-0488)

$

$

Not available

?32

White Outdoor 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

?33

White Outdoor 726-0277

Taper Cap Plug

$4.99

$

Usually ships in 3-6 days

0

34

717-0854

Spur Gear 30T 12/16" I.D.

$

$

Not available

35

White Outdoor 717-0874

30/44T Gear Ass'y. Comp.
(Superseded to 917-0874)

$

$

Not available

36

White Outdoor 717-0863

Spur Gear 44T

$

$

Not available

37

White Outdoor 741-0181

Sleeve Bearing
(Superseded to 941-0181)

$

$

Not available

38

White Outdoor 717-0835

Gear Hub 3/4" I.D. x 3" Lg.

$

$

Not available

39

White Outdoor 717-0855

Spur Gear 30T 1.0" I.D. x 1/2" W

$

$

Not available

40

White Outdoor 738-0647

Jack Shaft 5/8" Dia. x 5"

$

$

Not available

41

White Outdoor 738-0648

Jack Shaft 5/8" Dia. x 2.38"

$51.99

$

Usually ships in 3-6 days

0

42

White Outdoor 784-0215

Trans. Housing Ass'y. - R.H.
(Superseded to 686-0073-0637)

Variations

White Outdoor 784-0215-0637

HOUSING R.H. GEAR - POWDER BLACK (0637)

$

$

Not available

$

$

43

White Outdoor 717-0858

Spur Gear 55T

$

$

Not available

44

White Outdoor 726-0277

Plug

$4.99

$

Usually ships in 3-6 days

0

45

White Outdoor 741-0421

Wheel Brg. .752" x 2.5"

$

$

Not available

46

White Outdoor 713-0367

#420 Chain 1/2 Pitch x 50 Links - Endless
(Superseded to 913-0367)

$51.99

$

In Stock, only 2 left!

0

47

White Outdoor 784-0170

Wheel Shaft Ass'y. 15.6"

$

$

Not available

48

White Outdoor 784-0192

Bracket Gear Case - R.H.

Variations

White Outdoor 784-0192-0637

BRACKET-RH - POWDER BLACK (0637)

$

$

Not available

$

$

49

White Outdoor 784-0195

R.H. Housing Ass'y.

Variations

White Outdoor 784-0195-0637

No Longer Available HOUSING ASSY-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0195-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

50

White Outdoor 710-0116

Hex Bolt 5/16-18 x 2"
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 710-0378

Hex Bolt 5/16-18 x 2.5"

$4.99

$

In Stock, only 4 left!

0

52

White Outdoor 710-0513

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

53

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

55

White Outdoor 786-0065

Gear Positioner Bracket

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

56

White Outdoor 736-0406

Fl-Wash. 7/16" I.D. x 1-3/8"
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

57

White Outdoor 784-0167

Dust Cover Ass'y. 1" Shaft
(Superseded to 921-0378)

$18.99

$

In Stock, only 2 left!

0

58

White Outdoor 750-0570

Spacer 1" I.D. x 2" O.D.
(Superseded to 950-0570)

$10.99

$

In Stock, only 4 left!

0

59

White Outdoor 717-0853

Shifting Fork
(Superseded to 717-0853A)

$83.99

$

Usually ships in 3-6 days

0

60

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 784-0162

10T Sprocket Ass'y.
(Superseded to 984-0162A)

$

$

Not available

64

White Outdoor 736-0163

Thrust Wash. 1.03" I.D. x 1.62" O.D.

$4.49

$

In Stock, Qty 20+

0

White Outdoor 737-0223

10 oz. Tube Benalene #372-0 Grease
(Superseded to 737-0300A)

Note: 27 oz. Req'd.

$34.99

$

In Stock, Qty 20+

0
