RB-550 (213-437-190) - White Outdoor Roto Boss Tiller (1993) Rear Tine Tiller Parts Diagram

Roto Boss Tiller

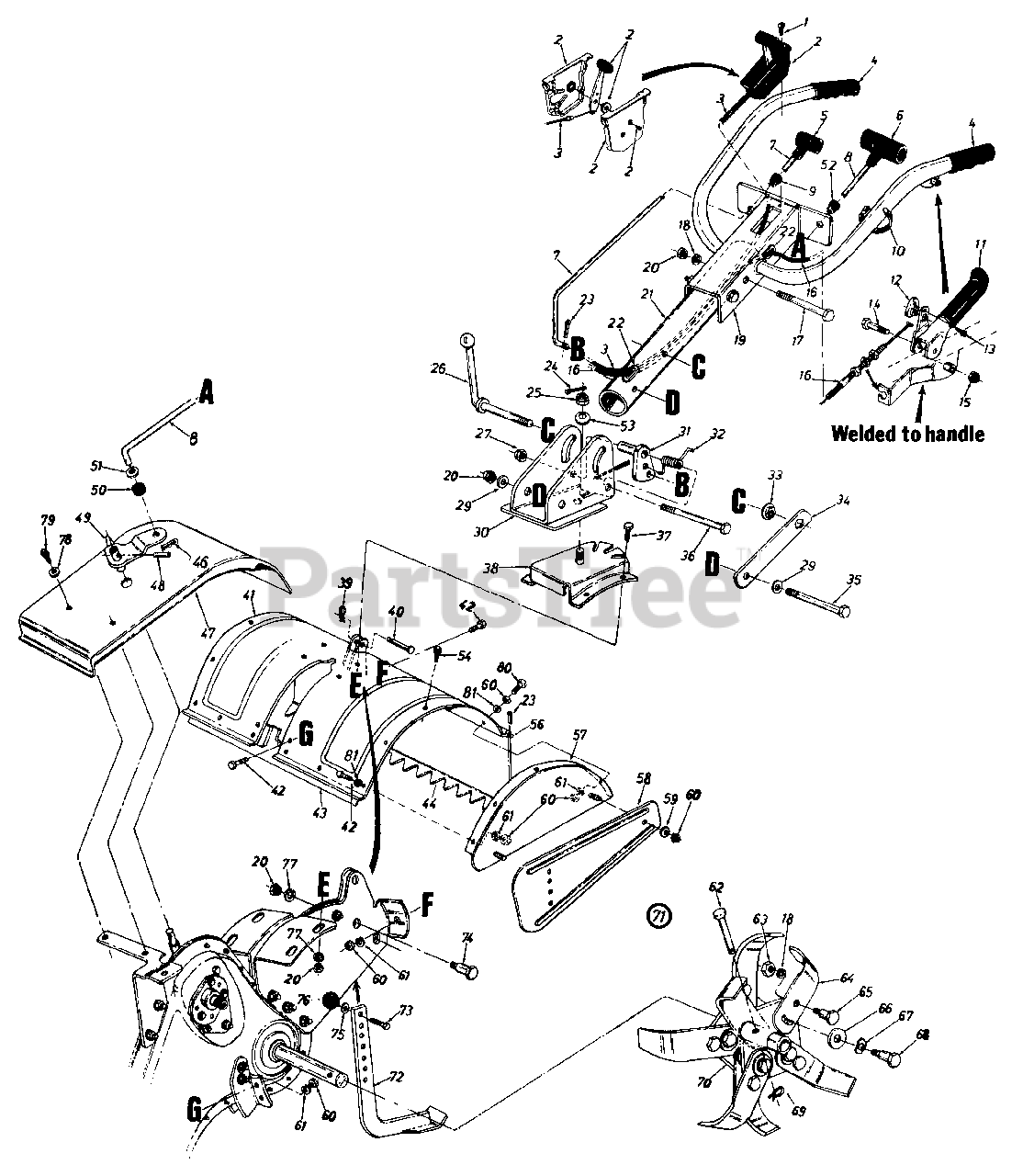

Rear Tine Tiller Parts Diagram

  • Title

1

White Outdoor 710-0779A

Truss Mach. AB-Tap. Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

2

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

3

White Outdoor 746-0514

Throttle Control Wire

$

$

Not available

4

White Outdoor 720-0180

Handle Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

5

White Outdoor 720-0210A

Small "T" Knob

$15.99

$

In Stock, only 2 left!

0

6

White Outdoor 720-0209

Large "T" Knob

$21.99

$

In Stock, only 1 left!

0

7

White Outdoor 747-0666

Clutch Rod

$25.99

$

Usually ships in 3-6 days

0

8

White Outdoor 747-0664

Control Rod 37" Lg.

$23.99

$

Usually ships in 3-6 days

0

9

White Outdoor 735-0228

Snap On Bushing 3/8" Dia.

$

$

Not available

10

White Outdoor 725-0157

Cable Tie-Self Clinching

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 784-0202B

Clutch Grip Ass'y. - L.H.
(Superseded to 684-04399A-0637)

Variations

White Outdoor 784-0202B-0637

Clutch Assembly Lever - POWDER BLACK (0637)

$33.99

$

In Stock, only 4 left!

0

$33.99

$

In Stock, only 4 left!

0

12

White Outdoor 746-0605

Barrel Cable Hold Down
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 7

0

14

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

15

White Outdoor 712-0262

Hex Jam L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 746-0908

Clutch Control Cable 46" Lg.
(Superseded to 946-0908)

$75.99

$

In Stock, Qty 15

0

17

White Outdoor 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

18

White Outdoor 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 6

0

19

White Outdoor 784-0185B

Handle Ass'y.
(Superseded to 649-0030-0638)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 784-0185B-0638

HANDLE ASSY W/THROTTLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0185B-0665

HANDLE ASSY W/THROTTLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

21

White Outdoor 784-0189

Handle Tubing Ass'y.

Variations

White Outdoor 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 784-0189-0498

TUBING ASSY HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0189-0637

TUBING ASSY HANDLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0189-0638

TUBING ASSY HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0189-0648

TUBING ASSY HANDLE - TECH GRAY (0648)

$

$

Not available

White Outdoor 784-0189-0650

TUBING ASSY HANDLE - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-0189-0662

TUBING ASSY HANDLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0189-0665

TUBING ASSY HANDLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-0189-0691

TUBING ASSY HANDLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

22

White Outdoor 735-0226

Rubber Grommet .66" I.D.

$10.99

$

Usually ships in 3-6 days

0

23

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

24

White Outdoor 714-3021

Cotter Pin 3/32" Dia. x 1.25" Lg.
(Superseded to 914-3021)

$

$

Not available

25

White Outdoor 712-0386A

Hex Slotted Nut 5/8-18 Thd.

$7.99

$

Usually ships in 3-6 days

0

26

White Outdoor 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

29

White Outdoor 736-0105

Bell-Wash. .4" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 784-0182

Handle Pivot Bracket
(Superseded to 684-0263A-0637)

$

$

Not available

31

White Outdoor 784-0183

Positioner Crank Ass'y.

$

$

Not available

32

White Outdoor 732-0493

Spring Handle Adj. (Torsion)

$16.99

$

Usually ships in 3-6 days

0

33

White Outdoor 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

34

White Outdoor 784-0191

Bracket Hex Nut Retainer

$7.49

$

Usually ships in 3-6 days

0

35

White Outdoor 710-0644

Hex Bolt 3/8-16 x 3.25" Lg.
(Superseded to 710-3130)

$10.99

$

In Stock, only 4 left!

0

36

White Outdoor 710-0521

Hex Bolt 3/8-16 x 3.00" Lg. - Gr. 8

$5.49

$

In Stock, Qty 11

0

37

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 784-0181A

Handle Positioner Brkt. Ass'y.
(Superseded to 686-0071)

Variations

White Outdoor 784-0181A-0480

BRACKET ASSY-POSITIONER - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 784-0181A-0483

BRACKET ASSY-POSITIONER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-0181A-0498

BRACKET ASSY-POSITIONER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0181A-0637

BRACKET ASSY-POSITIONER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0181A-0638

BRACKET ASSY-POSITIONER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0181A-0662

BRACKET ASSY-POSITIONER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0181A-0665

BRACKET ASSY-POSITIONER - YARDMAN GREEN (0665)

$

$

Not available

$

$

39

White Outdoor 714-0149B

Intern. Cotter Pin

$4.49

$

In Stock, Qty 18

0

40

White Outdoor 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 784-0156

Tine Shield 18"

Variations

White Outdoor 784-0156-0483

No Longer Available SHIELD-TINE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-0156-0498

No Longer Available SHIELD-TINE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0156-0499

No Longer Available SHIELD-TINE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 784-0156-0637

No Longer Available SHIELD-TINE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0156-0638

No Longer Available SHIELD-TINE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0156-0662

No Longer Available SHIELD-TINE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-0156-0665

No Longer Available SHIELD-TINE - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 784-0210

Bracket Reinforcement - 18"

$

$

Not available

44

White Outdoor 14979

Tine Shield Hinge Flap
(Superseded to 786-0113)

Variations

White Outdoor 14979-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0665

USE 786-0113-0665 0113A SHIE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 14979-0606

No Longer Available SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 14979-0662

No Longer Available SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

46

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 784-0208A

Shift Cover
(Superseded to 784-0208C)

Variations

White Outdoor 784-0208A-0637

USE 784-0208C COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0208A-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0208A-0648

USE 784-0208C COVER-SHIFT - TECH GRAY (0648)

$

$

Not available

White Outdoor 784-0208A-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

$

$

48

White Outdoor 715-0120

Spring Roll Pin 3/16" Dia.

$10.99

$

In Stock, only 1 left!

0

49

White Outdoor 784-0173

Shifting Crank Ass'y.

$

$

Not available

50

White Outdoor 735-0127

Rubber Washer .33" I.D.

$6.99

$

Usually ships in 3-6 days

0

51

White Outdoor 736-0133

Fl-Wash. .4" I.D. x 1.25" O.D.

$5.49

$

In Stock, Qty 7

0

52

White Outdoor 735-0227

Snap On Bushing 1/2" Dia.

$

$

Not available

53

White Outdoor 736-0317

Bell-Wash. .63" I.D. x 1.25"

$7.99

$

In Stock, Qty 20+

0

54

White Outdoor 710-0607

Hex Wash. Tap Scr.

$6.99

$

In Stock, Qty 9

0

56

White Outdoor 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

57

White Outdoor 784-0179

End Cover Ass'y.
(Superseded to 984-0179A-0637)

Variations

White Outdoor 784-0179-0498

COVER ASSY END - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0179-0637

COVER ASSY END - POWDER BLACK (0637)

$

$

Not available

$

$

58

White Outdoor 15390

Side Shield

Variations

White Outdoor 15390-0480

SHIELD-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 15390-0498

SHIELD-SIDE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 15390-0499

SHIELD-SIDE - CUB BEIGE (0499)

$

$

Not available

White Outdoor 15390-0629

SHIELD-SIDE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 15390-0637

SHIELD-SIDE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 15390-0638

SHIELD-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 15390-0648

SHIELD-SIDE - TECH GRAY (0648)

$

$

Not available

White Outdoor 15390-0662

SHIELD-SIDE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 15390-0665

SHIELD-SIDE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 15390-0674

SHIELD-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

59

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

61

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

White Outdoor 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

63

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

64

White Outdoor 742-0305

13" Dia. Articulating Tine
(Superseded to 742-0305A-0637)

Variations

White Outdoor 742-0305-0637

Articulating Tine, Black - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 20+

0

$20.99

$

In Stock, Qty 20+

0

65

White Outdoor 738-0689

Shld. Bolt 1/2" Dia. x .175
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

66

White Outdoor 736-0208

Fl-Wash. .51" I.D. x 1.50"

$4.49

$

In Stock, Qty 9

0

67

White Outdoor 736-0255

Bell-Wash. .515" l.D. x 1.14"

$4.99

$

In Stock, only 3 left!

0

68

White Outdoor 738-0688

Shld. Bolt 1/2" Dia. x .320
(Superseded to 938-0688)

$9.99

$

In Stock, Qty 15

0

69

White Outdoor 714-0149B

Intern. Cotter Pin

$4.49

$

In Stock, Qty 18

0

70

White Outdoor 784-0160

Tine Adapter Ass'y. 18"
(Superseded to 784-0160-0637)

Variations

White Outdoor 784-0160-0637

Tine Adapter Assembly, Black - POWDER BLACK (0637)

$115.99

$

In Stock, only 3 left!

0

$115.99

$

In Stock, only 3 left!

0

71

White Outdoor 784-0205

Tine Ass'y. Comp. 18"
(Superseded to 984-0205A-0637)

Variations

White Outdoor 784-0205-0637

Tine Assembly, Articulating - POWDER BLACK (0637)

$215.99

$

In Stock, only 2 left!

0

$215.99

$

In Stock, only 2 left!

0

72

White Outdoor 14992

Depth Bar Ass'y.
(Superseded to 786-0120-0637)

Variations

White Outdoor 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

73

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 14

0

74

White Outdoor 738-0148

Shld. Bolt 1/2" I.D. x .62" Lg.
(Superseded to 938-0148)

$16.99

$

Usually ships in 3-6 days

0

75

White Outdoor 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

76

White Outdoor 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

77

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

78

White Outdoor 736-0463

Fl-Wash. .281" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 710-0599

Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1 1/4" Lg.

$4.49

$

In Stock, Qty 19

0

81

UNKNOWN

$

$

Not available
