RB-55 (21A-393D790) - White Outdoor Roto Boss Front-Tine Tiller (2005) Drive Assembly Parts Diagram

Roto Boss Front-Tine Tiller

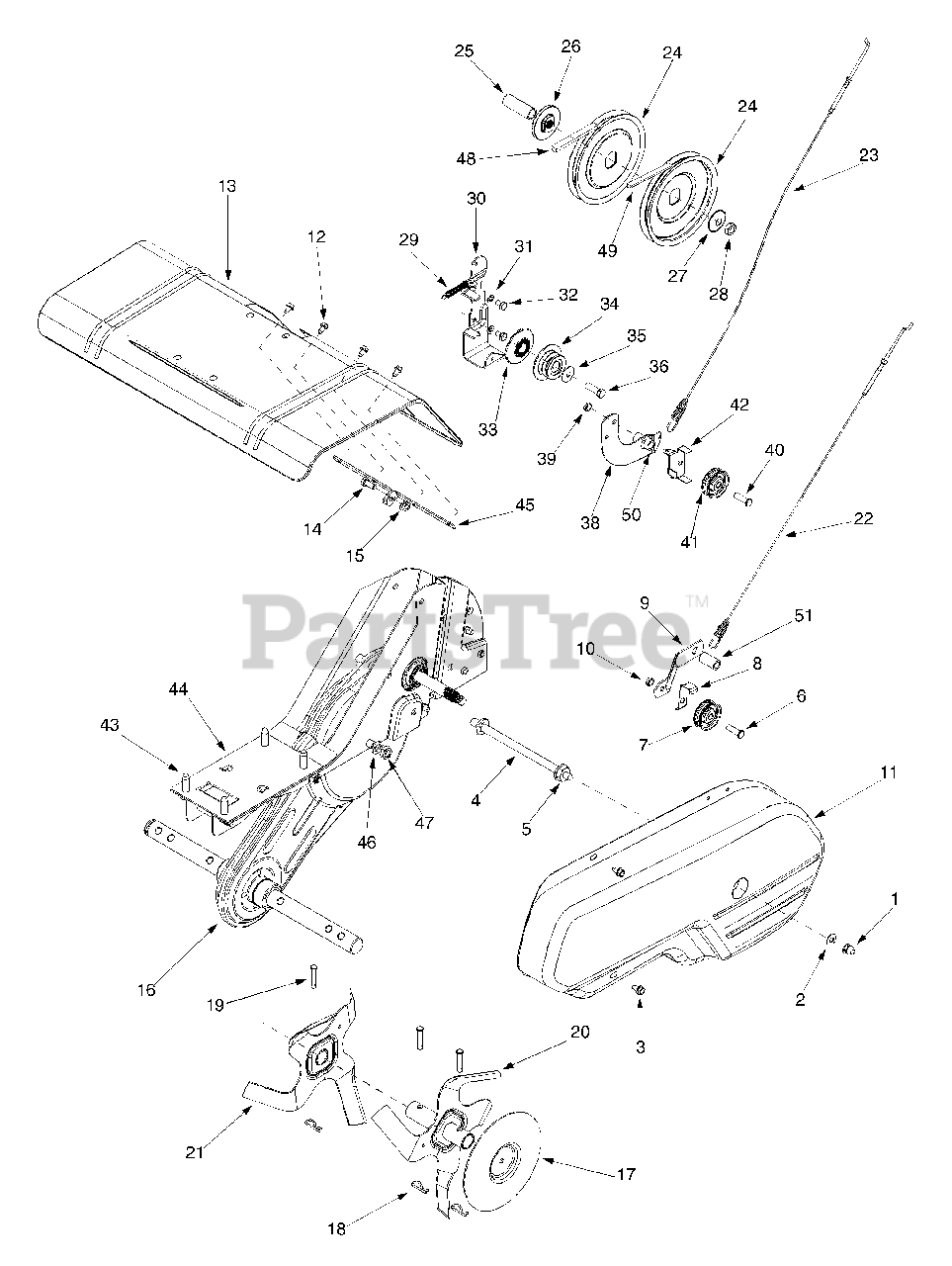

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 712-0392

Hex L-Stop nut 1/4-28

$6.99

$

In Stock, only 1 left!

0

2

White Outdoor 736-3020

Flat Wash. .266" I.D. x .625" O.D.

$6.99

$

In Stock, Qty 9

0

3

White Outdoor 710-0599

Hex Washer TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 711-0920

Belt Cover Bolt

$30.99

$

Usually ships in 3-6 days

0

5

White Outdoor 712-3004A

Hex Flange Top L-Nut 5/16-18 (Gr.5)

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0723

Hex Hd. Scr. 3/8-16 x 1.25" Lg. (Gr.5)

$4.99

$

In Stock, only 3 left!

0

7

White Outdoor 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

8

White Outdoor 786-0149

Idler Belt Keeper

$9.99

$

Usually ships in 3-6 days

0

9

White Outdoor 786-0144

Idler Bracket
(Superseded to 786-0144-0637)

Variations

White Outdoor 786-0144-0637

BRACKET-IDLER - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

10

White Outdoor 712-0266

Hex Cent. Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 786-0057

Belt Cover

Variations

White Outdoor 786-0057-0483

COVER BELT - CHARCOAL GRAY (0483)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-0498

COVER BELT - OLD CUB YELLOW (0498)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-0606

Belt Cover - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$99.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-0662

COVER BELT - OYSTER GRAY (0662)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-0665

COVER BELT - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-0691

COVER BELT - BLACK JACK (0691)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-0716

COVER BELT - CUB YELLOW-99 (0716)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-4021

COVER BELT - CUB YELLOW 2 (4021)

$92.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0057-4033

COVER BELT - FLINT MICA (4033)

$92.99

$

Usually ships in 3-6 days

0

$80.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 786-0043A

Tiner Shield

Variations

White Outdoor 786-0043A-0638

SHIELD-TINE EXPORT - MTD/TROY-BILT RED (0638)

$146.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-4021

SHIELD-TINE EXPORT - CUB YELLOW 2 (4021)

$146.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0606

SHIELD-TINE EXPORT - MAJESTIC ORANGE (0606)

$135.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0648

SHIELD-TINE EXPORT - TECH GRAY (0648)

$135.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0650

SHIELD-TINE EXPORT - RED METALLIC (0650)

$146.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0662

SHIELD-TINE EXPORT - OYSTER GRAY (0662)

$118.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0665

SHIELD-TINE EXPORT - YARDMAN GREEN (0665)

$118.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0691

SHIELD-TINE EXPORT - BLACK JACK (0691)

$146.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0716

SHIELD-TINE EXPORT - CUB YELLOW-99 (0716)

$146.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-0721

SHIELD-TINE EXPORT - SEARS RED (0721)

$146.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-4033

SHIELD-TINE EXPORT - FLINT MICA (4033)

$146.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0043A-4044

SHIELD-TINE EXPORT - CRAFTSMAN RED (4044)

$146.99

$

Usually ships in 3-6 days

0

$135.99

$

Usually ships in 3-6 days

0

14

White Outdoor 710-3008

Hex Hd. Cap Scr. 5/16-18 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-3004A

Hex Flange Top L-Nut 5/16-18 (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 686-0091

Chain Case Assembly Complete
(Superseded to 986-0091C)

$517.99

$

Usually ships in 3-6 days

0

17

White Outdoor 686-0106

Tine Disc Ends
(Superseded to 686-0106-0637)

Variations

White Outdoor 686-0106-0637

Disc Plate, Outer - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

18

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

19

White Outdoor 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 642-0023

Outer Tine Assembly L.H.
(Superseded to 642-0023-0637)

Variations

White Outdoor 642-0023-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 3 left!

0

$60.99

$

In Stock, only 3 left!

0

White Outdoor 642-0024

Outer Tine Assembly R.H.
(Superseded to 642-0024-0637)

Variations

White Outdoor 642-0024-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

21

White Outdoor 642-0003

Inner Tine Assembly L.H.
(Superseded to 642-0003-0637)

Variations

White Outdoor 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

White Outdoor 642-0002

Inner Tine Assembly R.H.
(Superseded to 642-0002-0637)

Variations

White Outdoor 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

22

White Outdoor 746-0918

Forward Clutch Cable
(Superseded to 946-0918)

$30.99

$

Usually ships in 3-6 days

0

23

White Outdoor 746-0953

Reverse Clutch Cable
(Superseded to 946-0953)

$31.99

$

In Stock, only 2 left!

0

24

White Outdoor 756-0585

Fl-Pulley 6" Dia.

$41.99

$

Usually ships in 3-6 days

0

25

White Outdoor 750-0892

Spacer .64" Dia. x 2.4" Lg.
(Superseded to 950-0892)

$11.99

$

Usually ships in 3-6 days

0

26

White Outdoor 748-0350

Pulley Mounting Adapter
(Superseded to 948-0350)

$21.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0112

Bell-Wash. .525" I.D. x 1.5" O.D.

$9.99

$

Usually ships in 3-6 days

0

28

White Outdoor 712-3029

Hex Jam Nut 1/2-20 Thd. (Gr. 5)

$6.99

$

In Stock, Qty 6

0

29

White Outdoor 732-0697

Return Spring

$10.99

$

In Stock, only 1 left!

0

30

White Outdoor 786-0040B

Reverse Bracket
(Superseded to 786-0040B-0637)

Variations

White Outdoor 786-0040B-0637

BRACKET-REVERSE MT - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 710-0107

Hex Bolt 5/16-24 x .5"

$3.49

$

Usually ships in 3-6 days

0

33

White Outdoor 756-0971

Inner Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

34

White Outdoor 756-0600

Outer Engine Pulley Half

$42.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0452

Bell Washer .396" I.D. x 1/14" O.D.

$4.99

$

In Stock, Qty 5

0

36

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25"

$4.99

$

In Stock, Qty 9

0

38

White Outdoor 686-0013

Reverse Arm Assembly

$43.99

$

Usually ships in 3-6 days

0

39

White Outdoor 712-0266

Hex Cent. Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 710-0723

Hex Cap Bolt 3/8-16 x 1.25" Lg. (Gr. 5)

$4.99

$

In Stock, only 3 left!

0

41

White Outdoor 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

42

White Outdoor 786-0041

Keeper Plate
(Superseded to 786-0041-0637)

Variations

White Outdoor 786-0041-0637

PLATE-KEEPER - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

43

White Outdoor 710-0502A

Hex L-Wash. TT-Tap 3/8-16 x 1.25"

$6.99

$

In Stock, only 2 left!

0

44

White Outdoor 786-0145A

Engine Plate

Variations

White Outdoor 786-0145A-4021

PLATE-ENGINE MOUNTING - CUB YELLOW 2 (4021)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0480

PLATE-ENGINE MOUNTING - BRILLIANT GREEN (0480)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0498

PLATE-ENGINE MOUNTING - OLD CUB YELLOW (0498)

$22.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0606

PLATE-ENGINE MOUNTING - MAJESTIC ORANGE (0606)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0637

PLATE-ENGINE MOUNTING - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0638

PLATE-ENGINE MOUNTING - MTD/TROY-BILT RED (0638)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0662

PLATE-ENGINE MOUNTING - OYSTER GRAY (0662)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0665

PLATE-ENGINE MOUNTING - YARDMAN GREEN (0665)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0691

PLATE-ENGINE MOUNTING - BLACK JACK (0691)

$20.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-0716

PLATE-ENGINE MOUNTING - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-4033

PLATE-ENGINE MOUNTING - FLINT MICA (4033)

$17.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0145A-4044

PLATE-ENGINE MOUNTING - CRAFTSMAN RED (4044)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

45

White Outdoor 786-0053

Tine Shield Bracket
(Superseded to 786-0053-0637)

Variations

White Outdoor 786-0053-0637

Tine Shield Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

46

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

47

White Outdoor 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 754-0428

V-Belt (Forward)
(Superseded to 954-0428)

$34.99

$

In Stock, only 1 left!

0

49

White Outdoor 754-0429

V-Belt (Reverse)
(Superseded to 954-0429)

$28.99

$

In Stock, only 3 left!

0

50

White Outdoor 738-0102

Shld. Bolt

$9.99

$

In Stock, Qty 10

0

51

White Outdoor 738-0930

Shld. Bolt

$6.99

$

In Stock, only 1 left!

0
