RB-530 (21A-414B190) - White Outdoor Roto Boss Tiller (1999) Handles And Tine Shield Parts Diagram

Roto Boss Tiller

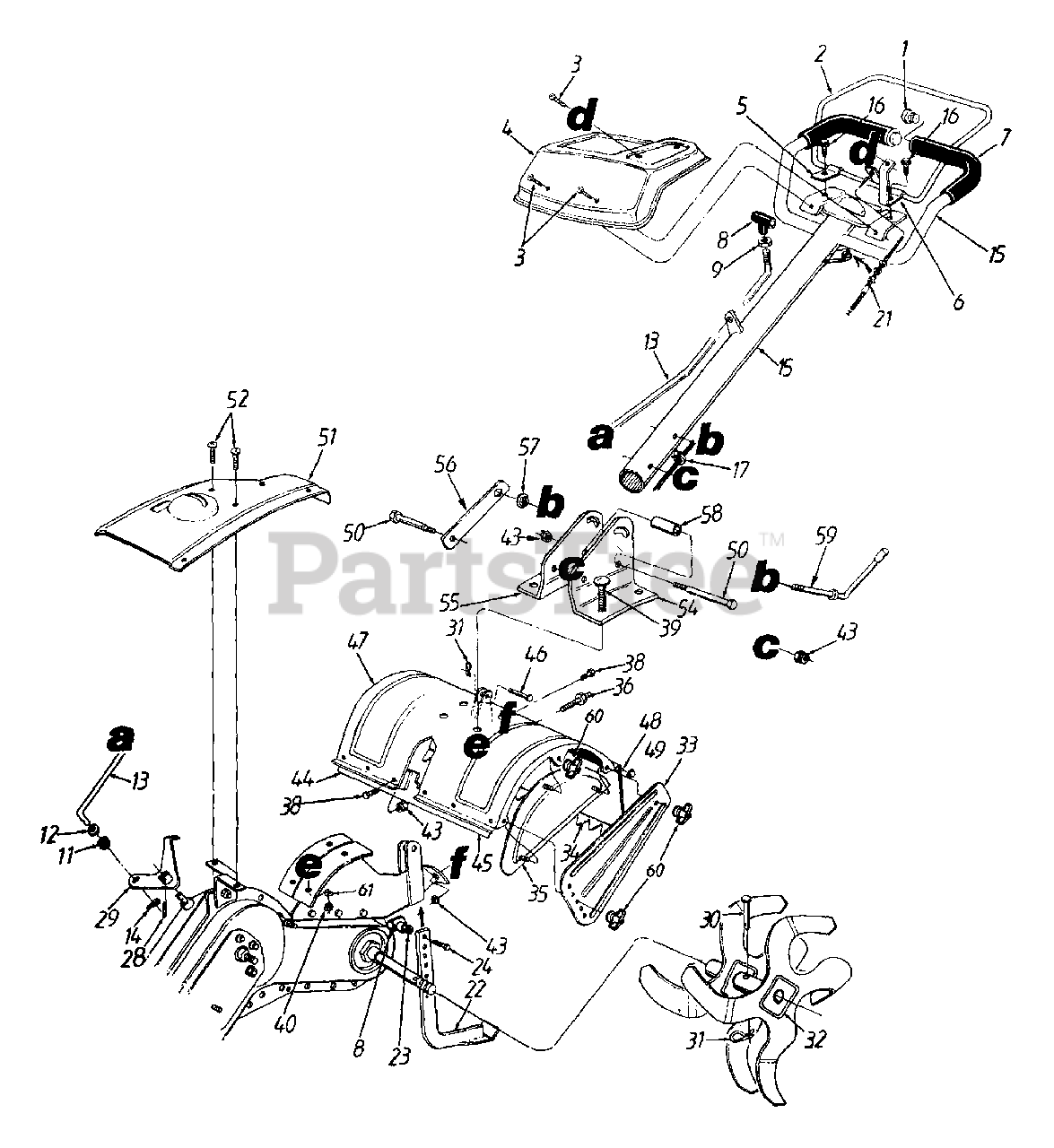

Handles And Tine Shield Parts Diagram

  • Title

1

White Outdoor 735-0246

Vinyl End Plug
(Superseded to 735-0246A)

$5.99

$

In Stock, only 2 left!

0

2

White Outdoor 647-0014

Clutch Control Ass'y.

Variations

White Outdoor 647-0014-0483

CONTROL ASSY-CLUTCH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 647-0014-0498

CONTROL ASSY-CLUTCH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 647-0014-0637

CONTROL ASSY-CLUTCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 647-0014-0638

CONTROL ASSY-CLUTC - MTD/TROY-BILT RED (0638)

$

$

Not available

$82.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

4

White Outdoor 786-0131

Handle Cover

Variations

White Outdoor 786-0131-0480

COVER-HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 786-0131-0637

COVER-HANDLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 786-0131-0638

COVER-HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0131-0650

COVER-HANDLE - RED METALLIC (0650)

$

$

Not available

White Outdoor 786-0131-0662

COVER-HANDLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 786-0131-0665

COVER-HANDLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 786-0131-0686

COVER-HANDLE - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

5

White Outdoor 786-0098

Retaining Brkt. - R.H.
(Superseded to 786-0098-0637)

Variations

White Outdoor 786-0098-0637

BRACKET RETAINING - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

6

White Outdoor 786-0118

Retaining Brkt. - L.H.
(Superseded to 786-0118-0637)

Variations

White Outdoor 786-0118-0637

BRACKET RETAINING - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

7

White Outdoor 720-0278

Grip
(Superseded to 720-0278A)

Note: (2 Req'd.)

$22.99

$

In Stock, only 3 left!

0

8

White Outdoor 720-0210A

Knob

$15.99

$

In Stock, only 2 left!

0

9

White Outdoor 712-3008

Hex Jam Nut 3/8-16 Thd.

$4.99

$

In Stock, Qty 16

0

11

White Outdoor 735-0127

Rubber Washer

$6.99

$

Usually ships in 3-6 days

0

12

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .6" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 747-0902

Gear Shift Rod

$

$

Not available

14

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 649-0017

Handle Ass'y.

Variations

White Outdoor 649-0017-0638

HANDLE ASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 649-0017-0648

HANDLE ASSY - TECH GRAY (0648)

$

$

Not available

White Outdoor 649-0017-0650

HANDLE ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 649-0017-0665

HANDLE ASSY - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 649-0017-0667

HANDLE ASSY - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

16

White Outdoor 710-0896

Tap Scr. 1/4-14 x 5/8" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 726-0330

Cable Clip

$

$

Not available

21

White Outdoor 746-0916

Clutch Cable
(Superseded to 946-0916)

$57.99

$

In Stock, only 2 left!

0

22

White Outdoor 786-0120

Depth Bar
(Superseded to 786-0120-0637)

Variations

White Outdoor 786-0120-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

23

White Outdoor 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

24

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 715-0120

Spiral Pin 3/16" x 1"

$10.99

$

In Stock, only 1 left!

0

29

White Outdoor 686-0095

Shift Crank Ass'y.

Variations

White Outdoor 686-0095-0637

SHIFT ASSY-CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 714-0149B

Hairpin Clip

$4.49

$

In Stock, Qty 18

0

32

White Outdoor 642-0015

Tine Ass'y. - L.H.
(Superseded to 642-0015-0637)

Variations

White Outdoor 642-0015-0637

Tine Assembly, LH Black - POWDER BLACK (0637)

$164.99

$

In Stock, Qty 5

0

$164.99

$

In Stock, Qty 5

0

White Outdoor 642-0016

Tine Ass'y. - R.H.
(Superseded to 642-0016-0637)

Note: (Not Shown)

Variations

White Outdoor 642-0016-0637

Tine Assembly, RH Black - POWDER BLACK (0637)

$164.99

$

In Stock, Qty 6

0

$164.99

$

In Stock, Qty 6

0

33

White Outdoor 786-0090

Side Shield
(Superseded to 786-0090A)

Variations

White Outdoor 786-0090-0480

SHIELD-SIDE - BRILLIANT GREEN (0480)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0483

SHIELD-SIDE - CHARCOAL GRAY (0483)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0637

SHIELD-SIDE - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0638

SHIELD-SIDE - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0648

SHIELD-SIDE - TECH GRAY (0648)

$29.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0650

SHIELD-SIDE - RED METALLIC (0650)

$33.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0662

SHIELD-SIDE - OYSTER GRAY (0662)

$33.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0665

SHIELD-SIDE - YARDMAN GREEN (0665)

$29.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-4015

SHIELD-SIDE - FIRE RED (4015)

$33.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0090-0629

SHIELD-SIDE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 786-0090-0709

No Longer Available SHIELD-SIDE - MASTERCRAFT GREEN (0709)

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0

34

White Outdoor 786-0113

Rear Tine Shield

Variations

White Outdoor 786-0113-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0113-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0113-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0113-0650

SHIELD-REAR TINE - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0113-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0113-0709

SHIELD-REAR TINE - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0113-0606

No Longer Available SHIELD-TINE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 786-0113-0662

No Longer Available SHIELD-TINE - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

35

White Outdoor 686-0044A

End Cover Ass'y.
(Superseded to 686-0044B)

Variations

White Outdoor 686-0044A-0638

COVER ASSY-END - MTD/TROY-BILT RED (0638)

$84.99

$

Usually ships in 3-6 days

0

White Outdoor 686-0044A-0709

COVER ASSY-END - MASTERCRAFT GREEN (0709)

$78.99

$

Usually ships in 3-6 days

0

White Outdoor 686-0044A-0480

COVER ASSY-END - BRILLIANT GREEN (0480)

$84.99

$

Usually ships in 3-6 days

0

White Outdoor 686-0044A-0483

COVER ASSY - CHARCOAL GRAY (0483)

$84.99

$

Usually ships in 3-6 days

0

White Outdoor 686-0044A-0637

COVER ASSY-END - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

White Outdoor 686-0044A-0648

COVER ASSY - TECH GRAY (0648)

$78.99

$

Usually ships in 3-6 days

0

White Outdoor 686-0044A-0650

COVER ASSY - RED METALLIC (0650)

$78.99

$

Usually ships in 3-6 days

0

White Outdoor 686-0044A-0662

COVER ASSY-END - OYSTER GRAY (0662)

$84.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

36

White Outdoor 738-0849

Hex Cap Bolt 5/16-18 x 1.25"
(Superseded to 938-0849)

$10.99

$

Usually ships in 3-6 days

0

38

White Outdoor 710-0376

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 710-3097

Carriage Bolt 3/8-16 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

40

White Outdoor 712-0798

Hex Ins. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

43

White Outdoor 712-3004A

Hex Flange Top L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 786-0076

Tine Shield Brkt. - R.H.
(Superseded to 786-0076-0637)

Variations

White Outdoor 786-0076-0637

BRACKET-SHIELD TIN - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

45

White Outdoor 786-0077

Tine Shield Brkt. - L.H.
(Superseded to 786-0077-0637)

Variations

White Outdoor 786-0077-0637

BRACKET-SHIELD TIN - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

46

White Outdoor 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

47

White Outdoor 786-0085

Tine Shield
(Superseded to 786-0085A)

Variations

White Outdoor 786-0085-0480

SHIELD-TINE 410 - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 786-0085-0637

SHIELD-TINE 410 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 786-0085-0638

SHIELD-TINE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0085-0648

Tine Shield - TECH GRAY (0648)

$

$

Not available

White Outdoor 786-0085-0650

SHIELD-TINE 410 - RED METALLIC (0650)

$

$

Not available

White Outdoor 786-0085-0662

No Longer Available SHIELD-TINE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 786-0085-0665

SHIELD-TINE - YARDMAN GREEN (0665)

$

$

Not available

$

$

48

White Outdoor 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

49

White Outdoor 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

50

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

51

White Outdoor 786-0101A

Shift Cover
(Superseded to 786-0101B)

Note: (For models 410, 412 & 422)

Variations

White Outdoor 786-0101A-0637

COVER-SHIFT - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0101A-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0101A-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

$63.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0168

Shift Cover

Note: (For models 415 & 417)

Variations

White Outdoor 786-0168-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0168-0667

COVER-SHIFT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

52

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x

$8.49

$

In Stock, Qty 9

0

54

White Outdoor 786-0109

Handle Brkt. - L.H.

Variations

White Outdoor 786-0109-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 786-0109-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0109-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

55

White Outdoor 786-0108

Handle Brkt. - R.H.

Variations

White Outdoor 786-0108-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 786-0108-0638

BRACKET HANDLE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0108-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

White Outdoor 786-0108-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

56

White Outdoor 784-0191

Hex Nut Retainer Brkt.

$7.49

$

Usually ships in 3-6 days

0

57

White Outdoor 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

58

White Outdoor 750-0885

Spacer .322 Dia.
(Superseded to 750-0885A)

$11.99

$

Usually ships in 3-6 days

0

59

White Outdoor 784-0190

Handle Adjustment Crank

$24.99

$

Usually ships in 3-6 days

0

60

White Outdoor 712-0421

Knob 5/16-18 Thd.

$6.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0169

L-Washer 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0
