RB-530 (21A-414B190) - White Outdoor Roto Boss Tiller (1999) Gear Case Assembly Parts Diagram

Roto Boss Tiller

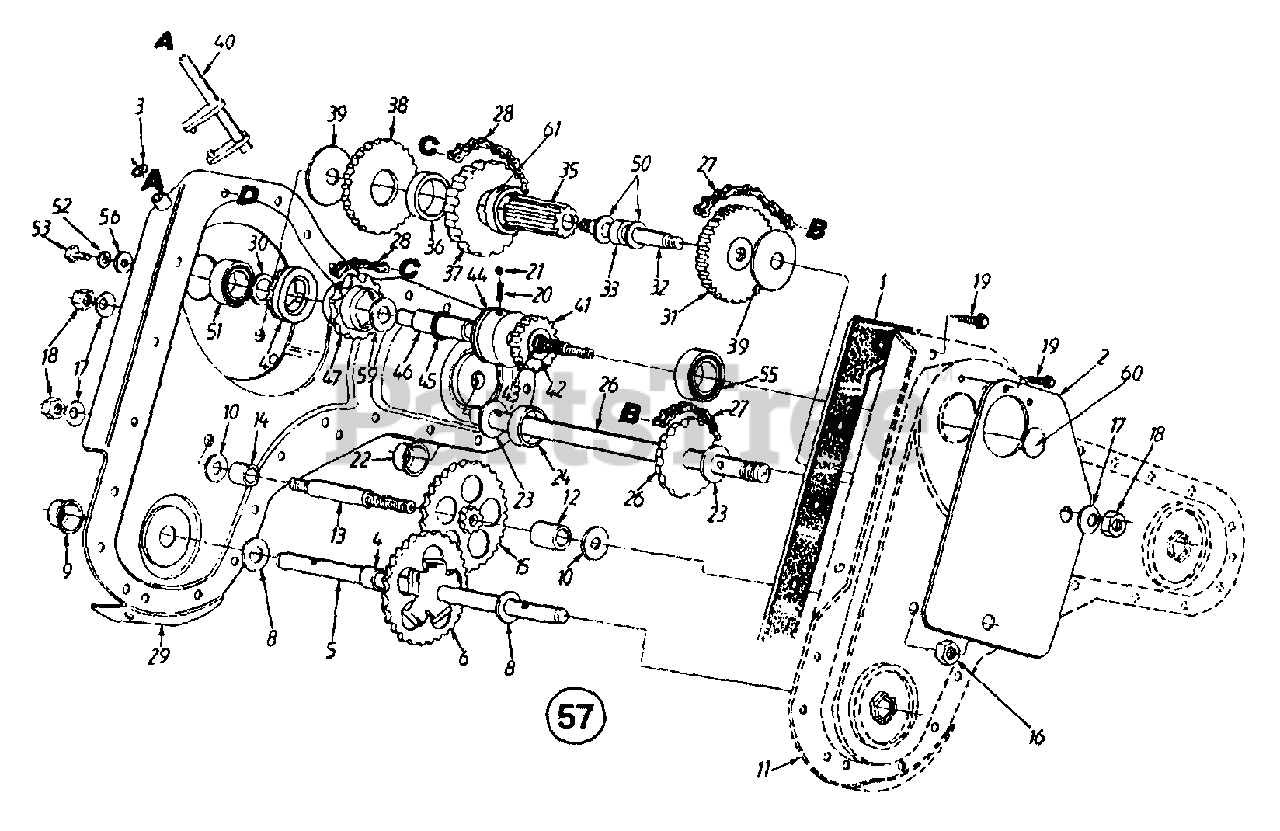

Gear Case Assembly Parts Diagram

  • Title

1

White Outdoor 721-0295

Chain Case Gasket
(Superseded to 721P0295)

$

$

Not available

2

White Outdoor 786-0086

Reinforcement Plate
(Superseded to 786-0086-0637)

Variations

White Outdoor 786-0086-0637

PLATE REINFORCEMEN - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

3

White Outdoor 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 750-0938

Spacer .735" I.D. x .886" O.D.
(Superseded to 950-0938)

$

$

Not available

5

White Outdoor 611-0058

Wheel Shaft
(Superseded to 753-05577)

$

$

Not available

6

White Outdoor 717-1458

Spur Gear 46T

$171.99

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0351

Fl-Wash .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 721-0379

Shaft Seal

$18.99

$

In Stock, only 2 left!

0

10

White Outdoor 736-0518

Thr. Wash. .445 I.D. x 1.92 O.D. x

$10.99

$

Usually ships in 3-6 days

0

11

White Outdoor 686-0039

Gear Case Ass'y. Half - L.H.
(Superseded to 986-0039-0637)

Variations

White Outdoor 686-0039-0637

GEAR CASE ASSEMBLY LH - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 750-0935

Spacer .635" I.D. x 1" O.D. x .78

$7.99

$

Usually ships in 3-6 days

0

13

White Outdoor 738-0885

Jack Shaft 2.06" Lg.

$

$

Not available

14

White Outdoor 750-0936

Spacer .635" I.D. x 1" O.D. x .37" Thk.
(Superseded to 950-0936)

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 617-0004

Gear Idler Ass'y.
(Superseded to 917-0004)

$165.99

$

Usually ships in 3-6 days

0

16

White Outdoor 712-3067

Hex Patch L-Nut 7/16-20 Thd.

$6.49

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0407

Bell-Wash. .45" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 12

0

18

White Outdoor 712-0378

Hex Nut 7/16-20 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 710-0896

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 732-0863

Spring Detent
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

21

White Outdoor 741-0862

Ball Detent

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 721-0378

Shaft Seal
(Superseded to 921-0378)

$18.99

$

In Stock, only 2 left!

0

23

White Outdoor 736-0163

Thrust Wash. 1.03" I.D. x 1.62"

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 750-0570

Spacer 1" I.D. x 2" O.D. x .5" Thk.
(Superseded to 950-0570)

$10.99

$

In Stock, only 4 left!

0

26

White Outdoor 611-0021

Tine Shaft Ass'y.
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

27

White Outdoor 713-0226

Chain #50 5/8" Pitch x 52 Links - Endless
(Superseded to 913-0226)

$102.99

$

Usually ships in 3-6 days

0

28

White Outdoor 713-0233

Chain - #41 1/2" Pitch x 30 Links - Endless

$41.99

$

Usually ships in 3-6 days

0

29

White Outdoor 686-0038

Gear Case Ass'y. Half - R.H.

Variations

White Outdoor 686-0038-0637

GEAR CASE ASSEMBLY RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 686-0038-0638

GEAR CASE ASSEMBLY RH - MTD/TROY-BILT RED (0638)

$

$

Not available

$214.99

$

In Stock, only 1 left!

0

30

White Outdoor 736-0541

Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
(Superseded to 936-0541)

$

$

Not available

31

White Outdoor 617-0002

Gear and Sprocket Ass'y.
(Superseded to 917-0003)

$

$

Not available

32

White Outdoor 738-0884

Jack Shaft 5" Lg.

$

$

Not available

33

White Outdoor 750-0931

Spacer .636" I.D. x .86" O.D.

$

$

Not available

35

White Outdoor 717-1411

Spur Gear 10T
(Superseded to 917-1411)

$32.99

$

Usually ships in 3-6 days

0

36

White Outdoor 750-0930

Spacer 1.5" I.D. x 1.76" O.D.
(Superseded to 950-0930)

$8.99

$

Usually ships in 3-6 days

0

37

White Outdoor 713-0436

Sprocket - #41 Chain

$

$

Not available

38

White Outdoor 717-1405

Reverse Gear 46T

$

$

Not available

39

White Outdoor 736-0518

Thrust Wash. .445" I.D. x 1.92"

$10.99

$

Usually ships in 3-6 days

0

40

White Outdoor 618-0245B

Shifter Ass'y.

$129.99

$

In Stock, only 3 left!

0

41

White Outdoor 717-1409

Spur Gear 17T

$21.99

$

In Stock, only 1 left!

0

42

White Outdoor 736-0442

Fl-Wash. .69" I.D. x 1.06" O.D.
(Superseded to 736-05031)

$3.49

$

Usually ships in 3-6 days

0

43

White Outdoor 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

44

White Outdoor 718-0234

Clutch Collar

$51.99

$

In Stock, only 2 left!

0

45

White Outdoor 716-0235

Retaining Ring .875" Shaft
(Superseded to 916-0235)

$10.99

$

Usually ships in 3-6 days

0

46

White Outdoor 711-1087

Drive Shaft

$209.99

$

Usually ships in 3-6 days

0

47

White Outdoor 713-0435

Sprocket 11T

$21.99

$

In Stock, only 2 left!

0

49

White Outdoor 717-1451A

Spur Gear 16T

$29.99

$

Usually ships in 3-6 days

0

50

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x 1" O.D.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

51

White Outdoor 741-0124

Ball Bearing .669" I.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

52

White Outdoor 736-0329

L-Wash. 3/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

53

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

56

White Outdoor 736-0512

Fl-Wash. .281" I.D. x .875" O.D.

$4.49

$

Usually ships in 3-6 days

0

57

White Outdoor 686-0094

Gear Case Ass'y. Comp.
(Superseded to 753-05328)

$

$

Not available

?58

White Outdoor 718-0237

Key - Drive Shaft
(Superseded to 918-0237)

Note: (Not Shown)

$

$

Not available

59

White Outdoor 736-0265

Fl-Wash. 88" I.D. x 1.5" O.D.

$

$

Not available

60

White Outdoor 726-0331

Button Plug

$

$

Not available

61

White Outdoor 750-0987

Spacer 1.52" I.D.
(Superseded to 950-0987)

$

$

Not available

White Outdoor 737-0300

Grease
(Superseded to 737-0300A)

Note: (40 oz. Req'd.)

$34.99

$

In Stock, Qty 20+

0
