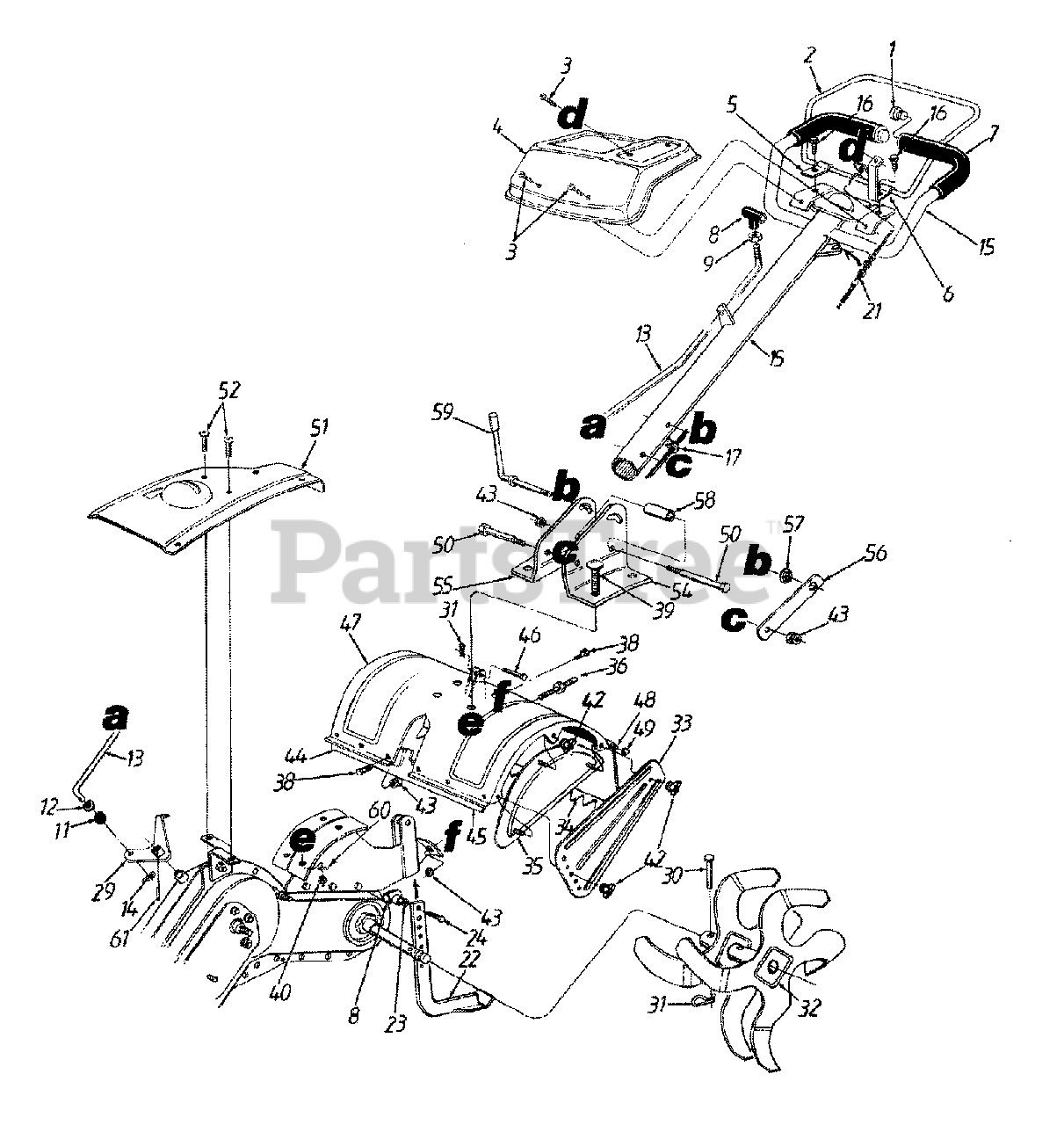

RB-530 (21A-400-190) - White Outdoor Roto Boss Tiller (1997) Handle, Tine Shield, Blades And Labels Parts Diagram

Roto Boss Tiller

Handle, Tine Shield, Blades And Labels Parts Diagram

  • Title

1

White Outdoor 735-0246

Vinyl End Plug
(Superseded to 735-0246A)

$5.99

$

In Stock, only 1 left!

0

2

White Outdoor 647-0014

Clutch Control Ass'y.

Variations

White Outdoor 647-0014-0483

CONTROL ASSY-CLUTCH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 647-0014-0498

CONTROL ASSY-CLUTCH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 647-0014-0637

CONTROL ASSY-CLUTCH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 647-0014-0638

CONTROL ASSY-CLUTC - MTD/TROY-BILT RED (0638)

$

$

Not available

$82.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

4

White Outdoor 786-0131-0662

Handle Cover

$

$

Not available

5

White Outdoor 786-0098

Retaining Brkt. - R.H.
(Superseded to 786-0098-0637)

Variations

White Outdoor 786-0098-0637

BRACKET RETAINING - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

6

White Outdoor 786-0118

Retaining Brkt. - L.H.
(Superseded to 786-0118-0637)

Variations

White Outdoor 786-0118-0637

BRACKET RETAINING - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

7

White Outdoor 720-0278

Grip
(Superseded to 720-0278A)

$22.99

$

In Stock, only 3 left!

0

8

White Outdoor 720-0210A

Knob

$15.99

$

In Stock, only 2 left!

0

9

White Outdoor 712-3008

Hex Jam Nut 3/8-16 Thd.

$4.99

$

In Stock, Qty 16

0

11

White Outdoor 735-0127

Rubber Washer

$6.99

$

Usually ships in 3-6 days

0

12

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .6" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 747-0902

Gear Shift Rod

$

$

Not available

14

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 649-0023-0648

Handle Ass'y.

$

$

Not available

16

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 726-0330

Cable Clip

$

$

Not available

21

White Outdoor 746-0916

Clutch Cable
(Superseded to 946-0916)

$57.99

$

Usually ships in 3-6 days

0

22

White Outdoor 786-0120

Depth Bar
(Superseded to 786-0120-0637)

Variations

White Outdoor 786-0120-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

23

White Outdoor 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

24

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 686-0095

Shift Brkt.

Variations

White Outdoor 686-0095-0637

SHIFT ASSY-CRANK - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 714-0149B

Hairpin Clip

$4.49

$

In Stock, Qty 18

0

32

White Outdoor 642-0015

Tine Ass'y. - L.H.
(Superseded to 642-0015-0637)

Variations

White Outdoor 642-0015-0637

Tine Assembly, LH Black - POWDER BLACK (0637)

$164.99

$

In Stock, Qty 5

0

$164.99

$

In Stock, Qty 5

0

White Outdoor 642-0016

Tine Ass'y. - R.H.
(Superseded to 642-0016-0637)

Note: (Not shown)

Variations

White Outdoor 642-0016-0637

Tine Assembly, RH Black - POWDER BLACK (0637)

$164.99

$

In Stock, Qty 6

0

$164.99

$

In Stock, Qty 6

0

33

White Outdoor 786-0090-0648

Side Shield
(Superseded to 786-0090A-0648)

$29.99

$

Usually ships in 3-6 days

0

34

786-0113-0648

Rear Tine Shield

$

$

Not available

35

White Outdoor 686-0044A-0648

End Cover Ass'y.
(Superseded to 686-0044B-0648)

$78.99

$

Usually ships in 3-6 days

0

36

White Outdoor 738-0849

Hex Bolt 5/16-18 x 1" Lg.
(Superseded to 938-0849)

$10.99

$

Usually ships in 3-6 days

0

38

White Outdoor 710-3002

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 710-3097

Carriage Bolt 3/8-16 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

40

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

42

White Outdoor 712-0421

Wing Nut 5/16-18 Thd.

$6.99

$

In Stock, Qty 20+

0

43

White Outdoor 712-3004A

Hex Flange Top L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 786-0076

Tine Shield Brkt. - R.H.
(Superseded to 786-0076-0637)

Variations

White Outdoor 786-0076-0637

BRACKET-SHIELD TIN - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

45

White Outdoor 786-0077

Tine Shield Brkt. - L.H.
(Superseded to 786-0077-0637)

Variations

White Outdoor 786-0077-0637

BRACKET-SHIELD TIN - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

46

White Outdoor 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

47

White Outdoor 786-0085-0648

Tine Shield

$

$

Not available

48

White Outdoor 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

49

White Outdoor 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

50

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

51

White Outdoor 786-0101A

Shift Cover
(Superseded to 786-0101B)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 786-0101A-0637

COVER-SHIFT - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0101A-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0101A-0662

COVER-SHIFT - OYSTER GRAY (0662)

$

$

Not available

$63.99

$

Usually ships in 3-6 days

0

52

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .6"

$8.49

$

In Stock, Qty 9

0

54

786-0109-0648

Handle Brkt. - L.H.

$

$

Not available

55

786-0108-0648

Handle Brkt. - R.H.

$

$

Not available

56

White Outdoor 784-0191

Hex Nut Retainer Brkt.

$7.49

$

Usually ships in 3-6 days

0

57

White Outdoor 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

58

White Outdoor 750-0885

Spacer .322 Dia.
(Superseded to 750-0885A)

$11.99

$

Usually ships in 3-6 days

0

59

White Outdoor 784-0190

Handle Adjustment Crank

$24.99

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 715-0120

Spiral Pin 1" Lg.

$10.99

$

In Stock, only 1 left!

0

White Outdoor 777-4732

Label - Roto Boss "530" - Side of Engine

$

$

Not available

White Outdoor 777-4730

Label - Handle Panel

$

$

Not available

777-4731

Label - Belt Guard

$

$

Not available
