RB-530 (21A-400-190) - White Outdoor Roto Boss Tiller (1997) Engine, Wheel Ass'y, Belts And Pulleys Parts Diagram

Roto Boss Tiller

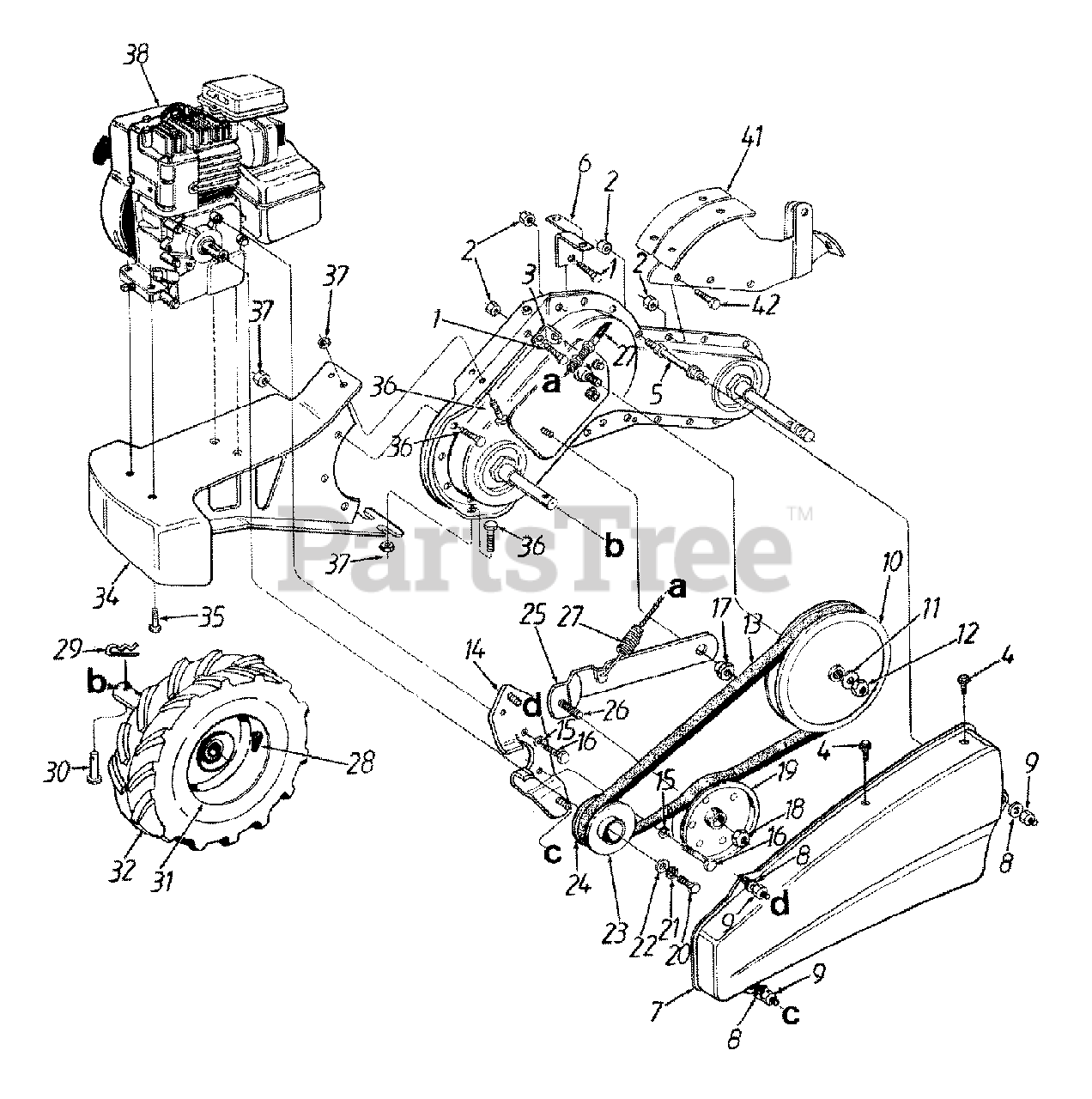

Engine, Wheel Ass'y, Belts And Pulleys Parts Diagram

  • Title

1

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 712-3004A

Hex Flange Top L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 786-0107

Cable Mtg. Bracket

$

$

Not available

4

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .6" Lg.

$8.49

$

In Stock, Qty 9

0

5

White Outdoor 738-0899

Belt Cover Bolt

$

$

Not available

6

White Outdoor 786-0117

Shift Cover Bracket

Variations

White Outdoor 786-0117-0637

BRACKET COVER-SHIF - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 786-0100-0662

Belt Cover

$

$

Not available

8

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0392

Hex Cap Nut 1/4-28 Thd.

$6.99

$

In Stock, only 1 left!

0

10

White Outdoor 756-0634

Flat Pulley 8" O.D.

$86.99

$

Usually ships in 3-6 days

0

11

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0379

Hex Flange L-Nut 3/8-16 Thd.

$4.99

$

Usually ships in 3-6 days

0

13

White Outdoor 754-0438

"V"-Belt
(Superseded to 954-0438)

$53.99

$

In Stock, only 1 left!

0

14

White Outdoor 686-0031

Belt Keeper Brkt.
(Superseded to 686-0031A-0637)

Variations

White Outdoor 686-0031-0637

Belt Keeper Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

17

White Outdoor 738-0876

Shld. Nut
(Superseded to 738-0876A)

$10.99

$

In Stock, Qty 15

0

18

White Outdoor 712-0266

Hex Jam L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 756-0405

Fl-Idler w/Flanges

$71.99

$

Usually ships in 3-6 days

0

20

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 6

0

22

White Outdoor 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

23

White Outdoor 756-0972

Outer Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

24

White Outdoor 756-0971

Inner Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

25

White Outdoor 786-0080

Idler Bracket
(Superseded to 786-0080-0637)

Variations

White Outdoor 786-0080-0637

BRACKET-IDLER - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

26

White Outdoor 710-0723

Hex Bolt 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

27

White Outdoor 746-0916

Clutch Cable
(Superseded to 946-0916)

$57.99

$

In Stock, only 2 left!

0

28

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 711-1017

Clevis Pin

$7.49

$

In Stock, only 1 left!

0

31

White Outdoor 634-0108-0662

Rim Only

$

$

Not available

32

White Outdoor 634-0106

Wheel Ass'y. Comp. - R.H.

Variations

White Outdoor 634-0106-0931

WHEEL ASM COMPL 16 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0106-0911

WHEEL ASM COMP-RH - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0106-0912

WHEEL ASM COMP-RH - Dico Gray (0912)

$

$

Not available

White Outdoor 634-0106-0941

WHEEL ASM COMP-RH - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0106-0942

WHEEL ASM COMP-RH - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 634-0107

Wheel Ass'y. Comp. - L.H.

Variations

White Outdoor 634-0107-0931

WHEEL ASM COMPL 16 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 634-0107-0911

WHEEL ASM COMP-LH - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0107-0912

WHEEL ASM COMP-LH - Dico Gray (0912)

$

$

Not available

White Outdoor 634-0107-0941

WHEEL ASM COMP-LH - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 634-0107-0942

WHEEL ASM COMP-LH - Dico Yellow (0942)

$

$

Not available

$

$

White Outdoor 734-0808

Tire Only
(Superseded to 734-0808A)

Variations

White Outdoor 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$123.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$123.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$123.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

34

White Outdoor 619-0009

Frame Counterweight
(Superseded to 919-0009A)

$

$

Not available

35

White Outdoor 710-1007

Hex L-Wash. TT-Tap Scr. 3/8-16 Thd.

$6.49

$

Usually ships in 3-6 days

0

36

White Outdoor 710-3002

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

38

Engine

$

$

Not available

41

White Outdoor 686-0043A

Tine Shield Brkt. Ass'y.

Variations

White Outdoor 686-0043A-0480

BRACKET ASSY TINE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 686-0043A-0637

BRACKET ASSY TINE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 686-0043A-0648

BRACKET ASSY TINE - TECH GRAY (0648)

$

$

Not available

$

$

42

White Outdoor 710-3038

Hex Bolt 5/16-18 x 7/8" Lg.

$4.99

$

In Stock, only 3 left!

0
