RB-530 (217-403-190) - White Outdoor Roto Boss Tiller (1987) Handle & Frame Assembly Parts Diagram

Roto Boss Tiller

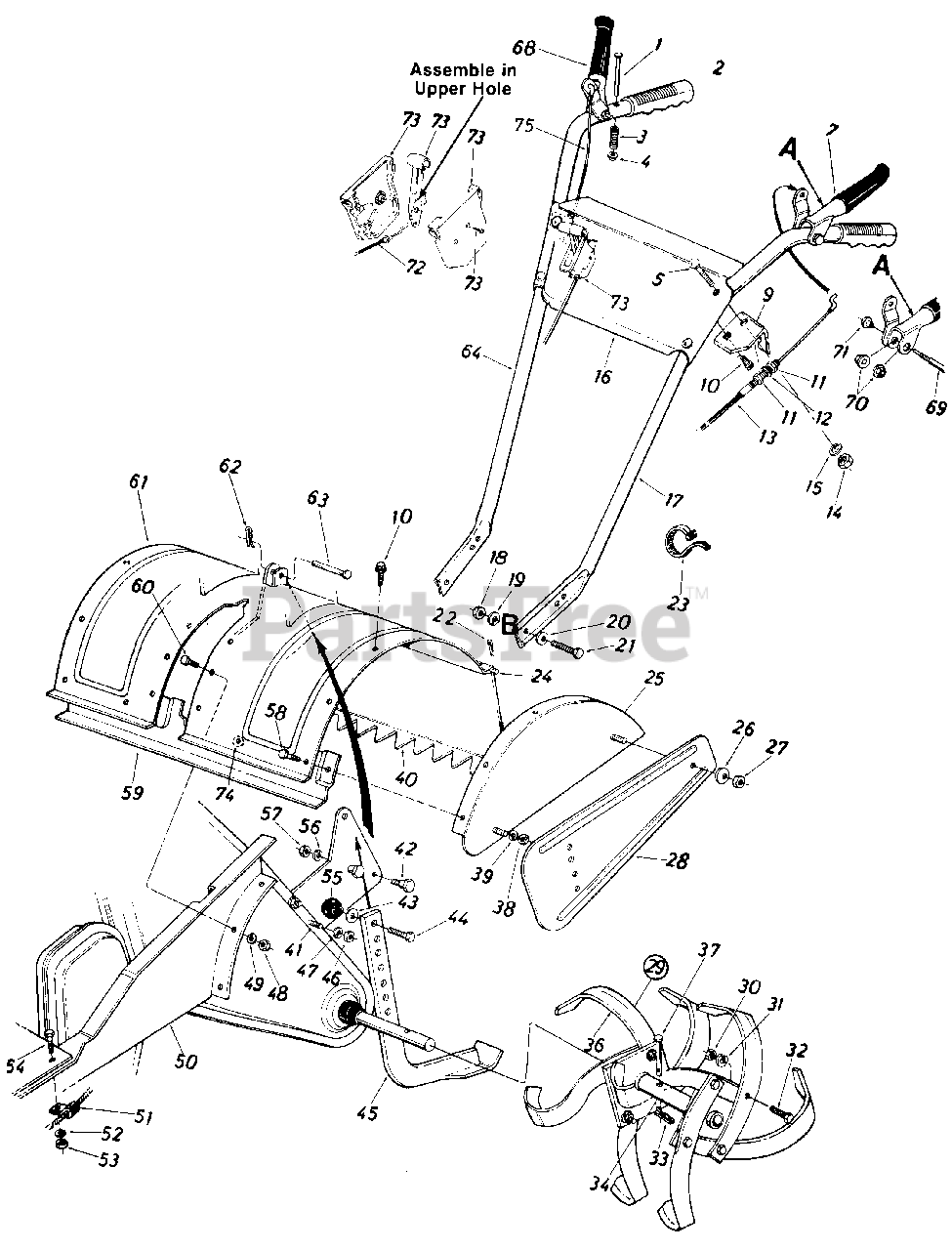

Handle & Frame Assembly Parts Diagram

  • Title

1

711-0750

Clevis Pin 1/4" Dia. x 2.25"

$

$

Not available

2

White Outdoor 720-0180

Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

White Outdoor 732-0442

Compression Spring .33" O.D. x 1.2" Lg.

$

$

Not available

4

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0458

Carr. Bolt 5/16-18 x 1.75"'

$4.49

$

In Stock, only 4 left!

0

7

White Outdoor 784-0031

Clutch Grip Ass'y.-L.H.

Note: (Tines)

$

$

Not available

9

White Outdoor 15093

Clutch Cable Bracket
(Superseded to 15093C)

$

$

Not available

10

White Outdoor 710-0607

Hex Wash. S-Tap Scr. 5/16-18 x .62" Lg.

$6.99

$

In Stock, Qty 11

0

11

White Outdoor 712-0256

Hex Nut 5/16-24 Thd.

$

$

Not available

12

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 746-0484

Tine Clutch Control Cable
(Superseded to 946-0484)

$66.99

$

In Stock, Qty 10

0

14

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 784-0037

Handle Panel

$

$

Not available

17

White Outdoor 749-0631

Handle-L.H.

Variations

White Outdoor 749-0631-0637

No Longer Available HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

19

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x 3/4"*

$4.49

$

In Stock, Qty 12

0

23

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 747-0501

Tiller Flap Rod

$

$

Not available

25

MTD 14989

End Cover Ass'y.-L.H.

Variations

White Outdoor 14989-0637

No Longer Available COVER ASSY-END-LH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 14990

End Cover Ass'y.-R.H.

Note: (Not Shown)

Variations

White Outdoor 14990-0637

No Longer Available COVER ASSY-END-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14990-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

26

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

28

15390-483

Side Shield

$

$

Not available

29

784-0083

Tine Ass'y. Comp.-L.H.

$

$

Not available

784-0082

Tine Ass'y. Comp.-R.H.

Note: (Not Shown)

$

$

Not available

30

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

31

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

33

White Outdoor 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

34

White Outdoor 784-0084

Tine Adapter Ass'y.

$

$

Not available

White Outdoor 742-0106

Tine 12" R.H.
(Superseded to 1916946001)

Variations

White Outdoor 742-0106-0637

Tiller Bolo Tine, 12" RH 3-Hole - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

36

White Outdoor 742-0105

Tine 12" L.H.

Variations

White Outdoor 742-0105-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 711-0415

Clevis Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

39

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

784-0088

Tine Shield Flap

$

$

Not available

41

White Outdoor 710-0736

Hex Bolt 5/16-18 x 1.0" Lg.

$

$

Not available

42

White Outdoor 738-0507

Shld. Bolt 1/2" Dia. x .426"
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

43

White Outdoor 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

44

White Outdoor 710-0216

Hex Bolt 3/8-16 x 3/4" Lg.

$4.49

$

In Stock, Qty 15

0

45

White Outdoor 14992

Depth Bar Ass'y.
(Superseded to 786-0120-0637)

Variations

White Outdoor 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)

$66.99

$

In Stock, only 1 left!

0

$66.99

$

In Stock, only 1 left!

0

46

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

47

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

49

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

14975-483

Frame Rail-L.H.

$

$

Not available

51

White Outdoor 726-0175

Clamp 5/16" Dia.

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

54

White Outdoor 710-0118

Hex Bolt 5/16-18 x 3/4" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 720-0165

Ball Knob 1-1/4" Dia. x 3/8-16 Thd.
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

56

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

58

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 784-0087

Bracket Reinforcement

$

$

Not available

60

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

784-0085

Tine Shield Ass'y.

$

$

Not available

62

White Outdoor 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

63

White Outdoor 711-0415

Clevis Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 749-0630

H andIe-R . H .

Variations

White Outdoor 749-0630-0637

No Longer Available HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

68

White Outdoor 784-0029

Clutch Grip Ass'y.-R.H.

Note: (Wheels)

$

$

Not available

69

White Outdoor 738-0575

Shoulder Bolt .38" Dia. x 1.53" Lg.

Note: (Special)

$

$

Not available

70

White Outdoor 741-0402

Hex Flange Plastic Bearing
(Superseded to 941-0402)

$

$

Not available

71

White Outdoor 738-0561

Shoulder Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

72

White Outdoor 746-0512

Throttle Control Wire

$

$

Not available

73

White Outdoor 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

74

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

75

White Outdoor 746-0496

Wheel Drive Cable
(Superseded to 946-0496)

$81.99

$

In Stock, only 2 left!

0
