RB-530 (215-403-190) - White Outdoor Roto Boss Tiller (1985) Handles & Frame Assembly RB-530 Parts Diagram

Roto Boss Tiller

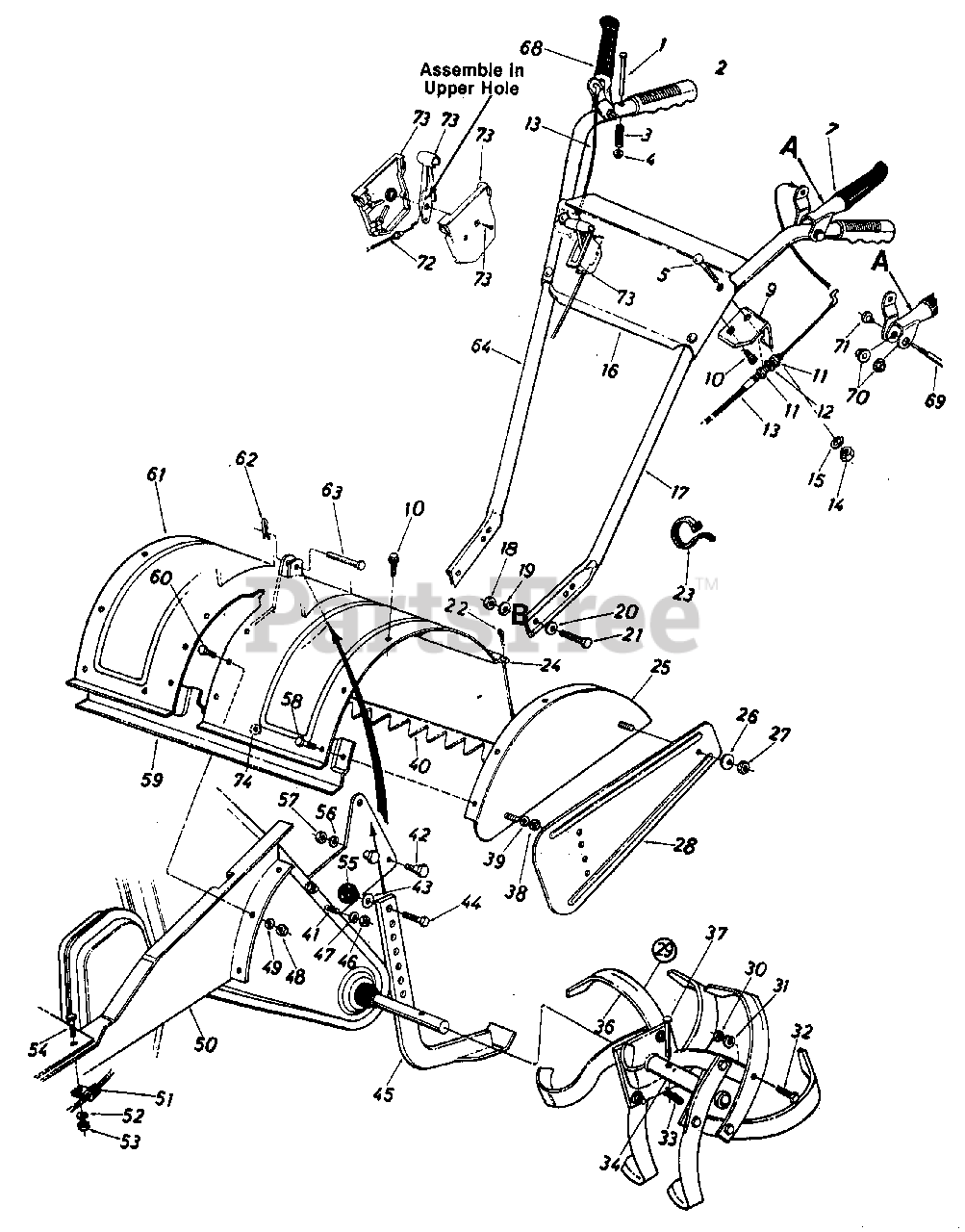

Handles & Frame Assembly RB-530 Parts Diagram

  • Title

1

MTD 711-0750

Clevis Pin 1/4 " Dia. x 2.25"

Note: NLA

$

$

Currently unavailable

2

MTD 720-04083

Grip

$14.99

$

In Stock, only 2 left!

0

3

MTD 732-0442

Compression Spring .33" O.D. x 1.2" Lg.

Note: NLA

$

$

Not available

4

MTD 926-0106

Cap Speed Nut 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

5

MTD 710-0458

Carr. Bolt 5/16-18 x 1.75"*

$4.49

$

In Stock, only 4 left!

0

7

MTD 784-0031

Clutch Grip Ass'y. L.H.

Note: NLA (Tines)

$

$

Not available

9

MTD 15093C

Clutch Cable Bracket

$

$

Not available

10

MTD 710-0607

Hex Wash. S-Tap Scr. 5/16-18 x .62" Lg.

$6.99

$

In Stock, Qty 11

0

11

MTD 712-0256

Hex Nut 5/16-24 Thd.

$

$

Not available

12

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

13

MTD 946-0484

Clutch Control Cable

$66.99

$

In Stock, Qty 10

0

14

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

16

MTD 784-0037

Handle Panel

Note: NLA

$

$

Not available

17

MTD 749-0631

Handle L.H.

Note: NLA

Variations

MTD 749-0631-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

19

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

21

MTD 910-0253

Hex Bolt 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

22

MTD 914-0507

Cotter Pin 3/32" Dia. x 3/4*

$4.49

$

In Stock, Qty 17

0

23

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

24

MTD 747-0501

Tiller Flap Rod

Note: NLA

$

$

Not available

25

MTD 14989

End Cover Ass'y. L.H.

Note: NLA

Variations

MTD 14989-0637

No Longer Available COVER ASM - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 14990

End Cover Ass'y. R.H.

Note: NLA

Variations

MTD 14990-0637

No Longer Available COVER ASM - POWDER BLACK (0637)

$

$

Not available

MTD 14990-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

26

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

27

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 15390

Side Shield

Note: NLA

Variations

MTD 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 15390-0637

No Longer Available SHIELD-SID - POWDER BLACK (0637)

$

$

Not available

MTD 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

29

MTD 784-0083

Tine Ass'y. Comp. L.H.

Note: NLA

$

$

Currently unavailable

29

MTD 784-0082

Tine Ass'y. Comp. R.H.

Note: NLA

$

$

Currently unavailable

30

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

31

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 9

0

33

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

34

MTD 784-0084

Tine Adapter Ass'y.

Note: NLA

$

$

Not available

34

MTD 1916946001

Tine 12" R.H.

$15.99

$

Usually ships in 3-6 days

0

36

MTD 742-0105

Tine 12" L.H.

Note: NLA

Variations

MTD 742-0105-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 911-0415

Clevis Pin 3/8" Dia.
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 18

0

38

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

40

MTD 784-0088

Tine Shield Flap

Note: NLA

$

$

Currently unavailable

41

MTD 710-0736

Hex Bolt 5/16-18 x 1.0" Lg.*

Note: NLA

$

$

Not available

42

MTD 938-0507B

Shld. Bolt 1/2" Dia. x .426"
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

43

MTD 936-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.

$7.49

$

Usually ships in 3-6 days

0

44

MTD 710-0216

Hex Bolt 3/8-16 x 314" Lg.*

$4.49

$

In Stock, Qty 16

0

45

MTD 786-0120-0637

Depth Bar Ass'y.

$66.99

$

In Stock, only 1 left!

0

46

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

47

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

48

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

50

MTD 14975

Frame Rail L.H.

Note: NLA

Variations

MTD 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 726-0175

Clamp 5/16" Dia.

$

$

Not available

52

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

53

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-3008

Hex Bolt 5/16-18 x 314" Lg.*

$4.49

$

In Stock, Qty 20+

0

55

MTD 920-0232

Ball Knob 1/4" Dia. x 3/8-16 Thd.

$10.99

$

In Stock, Qty 10

0

56

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

57

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

58

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

59

MTD 784-0087

Bracket Reinforcement

Note: NLA

$

$

Not available

60

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

61

MTD 784-0085

Tine Shield Ass'y.

Note: NLA

$

$

Currently unavailable

62

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

63

MTD 911-0415

Clevis Pin 3/8" Dia.
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 18

0

64

MTD 749-0630

Handle R.H.

Note: NLA

Variations

MTD 749-0630-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

68

MTD 784-0029

Clutch Grip Ass'y. R.H.

Note: NLA (Wheels)

$

$

Not available

69

MTD 738-0575

Shoulder Bolt .38" Dia. x 1.53" Lg.

Note: (Special)

$

$

Not available

70

MTD 941-0402

Hex Flange Plastic Bearing

$

$

Not available

71

MTD 938-0561

Shoulder Nut 1/4-20 Thd.

$9.49

$

Usually ships in 3-6 days

0

72

MTD 746-0512

Throttle Control Wire

Note: NLA

$

$

Not available

73

MTD 831-0796A

Throttle Control Box Ass'y.

Note: (Assemble in Upper Hole)

$21.99

$

Usually ships in 3-6 days

0

74

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0
