RB-530 (215-403-190) - White Outdoor Roto Boss Tiller (1985) Engine Mounting & Drive Assembly RB-530 Parts Diagram

Roto Boss Tiller

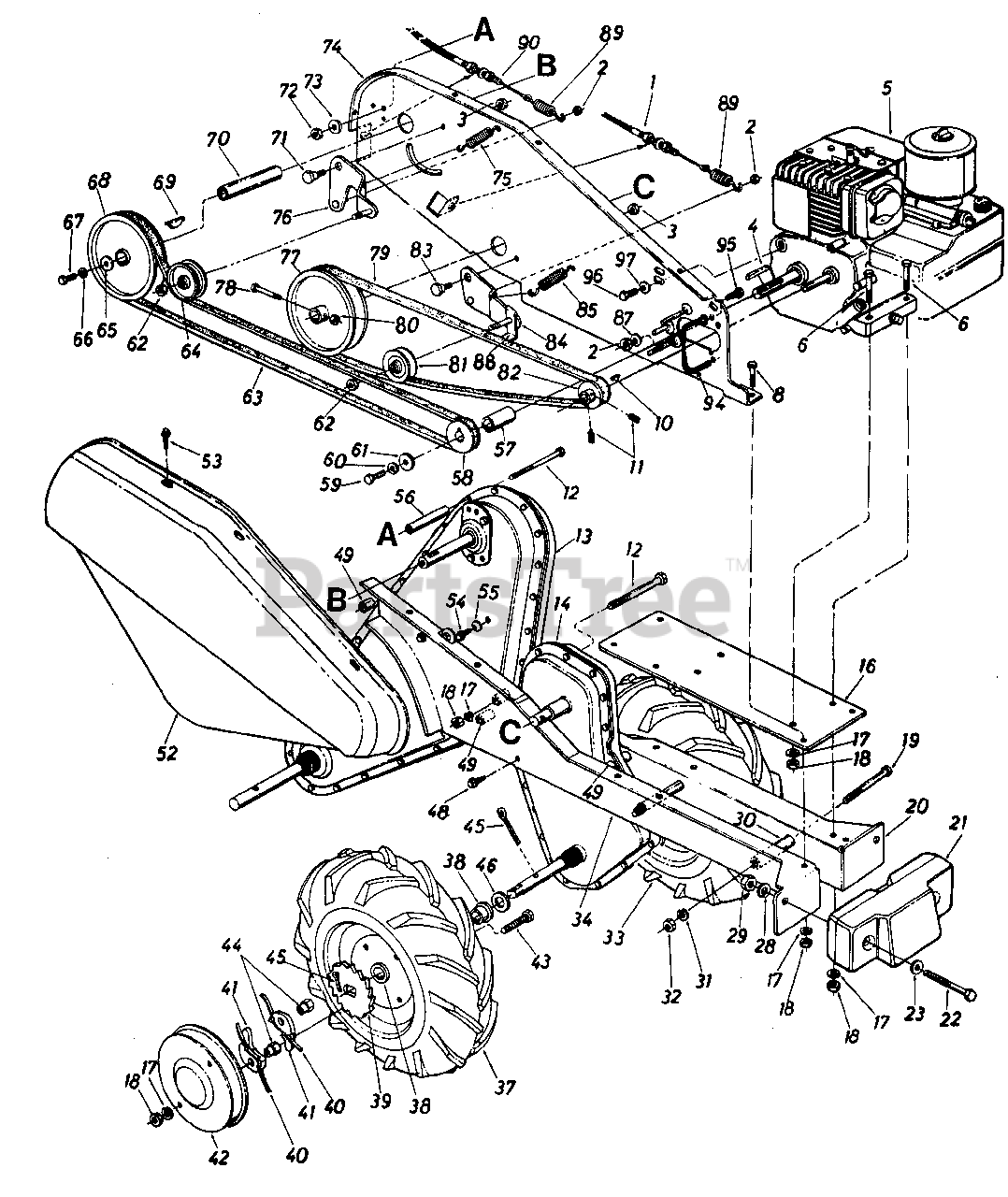

Engine Mounting & Drive Assembly RB-530 Parts Diagram

  • Title

1

MTD 946-0484

Clutch Control Cable

$66.99

$

In Stock, Qty 10

0

2

MTD 912-0107

Hex Cent. L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

3

MTD 712-0266A

Hex Cent. L-Nut 3/8-16 Thd.*

$3.99

$

In Stock, Qty 11

0

4

MTD 914-0122

Sq. Key 3/16" Dia. x .75
(Superseded to 714-0122)

$

$

Not available

5

Engine

$

$

Not available

6

MTD 710-0805

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

8

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0131

Hi-Pro Key #5 Woodruff

Note: NLA

$

$

Not available

11

MTD 710-0938

Set Scr. 1/4-28 x .25" Lg.

Note: NLA

$

$

Not available

12

MTD 710-0189

Hex Bolt 5/16-18 x 3.0" Lg.*

$6.49

$

In Stock, Qty 5

0

13

MTD 14981

Chain Case Ass'y. Comp. Tines

Note: NLA

Variations

MTD 14981-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 784-0102

Chain Case Ass'y Comp. Wheels

Note: NLA

$

$

Currently unavailable

16

MTD 14973

Engine Mounting Plate

Note: NLA

Variations

MTD 14973-0637

No Longer Available PLATE-MTG- - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

18

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0830

Hex Bolt 3/8-24 x 3.0" Lg.*

Note: NLA

$

$

Not available

20

MTD 14975

Frame Rail L.H.

Note: NLA

Variations

MTD 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 723-0340

Counter Weight

Note: NLA

$

$

Not available

22

MTD 710-0786

Hex Bolt 1/2-13 X 4.0" Lg.*

$16.99

$

Usually ships in 3-6 days

0

23

MTD 936-0326

Fl-Wash. 1/2" I.D. x 1.0" O.D.
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

28

MTD 936-0921

L-Wash. 1/2" I.D.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

29

MTD 912-0206

Hex Nut 1/2-13 Thd.*
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

30

MTD 750-0579

Spacer 3/8" I.D. x 5/8" O.D. x 2.18" Lg.

Note: NLA

$

$

Currently unavailable

31

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

33

MTD 734-1129

Comp. Wheel Ass'y. L.H.

Note: NLA

$

$

Currently unavailable

34

MTD 14974

Frame Rail R.H.

Note: NLA

Variations

MTD 14974-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 734-1130

Comp. Wheel Ass'y. R.H.

Note: NLA

$

$

Currently unavailable

38

MTD 741-0227

Flange Brg. 7/8" I.D. x 1.12" Lg.

$11.99

$

In Stock, Qty 20+

0

39

MTD 748-0292

Ratchet Wheel

Note: NLA

$

$

Not available

40

MTD 10622BP

Nylon Spring
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

41

MTD 948-0291A

Pawl .44" I.D.

$14.99

$

In Stock, only 3 left!

0

42

MTD 14967

Wheel Cover

Note: NLA

$

$

Not available

43

MTD 710-0874

Hex Bolt 5/16-18 x 1.25" Lg.*

$6.99

$

Usually ships in 3-6 days

0

44

MTD 712-0329

Special Hex Nut 5/16-24 Thd.

Note: NLA

$

$

Not available

45

MTD 914-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.*
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0214

Fl-Wash. 7/8" I.D. x 1-3/8" O.D. x .06

Note: NLA

$

$

Not available

48

MTD 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

49

MTD 750-0470

Spacer 5/16" I.D. x 16 Ga. x.96" Lg.

$6.99

$

Usually ships in 3-6 days

0

52

MTD 14980

Belt Cover

Note: NLA

$

$

Not available

53

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-0653

Hex Wash. S-Tap Scr. 1/4-20 x.3/8" Lg

$4.49

$

In Stock, Qty 13

0

55

MTD 736-0270

Bell Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

56

MTD 750-0219

Spacer 3/8" I.D. x 1/2" O.D. x 2.0" Lg.

Note: NLA

$

$

Currently unavailable

57

MTD 750-0442

Spacer 314" I.D. x 1.12" O.D. x 1.56" Lg.

Note: NLA

$

$

Not available

58

MTD 756-0396

1/2" "V"-4L Pulley 3/4" I.D. x2.59" O.D.

Note: NLA

$

$

Not available

59

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

60

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

61

MTD 936-0133

Fl-Wash. 3/8" I.D. x 1.25" O.D.
(Superseded to 736-0133)

$

$

Not available

62

MTD 912-0116

Hex L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

63

MTD 954-0195A

V-Belt 1/2" X 54" Lg.

$54.99

$

In Stock, only 4 left!

0

64

MTD 756-0405

Fl-ldler Pulley 3.75" O.D. x 3/8" I.D.

$71.99

$

Usually ships in 3-6 days

0

65

MTD 936-0176

Fl-Wash. .25" I.D. x .93" O.D. x .1 20
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 6

0

66

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

67

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.*

$5.99

$

In Stock, Qty 8

0

68

MTD 756-0389A

Split Pulley 6" Dia. x 5/8" I. D.

$

$

Not available

69

MTD 914-0388

Hi-Pro Key

$7.99

$

In Stock, Qty 5

0

70

MTD 750-0472

Spacer

$

$

Not available

71

MTD 938-0183

Shld. Bolt 1/2" Dia. x .210" Lg.

$

$

Not available

72

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

73

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

74

MTD 14991

Side Plate Ass'y.

Note: NLA

$

$

Not available

75

MTD 732-0445

Ext. Spring .50" O.D. x 1.55" Lg.

$8.99

$

In Stock, only 2 left!

0

76

MTD 14971

Idler Bracket Ass'y. Tines

Note: NLA

$

$

Currently unavailable

77

MTD 756-0387

Pulley 6" Dia. x 5/8" I.D.

Note: NLA

$

$

Currently unavailable

78

MTD 710-0698

Hex Bolt 1/4-28 x 1.50" Lg.*

$

$

Not available

79

MTD 754-0207

V-Belt 1/2" X 42" Lg.

Note: NLA

$

$

Not available

80

MTD 912-0117

Hex Cent. L-Nut 1/4-28 Thd.*

$2.49

$

In Stock, only 2 left!

0

81

MTD 756-1035A

V-ldler Pulley 2-5/8" O.D.

$34.99

$

In Stock, only 3 left!

0

82

MTD 756-0386

1/2" "V"-Pulley 2-1/4" O.D. x .50" I.D.

Note: NLA

$

$

Not available

83

MTD 738-0147

Shld. Bolt 1/2" Dia. x .160" Lg.

Note: NLA

$

$

Not available

84

MTD 14969

Idler Bracket Ass'y Wheels

Note: NLA

$

$

Not available

85

MTD 732-0445

Ext. Spring .50" O.D. x 1.97" Lg.

$8.99

$

In Stock, only 2 left!

0

85

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

Usually ships in 3-6 days

0

87

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

88

MTD 15399

Belt Keeper Ass'y.

Note: NLA

$

$

Not available

89

MTD 732-0387

Ext. Spring

$

$

Not available

90

MTD 946-0484

Clutch Control Cable

$66.99

$

In Stock, Qty 10

0

94

MTD 747-0507

Belt Keeper

Note: NLA

$

$

Currently unavailable

95

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.*

$3.99

$

In Stock, only 2 left!

0

96

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.*

$4.49

$

In Stock, only 1 left!

0

97

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0
