RB-510 (219-310-190) - White Outdoor Roto Boss Tiller (1989) Chain Case Parts Diagram

Roto Boss Tiller

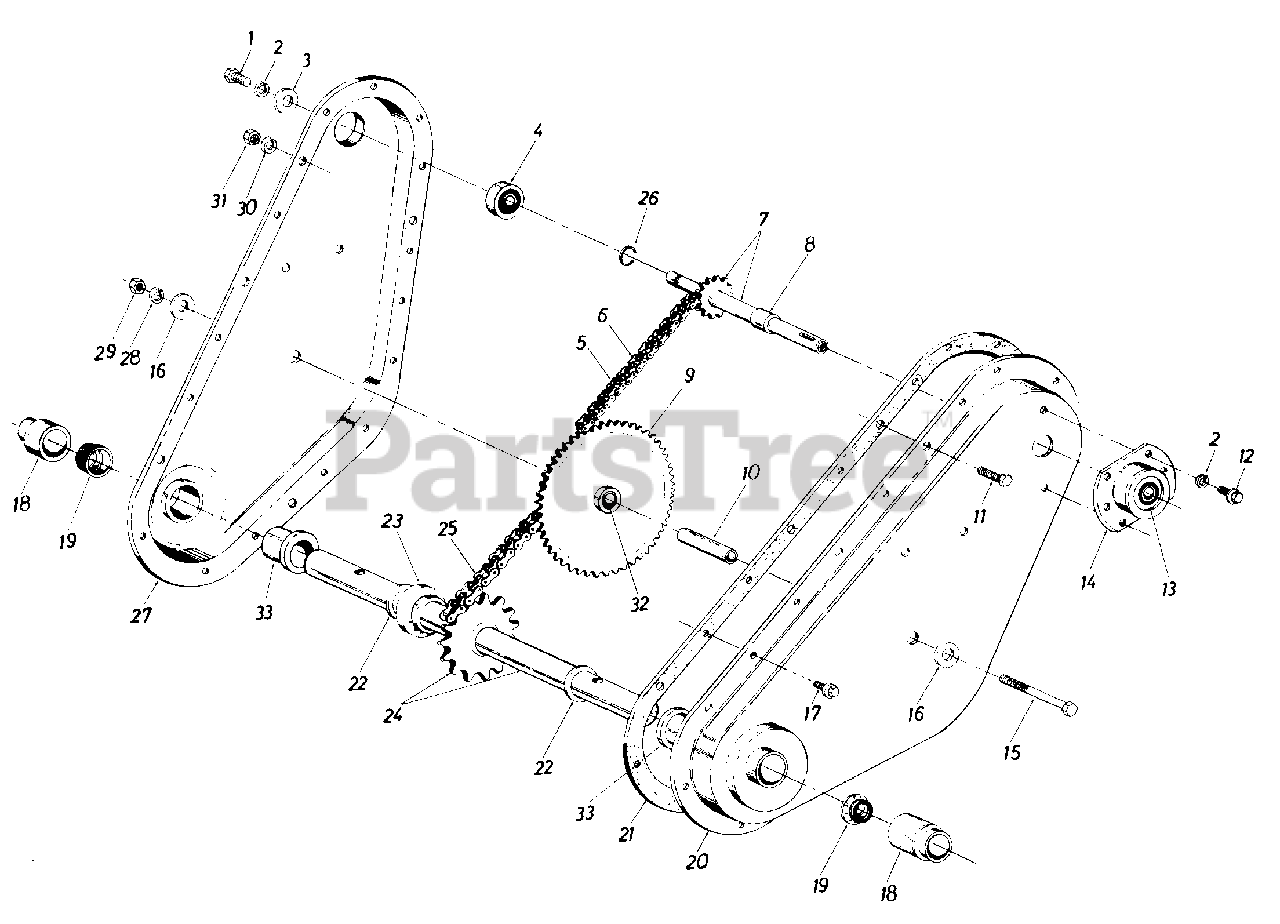

Chain Case Parts Diagram

  • Title

1

White Outdoor 710-0513

Hex L-Scr. 1/4-28 x .625" Lg.
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

2

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

White Outdoor 736-0176

Fl-Wash. .25" I.D. x .93" O.D. x .125" Thk.

$4.99

$

In Stock, only 4 left!

0

4

White Outdoor 741-0155

Bearing .62" I.D. x 1.38" O.D. x .437" Thk.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

5

White Outdoor 713-0327

#35 Chain 318" Pitch x 52 0 Links-Endless
(Superseded to 913-0327)

$

$

Not available

6

White Outdoor 713-0139

Master Link
(Superseded to 913-0139)

Note: (Service Only)

$

$

Not available

7

White Outdoor 04956

Input Shaft Assembly

$

$

Not available

8

White Outdoor 750-0471

Spacer
(Superseded to 950-0471)

$

$

Not available

9

White Outdoor 713-0331

Sprocket Assembly
(Superseded to 913-0331)

Note: (Includes Ref. No. 32)

$

$

Not available

10

White Outdoor 750-0275

Sprocket Hub Tubing 318" I.D. x 5/8" O.D. x 1.9" Lg.

$

$

Not available

11

White Outdoor 710-0118

Hex Scr. 5/16-18 x .625" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 741-0155

Bearing .625" I.D. x 1.38" O.D. x .437" Thk.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

14

White Outdoor 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

15

White Outdoor 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.

$

$

Not available

16

White Outdoor 736-0258

Fl-Wash. 318" I.D. x 1.25" O.D. x .100 Thk.

$4.49

$

In Stock, only 3 left!

0

17

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 731-0487

Dust Cap
(Superseded to 931-0487)

$11.99

$

In Stock, only 3 left!

0

19

White Outdoor 721-0175

Seal

$9.99

$

In Stock, Qty 6

0

20

White Outdoor 14985

Tiller Housing-L.H.

Variations

White Outdoor 14985-0637

No Longer Available HOUSING ASSY-LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14985-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

21

White Outdoor 721-0170

Gasket
(Superseded to 721P0170)

$15.99

$

In Stock, only 1 left!

0

22

White Outdoor 736-0163

Thrust Wash. 1.00" I.D. x .030" Thk.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 750-0570

Step Spacer
(Superseded to 950-0570)

$10.99

$

In Stock, only 4 left!

0

24

White Outdoor 784-0089

Tine Shaft Assembly

$

$

Not available

25

White Outdoor 713-0328

#50 Chain 5/8" Pitch x 46 0 Links-Endless
(Superseded to 913-0328)

$102.99

$

Usually ships in 3-6 days

0

26

White Outdoor 716-0131

Snap Ring
(Superseded to 916-0131)

$7.49

$

In Stock, only 1 left!

0

27

White Outdoor 14984

Tiller Housing-R.H.

Variations

White Outdoor 14984-0637

HOUSING ASSEMBLY RH BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 14984-0638

HOUSING ASSEMBLY RH BLACK - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

28

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 712-0711

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

32

White Outdoor 741-0304

Bearing

Note: (For Service Only- 0 Must be Press Fit)

$

$

Not available

33

White Outdoor 731-0374

Bearing
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 5

0
