RB-510 (215-310-190) - White Outdoor Roto Boss Tiller (1985) Handles & Frame Assembly Parts Diagram

Roto Boss Tiller

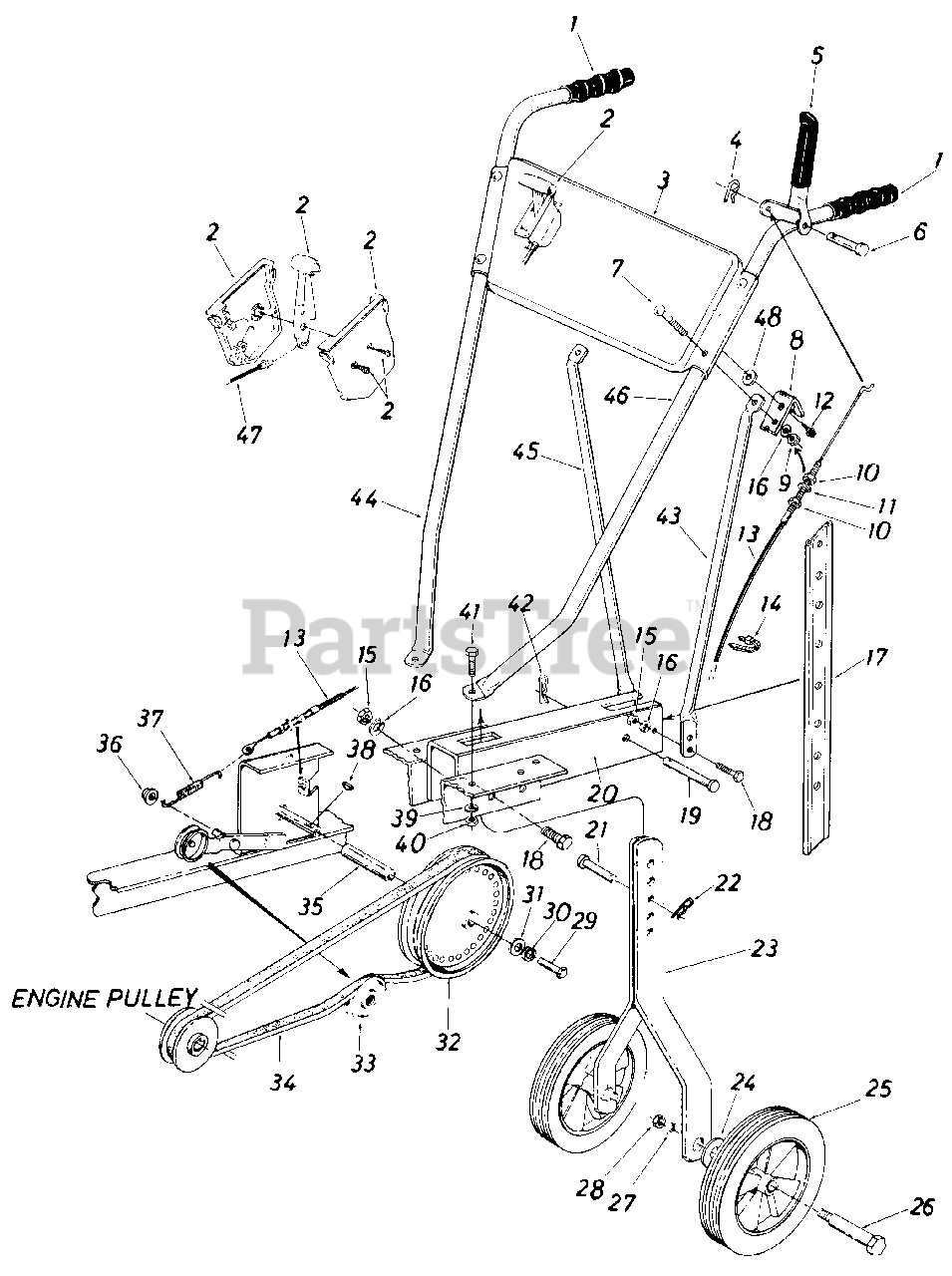

Handles & Frame Assembly Parts Diagram

  • Title

1

MTD 720-0204

Grip

$13.99

$

Usually ships in 3-6 days

0

2

MTD 831-0796A

Throttle Control Box

$21.99

$

Usually ships in 3-6 days

0

3

MTD 784-0036

Handle Panel

Note: NLA

$

$

Not available

4

MTD 914-0104

Int. Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

MTD 784-0008

Clutch Grip Ass'y.

Note: NLA

$

$

Not available

6

MTD 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.*

$4.49

$

In Stock, only 4 left!

0

8

MTD 15093C

Cable Support Brkt.

$

$

Not available

9

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

11

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

12

MTD 710-0599

Hex Wash Hd. Self-Tap Scr 1/4 20 x 50" Lg.

$4.49

$

In Stock, Qty 20+

0

13

MTD 946-0508

Clutch Control Cable

$

$

Not available

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

17

MTD 04668

Depth Bar

Note: NLA

$

$

Not available

18

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-0761

Clevis Pin 1/2" Dia. x 2.50" Lg .

$19.99

$

In Stock, only 4 left!

0

20

MTD 784-0005

Tailpiece Ass'y.

Note: NLA

$

$

Not available

21

MTD 911-0755

Clevis Pin 3/8" Dia. x 2.50" Lg .

$

$

Not available

22

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

23

MTD 06813

Wheel Bracket Ass'y.

$

$

Not available

24

MTD 936-0253

Belleville Wash. 1/2" I.D.
(Superseded to 736-0253)

$

$

Not available

25

MTD 753-04874

Wheel Ass'y. 9 x 1.75

$58.99

$

In Stock, only 1 left!

0

26

MTD 738-0318

Shoulder Bolt

Note: NLA

$

$

Not available

27

MTD 936-0921

L-Wash. 1/2" I.D.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

28

MTD 712-0200A

Hex Nut 1/2-20 Thd.*

$4.49

$

In Stock, only 1 left!

0

29

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

30

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 9

0

31

MTD 936-0176

Fl-Wash. .25" I.D. x .930" O.D.
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

32

MTD 756-0389A

Pulley 6.00" O.D.

$

$

Not available

33

MTD 756-0137

Idler Pulley

Note: NLA

$

$

Not available

34

MTD 954-0190

V-Belt 1/2 " Pitch x 39" Lg.

$32.99

$

In Stock, Qty 5

0

35

MTD 750-0472

Spacer

$

$

Not available

36

MTD 926-0106

Cap Speed Nut
(Superseded to 726-0106)

$

$

Not available

37

MTD 732-0387

Extension Spring

$

$

Not available

38

MTD 914-0388

Hi-Pro Key

$7.99

$

In Stock, Qty 20+

0

39

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

40

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

42

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

43

MTD 749-0633

Handle Support Bracket L.H.

Note: NLA

$

$

Not available

44

MTD 749-0626

Handle Bar R.H.

Note: NLA

$

$

Currently unavailable

45

MTD 749-0632

Handle Support Bracket R. H .

Note: NLA

$

$

Currently unavailable

46

MTD 749-0627

Handle Bar L.H.

Note: NLA

$

$

Not available

47

MTD 946-0503

Throttle Control Cable 35"

$

$

Not available

48

MTD 936-0142

Fl-Wash. .281" I.D. x .50" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0
