RB-510 (215-310-190) - White Outdoor Roto Boss Tiller (1985) Engine Mounting & Blades Assembly Parts Diagram

Roto Boss Tiller

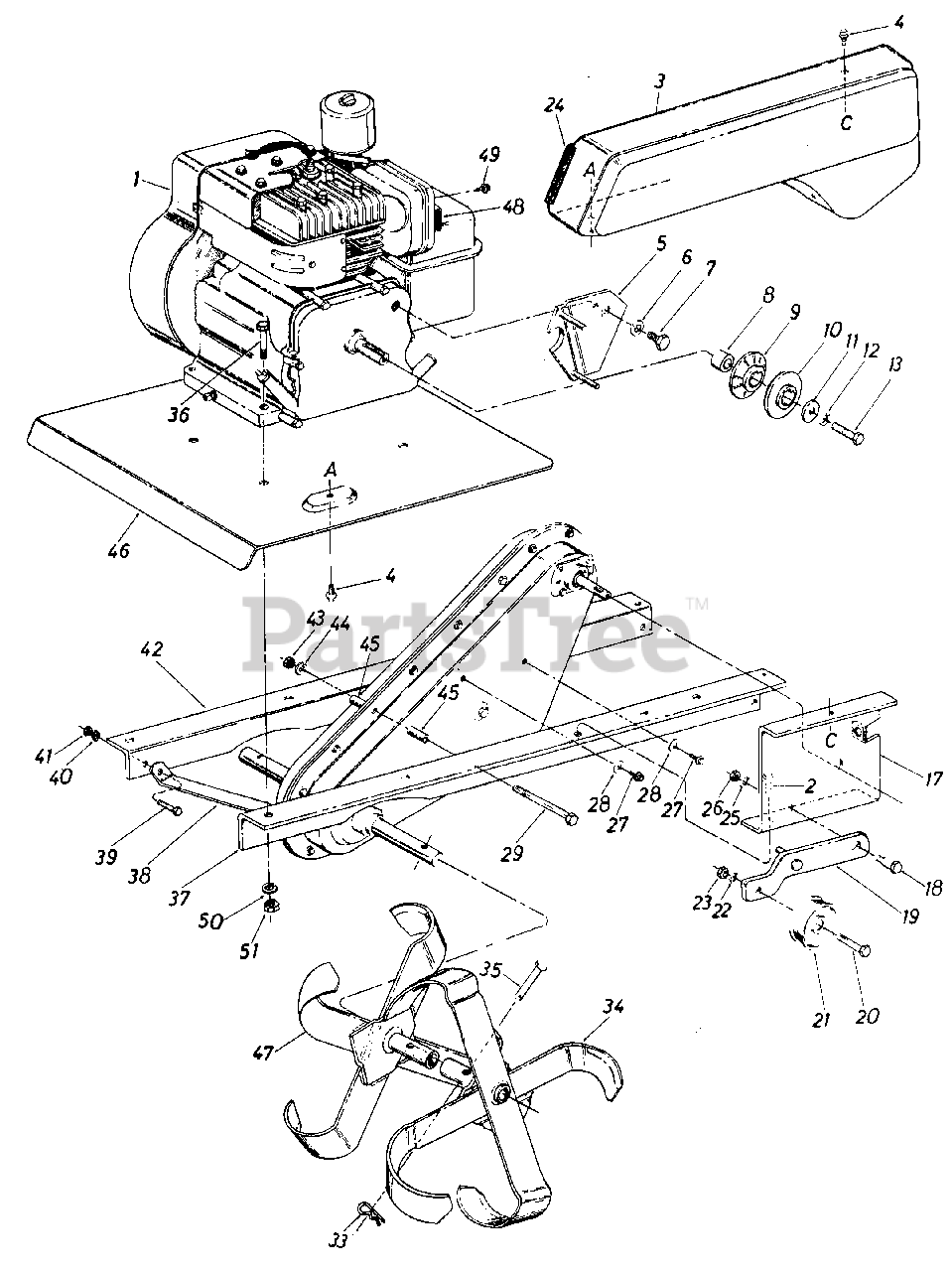

Engine Mounting & Blades Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

3

MTD 04958

Belt Cover

Note: NLA

$

$

Not available

4

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

5

MTD 04935

Belt Keeper Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

6

MTD 736-0114

Internal L-Wash. 1/2" I.D.

Note: NLA

$

$

Not available

7

MTD 710-0121

Hex Scr. 1/2-20 Thd.

Note: NLA

$

$

Not available

8

MTD 750-0345

Spacer

Note: NLA

$

$

Not available

9

MTD 748-0282

Pulley Half

Note: NLA

$

$

Not available

10

MTD 748-0282

Pulley Half

Note: NLA

$

$

Not available

11

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.25" O.D. x .100

$4.49

$

Usually ships in 3-6 days

0

12

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-1039

Hex Scr. 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 04934

Idler Mounting Brkt.

Note: NLA

$

$

Not available

18

MTD 738-0322A

Shld. Bolt

$6.99

$

In Stock, only 3 left!

0

19

MTD 784-0027

Idler Bracket Ass'y.

Note: NLA

$

$

Currently unavailable

20

MTD 710-0344

Hex Scr. 3/8-16 x 1.50" Lg.

$5.99

$

In Stock, Qty 11

0

21

MTD 756-0137

Idler Pulley

Note: NLA

$

$

Not available

22

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

24

MTD 731-0511

Trim Strip 3"

$3.99

$

Usually ships in 3-6 days

0

25

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

27

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0270

BelleviIle Wash . .26 1. D. x .75 O.D. x .060

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-0176

Hex Scr. 5/16-18 x 2.75" Lg.*

$4.49

$

In Stock, only 2 left!

0

33

MTD 914-0149B

Hairpin Cotter
(Superseded to 714-0149B)

$

$

Not available

34

See Tine Chart (Ref. No. 47)

$

$

Not available

35

MTD 711-0679A

Clevis Pin

$14.99

$

In Stock, only 2 left!

0

36

MTD 710-0805

Bolt 5/16-18 x 1.5" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

37

MTD 04949

Frame Rail L.H.

Note: NLA

$

$

Not available

38

MTD 04933

Front Brace Brkt.

Note: NLA

$

$

Currently unavailable

39

MTD 710-3008

Hex Scr. 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

40

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

41

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

42

MTD 04948

Frame Rail R.H.

Note: NLA

$

$

Not available

43

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

44

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

45

MTD 750-0470

Spacer

$6.99

$

Usually ships in 3-6 days

0

46

MTD 784-0001

Tine Shield

Note: NLA

$

$

Not available

47

MTD 784-0092-0637

Inner Tine Ass'y. Comp. - R.H.

$

$

Not available

47

MTD 784-0094-0637

Outer Tine Ass'y. Comp. - R.H.

$

$

Not available

47

MTD 784-0091-0637

Inner Tine Ass'y. Comp. - L.H.

$

$

Not available

47

MTD 784-0093

Outer Tine Ass'y. Comp. - L.H.

Note: NLA

Variations

MTD 784-0093-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD BS-796956

Deflector

$10.99

$

In Stock, only 1 left!

0

49

MTD 710-0783

Hex Self-Tap Scr. #8-32 x.38" Lg.

Note: NLA

$

$

Not available

50

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

51

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
