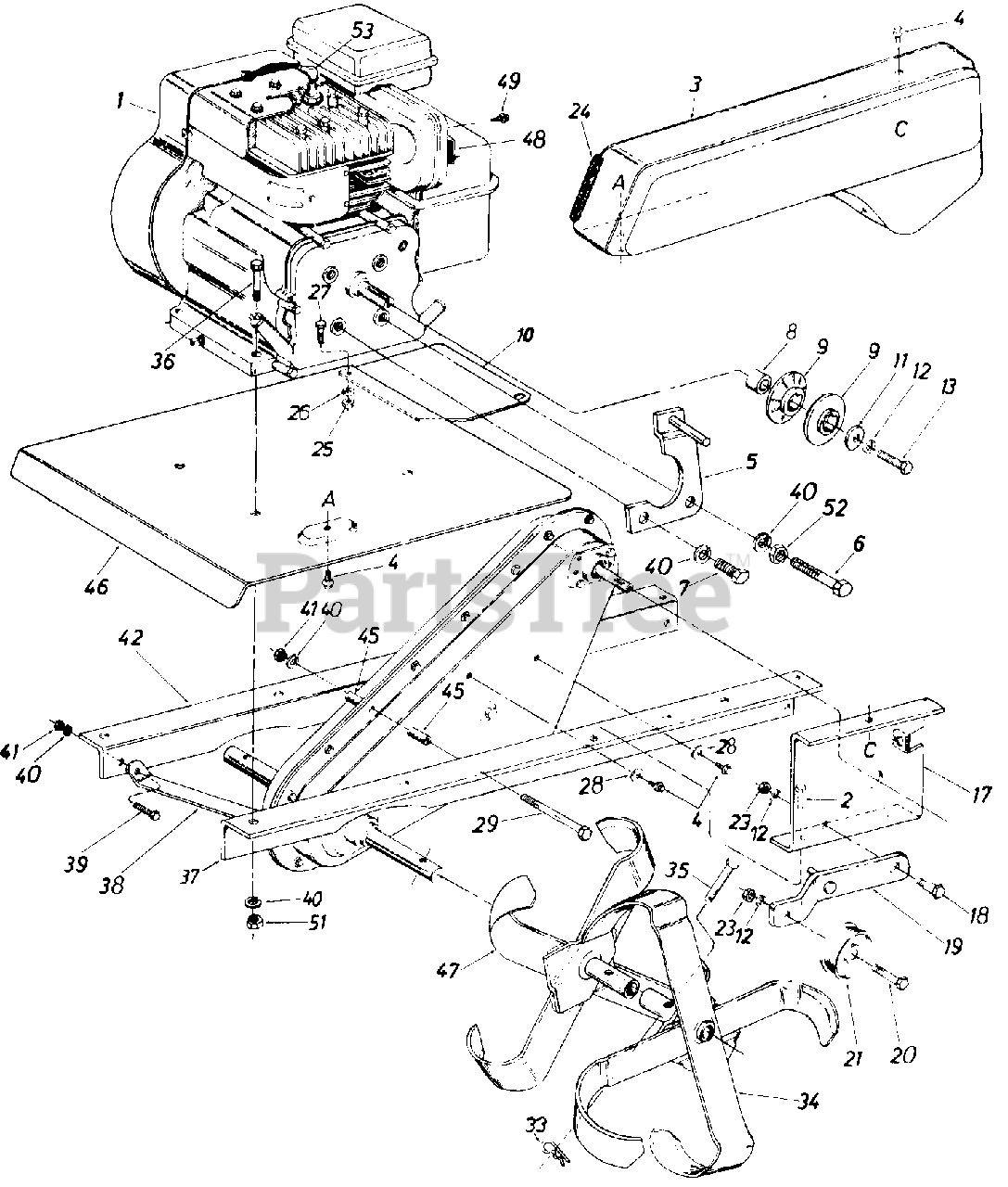

RB-510 (211-310-190) - White Outdoor Roto Boss Tiller (1991) Tine Assembly Parts Diagram

Roto Boss Tiller

Tine Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 710-0600

Hex Self-Tap Scr. 5/16-24 x .5"

$3.49

$

Usually ships in 3-6 days

0

3

White Outdoor 04958

Belt Cover

$

$

Not available

4

White Outdoor 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

5

784-0114

Belt Keeper Brkt. Ass'y.

$

$

Not available

6

White Outdoor 710-0593

Hex Bolt 5/16-24 x 2.25" Lg. (Gr. 5)

$

$

Not available

7

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg. (Gr. 5)

$4.49

$

In Stock, only 1 left!

0

8

White Outdoor 750-0345

Spacer

$

$

Not available

9

White Outdoor 748-0282

Pulley Half

$

$

Not available

10

784-0265

Tine Shield Extension

$

$

Not available

11

White Outdoor 736-0258

Fl-Wash. 318" I.D. x 1.25"

$4.49

$

In Stock, only 3 left!

0

12

White Outdoor 736-0169

L-Wash. 318" I.D.*

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

17

White Outdoor 04934

Idler Mounting Brkt.

$

$

Not available

18

White Outdoor 738-0322

Shld. Bolt
(Superseded to 738-0322A)

$6.99

$

In Stock, only 2 left!

0

19

784-0027

Idler Bracket Ass'y.

$

$

Not available

20

White Outdoor 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, only 1 left!

0

21

White Outdoor 756-0137

Idler Pulley

$

$

Not available

23

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

24

White Outdoor 731-0511

Trim Strip-3"

$3.99

$

Usually ships in 3-6 days

0

25

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

26

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

27

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62 Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0270

Bell-Wash. .26 I.D. x .75 O.D.

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3" Lg.*

$6.49

$

In Stock, Qty 5

0

33

White Outdoor 714-0149B

Hairpin Cotter

$4.49

$

In Stock, Qty 18

0

34

See Tine Chart

$

$

Not available

White Outdoor 784-0092

Inner Tine Ass'y. Comp.-R.H.

Variations

White Outdoor 784-0092-0637

TINE ASSY-INNER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 784-0094

Outer Tine Ass'y. Comp.-R.H.
(Superseded to 784-0094-0637)

Variations

White Outdoor 784-0094-0637

TINE ASSY-OUTER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 784-0091

Inner Tine Ass'y. Comp.-L.H.

Variations

White Outdoor 784-0091-0637

TINE ASSY-INNER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 784-0093

Outer Tine Ass'y. Comp.-L.H.

Variations

White Outdoor 784-0093-0637

No Longer Available TINE ASSY-OUTER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 1545-029

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

36

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

37

White Outdoor 04949B

Frame Rail-L.H.

$

$

Not available

38

04933

Front Brace Brkt.

$

$

Not available

39

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

42

White Outdoor 04948B

Frame Rail-R.H.

$

$

Not available

45

White Outdoor 750-0470

Spacer

$6.99

$

Usually ships in 3-6 days

0

46

White Outdoor 784-0001A

Tine Shield

$

$

Not available

47

See Tine Chart

$

$

Not available

White Outdoor 784-0092

Inner Tine Ass'y. Comp.-R.H.

Variations

White Outdoor 784-0092-0637

TINE ASSY-INNER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 784-0094

Outer Tine Ass'y. Comp.-R.H.
(Superseded to 784-0094-0637)

Variations

White Outdoor 784-0094-0637

TINE ASSY-OUTER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 784-0091

Inner Tine Ass'y. Comp.-L.H.

Variations

White Outdoor 784-0091-0637

TINE ASSY-INNER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 784-0093

Outer Tine Ass'y. Comp.-L.H.

Variations

White Outdoor 784-0093-0637

No Longer Available TINE ASSY-OUTER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

48

White Outdoor 751-0233

Deflector
(Superseded to BS-796956)

$10.99

$

Usually ships in 2-12 days

0

49

White Outdoor 710-0783

Hex Self-Tap Scr. #8-32 x .38"

$

$

Not available

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

53

White Outdoor 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available
