RB-500 (21A-352B190) - White Outdoor Roto Boss Tiller (2001) Handle And Wheels Parts Diagram

Roto Boss Tiller

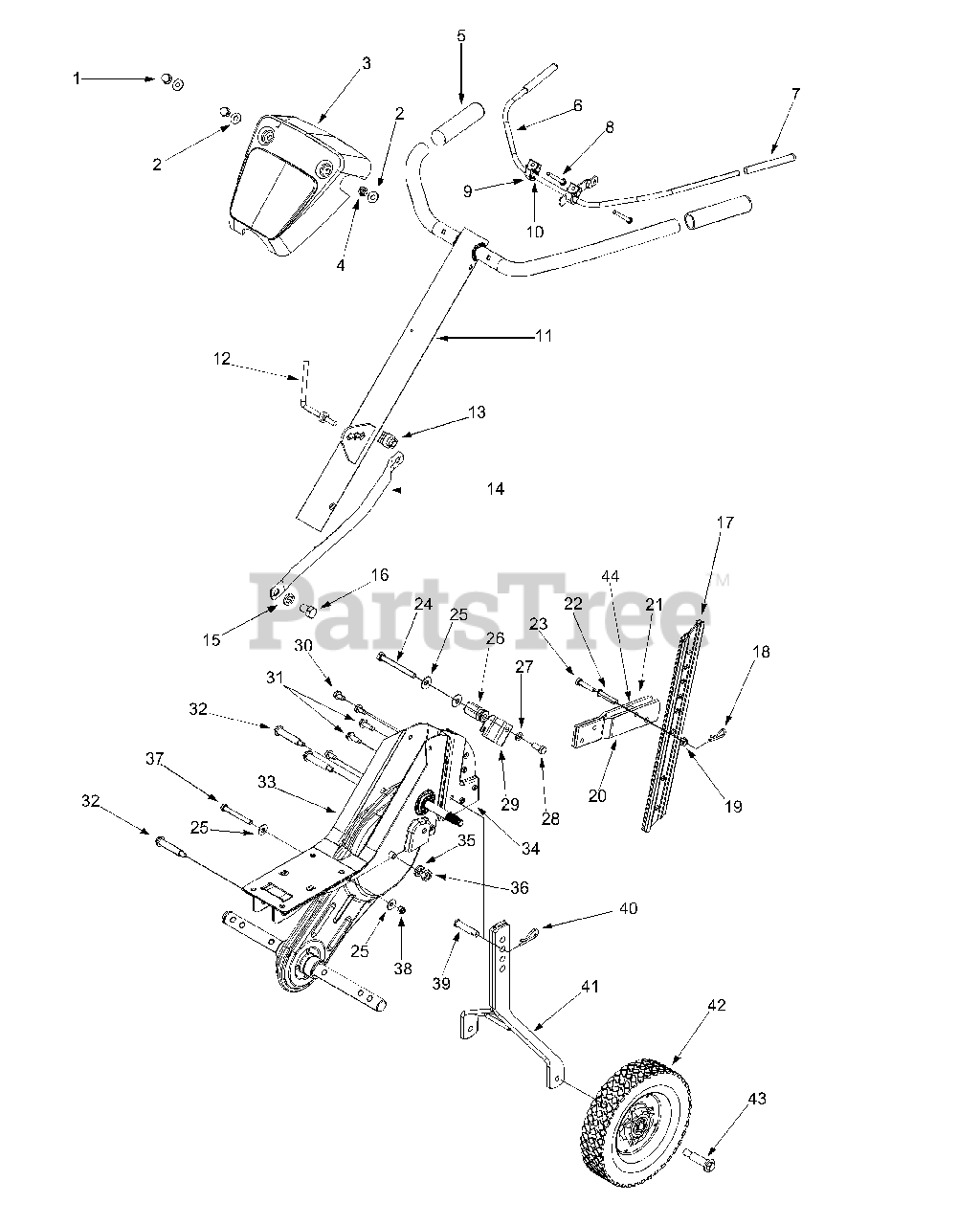

Handle And Wheels Parts Diagram

  • Title

1

White Outdoor 712-0442

Acorn Lock Nut 1/4-20

$6.99

$

In Stock, only 4 left!

0

2

White Outdoor 736-3020

Flat Washer .271" I.D. x .630" O.D.

$6.99

$

In Stock, Qty 9

0

3

White Outdoor 731-1599

Handle Cover

$

$

Not available

4

White Outdoor 712-0287

Hex Nut 1/4-20 Gr.2
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

5

White Outdoor 720-0274

Grip-Handle

$11.99

$

In Stock, Qty 11

0

6

White Outdoor 686-0083

Clutch Handle Assembly
(Superseded to 686-0083-0637)

Variations

White Outdoor 686-0083-0637

Clutch Handle Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

7

White Outdoor 720-0269

Grip-Clutch

$4.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-0641

Hex Bolt 1/4-20 x 2.25"

$4.49

$

In Stock, only 2 left!

0

9

White Outdoor 731-1645A

Clutch Handle Holder
(Superseded to 931-1645B)

$16.99

$

In Stock, only 2 left!

0

10

White Outdoor 736-0140

Flat Washer .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

11

White Outdoor 649-0039

Handle Assembly Comp.

Variations

White Outdoor 649-0039-0480

No Longer Available HANDLE ASM. - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 649-0039-0606

No Longer Available HANDLE ASM. - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 649-0039-0638

HANDLE ASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 649-0039-0650

HANDLE ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 649-0039-0662

HANDLE ASSY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 649-0039-0716

HANDLE ASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

White Outdoor 647-0042

Adjustment Crank

$

$

Not available

13

White Outdoor 726-0211

U Nut 5/16-18

$4.49

$

In Stock, only 1 left!

0

14

White Outdoor 749-1101

Handle Brace

Variations

White Outdoor 749-1101-0637

BRACE HANDLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-1101-0480

BRACE HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 749-1101-0498

BRACE HANDLE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-1101-0606

BRACE HANDLE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 749-1101-0638

BRACE HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 749-1101-0650

BRACE HANDLE - RED METALLIC (0650)

$

$

Not available

White Outdoor 749-1101-0662

BRACE HANDLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 749-1101-0716

BRACE HANDLE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

15

White Outdoor 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

16

White Outdoor 710-3194

Hex Bolt 1/2-20

$6.99

$

In Stock, only 1 left!

0

17

White Outdoor 786-0005

Depth Bar
(Superseded to 786-0005-0637)

Variations

White Outdoor 786-0005-0637

Depth Bar, Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

18

White Outdoor 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

19

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 786-0003

Tail Piece Bracket (L.H.)
(Superseded to 786-0003-0637)

Variations

White Outdoor 786-0003-0637

Tailpiece Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

21

White Outdoor 786-0004

Tail Piece Bracket (R.H.)
(Superseded to 786-0004-0637)

Variations

White Outdoor 786-0004-0637

Tailpiece Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

22

White Outdoor 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3"

$6.49

$

In Stock, Qty 5

0

25

White Outdoor 736-0242

Wash. Bell. .340" I.D. x .872" O.D.

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 711-1036A

Spec. Hex Nut

$17.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 710-3008

Hex Bolt 5/16-18 Gr. 5

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 786-0129

Cable Guide Bracket
(Superseded to 786-0129-0637)

Variations

White Outdoor 786-0129-0637

BRACKET-CABLE GUIDE - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

30

White Outdoor 710-0604

Hex Wash Screw 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 710-0602

Hex Wash. Hd. TT-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 738-0934

Shdl. Bolt 5/16-18
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

33

White Outdoor 786-0138

Frame (R.H.)

Variations

White Outdoor 786-0138-0498

FRAME-RH - OLD CUB YELLOW (0498)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0637

FRAME-RH - POWDER BLACK (0637)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0687

FRAME-RH - PINE GREEN (0687)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0638

FRAME-RH - MTD/TROY-BILT RED (0638)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0480

No Longer Available FRAME-RH - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 786-0138-0662

FRAME-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 786-0138-0665

FRAME-RH - YARDMAN GREEN (0665)

$

$

Not available

$78.99

$

Usually ships in 3-6 days

0

34

White Outdoor 786-0139

Frame (L.H.)
(Superseded to 786-0139A)

Variations

White Outdoor 786-0139-0480

FRAME-LH - BRILLIANT GREEN (0480)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0498

FRAME-LH - OLD CUB YELLOW (0498)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0637

FRAME-LH - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0662

FRAME-LH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0665

FRAME-LH - YARDMAN GREEN (0665)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0687

FRAME-LH - PINE GREEN (0687)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0638

FRAME-LH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

36

White Outdoor 712-0240

Jam Nut 7/16-20 Gr. 2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

38

White Outdoor 712-0429

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 714-0149B

Cotter Pin

$4.49

$

In Stock, Qty 18

0

41

White Outdoor 686-0081A

Wheel Hanger Brkt. Assembly
(Superseded to 686-0081A-0637)

Variations

White Outdoor 686-0081A-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 1 left!

0

$88.99

$

In Stock, only 1 left!

0

42

White Outdoor 734-1566

Wheel Ass'y 8" x 1.75"
(Superseded to 734-1268)

$71.99

$

Usually ships in 3-6 days

0

43

White Outdoor 738-0929

Shoulder Screw .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

44

White Outdoor 750-0890

Spacer

$6.99

$

In Stock, Qty 6

0
