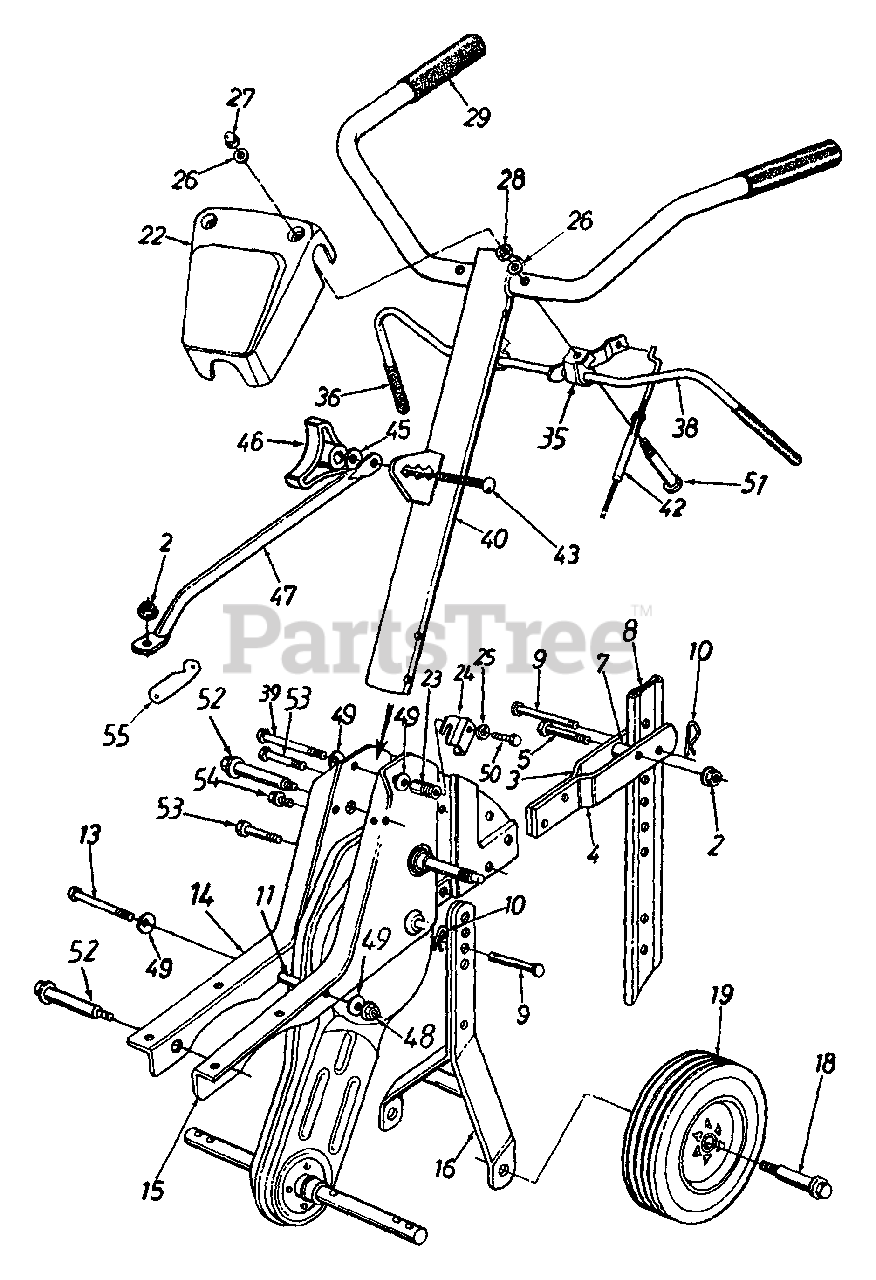

RB-500 (21A-340-190) - White Outdoor Roto Boss Tiller (1999) Handles, Frame And Wheel Assembly Parts Diagram

Roto Boss Tiller

Handles, Frame And Wheel Assembly Parts Diagram

  • Title

2

White Outdoor 712-3004A

Hex Flange L-Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 786-0004

Tail Piece Brkt. (R.H.)
(Superseded to 786-0004-0637)

Variations

White Outdoor 786-0004-0637

Tailpiece Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

4

White Outdoor 786-0003

Tail Piece Brkt. (L.H.)
(Superseded to 786-0003-0637)

Variations

White Outdoor 786-0003-0637

Tailpiece Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 750-0890

Spacer .32" I.D. x .75" O.D.

$6.99

$

In Stock, Qty 6

0

8

White Outdoor 786-0005

Depth Bar
(Superseded to 786-0005-0637)

Variations

White Outdoor 786-0005-0637

Depth Bar, Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

9

White Outdoor 711-0415

Clevis Pin .375" I.D. x 1.62" Lg.

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

11

White Outdoor 750-0470

Spacer .326" I.D. x .47" O.D.

$6.99

$

Usually ships in 3-6 days

0

13

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

14

White Outdoor 786-0138

Frame - R.H.

Variations

White Outdoor 786-0138-0498

FRAME-RH - OLD CUB YELLOW (0498)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0637

FRAME-RH - POWDER BLACK (0637)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0687

FRAME-RH - PINE GREEN (0687)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0638

FRAME-RH - MTD/TROY-BILT RED (0638)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0138-0480

No Longer Available FRAME-RH - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 786-0138-0662

FRAME-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 786-0138-0665

FRAME-RH - YARDMAN GREEN (0665)

$

$

Not available

$78.99

$

Usually ships in 3-6 days

0

15

White Outdoor 786-0139

Frame - L.H.
(Superseded to 786-0139A)

Variations

White Outdoor 786-0139-0480

FRAME-LH - BRILLIANT GREEN (0480)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0498

FRAME-LH - OLD CUB YELLOW (0498)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0637

FRAME-LH - POWDER BLACK (0637)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0662

FRAME-LH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0665

FRAME-LH - YARDMAN GREEN (0665)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0687

FRAME-LH - PINE GREEN (0687)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0139-0638

FRAME-LH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

16

White Outdoor 686-0081A

Wheel Hanger Brkt. Ass'y.
(Superseded to 686-0081A-0637)

Variations

White Outdoor 686-0081A-0637

Wheel Bracket Assembly, Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 1 left!

0

$88.99

$

In Stock, only 1 left!

0

18

White Outdoor 738-0929

Shld. Bolt .496" Dia. x 1.45"

$7.99

$

In Stock, only 2 left!

0

19

White Outdoor 734-1781

Wheel Ass'y.

$32.99

$

In Stock, Qty 7

0

22

White Outdoor 731-1599

Handle Cover

$

$

Not available

23

White Outdoor 711-1036

Spec. Hex Nut
(Superseded to 711-1036A)

$17.99

$

Usually ships in 3-6 days

0

24

White Outdoor 786-0129

Cable Guide Brkt.
(Superseded to 786-0129-0637)

Variations

White Outdoor 786-0129-0637

BRACKET-CABLE GUIDE - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-3020

Fl-Wash. .266" I.D. x .625" O.D.

$6.99

$

In Stock, Qty 9

0

27

White Outdoor 712-0442

Hex L-Stop Nut 1/4-20 Thd.

$6.99

$

In Stock, only 4 left!

0

28

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

29

White Outdoor 720-0274

Grip - Handle

$11.99

$

In Stock, Qty 11

0

?31

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

35

White Outdoor 731-1645A

Clutch Handle Holder
(Superseded to 931-1645B)

$16.99

$

In Stock, only 2 left!

0

36

White Outdoor 720-0269

Grip - Clutch

$4.99

$

In Stock, only 1 left!

0

38

White Outdoor 686-0083

Clutch Handle Ass'y.
(Superseded to 686-0083-0637)

Variations

White Outdoor 686-0083-0637

Clutch Handle Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0189

Hex Bolt 5/16-18 x 3" Lg.

$6.49

$

In Stock, Qty 5

0

40

White Outdoor 649-0022A

Longhorn Handle Ass'y.

Variations

White Outdoor 649-0022A-0480

HANDLE ASSY-LONGHORN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 649-0022A-0498

HANDLE ASSY-LONGHORN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 649-0022A-0606

HANDLE ASSY-LONGHORN - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 649-0022A-0638

HANDLE ASSY-LONGHORN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 649-0022A-0662

HANDLE ASSY-LONGHORN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 649-0022A-0665

HANDLE ASSY-LONGHORN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 649-0022A-0687

No Longer Available HANDLE ASSY-LONGHO - PINE GREEN (0687)

$

$

Not available

$

$

42

White Outdoor 746-0918

Clutch Control Cable
(Superseded to 946-0918)

$30.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-1236

Carr. Bolt 5/16-18 x 1" Lg.

Note: (Special)

$6.99

$

In Stock, only 4 left!

0

45

White Outdoor 736-0242

Wash. Bell. .340" ID x .872" OD

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 720-0195

Hand Knob

$15.99

$

Usually ships in 3-6 days

0

47

White Outdoor 749-0915A

Engine Tubing Brace

Note: (For model 340)

Variations

White Outdoor 749-0915A-0637

No Longer Available BRACE-ENGINE TUBIN - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 749-1082

Engine Tubing Brace

Note: (For model 345)

Variations

White Outdoor 749-1082-0637

HANDLE BRACE ENGIN - POWDER BLACK (0637)

$

$

Not available

$

$

48

White Outdoor 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 710-0641

Hex Bolt 1/4-20 x 2.25" Lg.

$4.49

$

In Stock, only 2 left!

0

52

White Outdoor 738-0934

Shld. Bolt
(Superseded to 738-0934A)

$7.99

$

Usually ships in 3-6 days

0

53

White Outdoor 710-0604

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 710-0602

Hex Wash. Hd. TT-Tap Scr. 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 786-0159

Engine Brkt.

Note: (For model 340)

$

$

Not available
