RB-500 (215-340-190) - White Outdoor Roto Boss Tiller (1995) Tiller Illustration (Part 2) Parts Diagram

Roto Boss Tiller

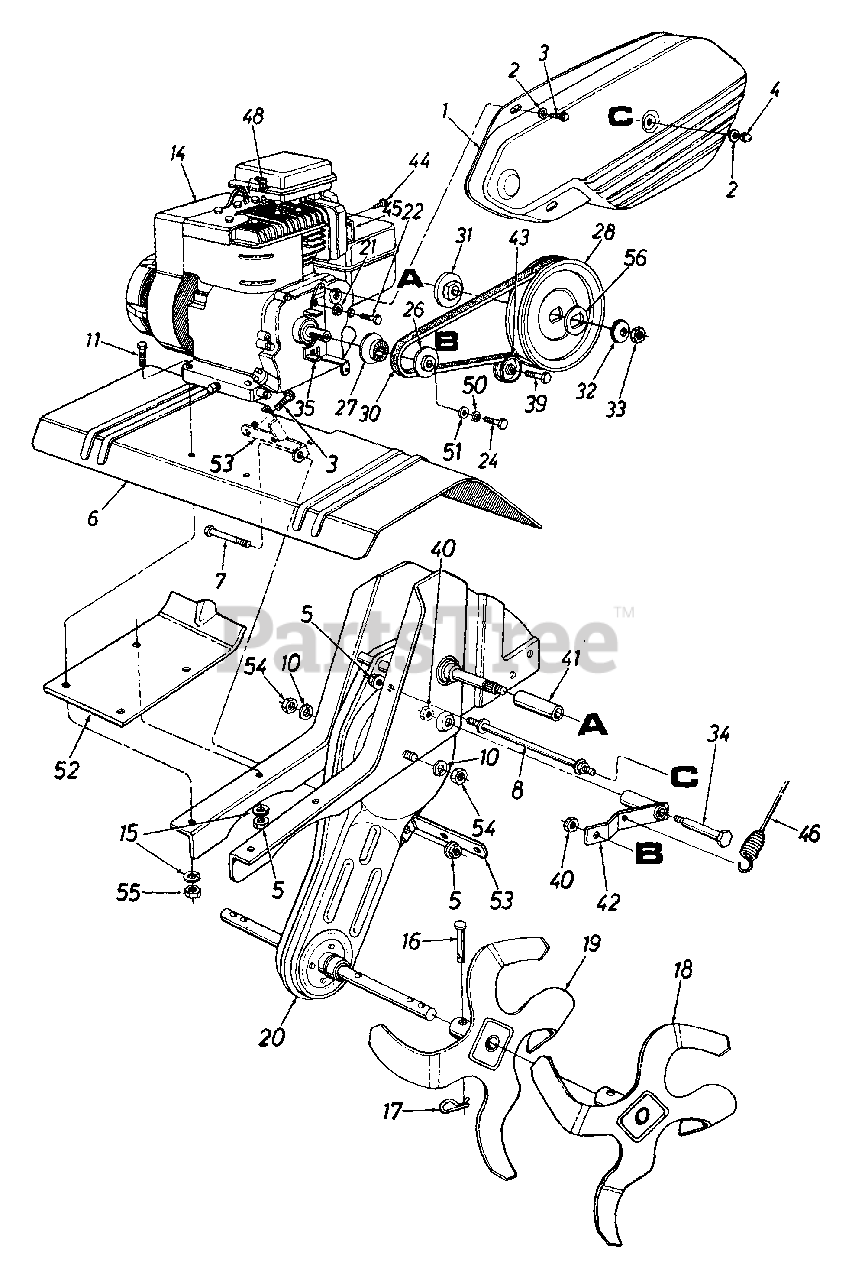

Tiller Illustration (Part 2) Parts Diagram

  • Title

1

White Outdoor 786-0036

Belt Cover
(Superseded to 786-0056)

Variations

White Outdoor 786-0036-0638

COVER-BELT W/O REV - MTD/TROY-BILT RED (0638)

$92.99

$

In Stock, only 1 left!

0

White Outdoor 786-0036-0662

COVER-BELT W/O REV - OYSTER GRAY (0662)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0036-0498

COVER-BELT W/O REV - OLD CUB YELLOW (0498)

$93.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0036-0637

COVER-BELT W/O REV - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0036-0650

COVER-BELT W/O REV - RED METALLIC (0650)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0036-0665

COVER-BELT W/O REV - YARDMAN GREEN (0665)

$86.99

$

Usually ships in 3-6 days

0

White Outdoor 786-0036-0480

W/O REV. BELT COVE - BRILLIANT GREEN (0480)

$

$

Not available

$75.99

$

Usually ships in 3-6 days

0

2

White Outdoor 736-3020

Fl-Wash. .266" I.D. x .625" O.D.

$6.99

$

In Stock, Qty 9

0

3

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 712-0392

Hex L-Stop Nut 1/4-28 Thd.

$6.99

$

In Stock, only 1 left!

0

5

White Outdoor 712-3004A

Hex Flange Top L-Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 786-0035

Tine Shield

Variations

White Outdoor 786-0035-0480

SHIELD-TINE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 786-0035-0498

SHIELD-TINE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 786-0035-0637

TINE SHIELD RED - POWDER BLACK (0637)

$

$

Not available

White Outdoor 786-0035-0638

TINE SHIELD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 786-0035-0662

SHIELD-TINE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 786-0035-0665

SHIELD-TINE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 786-0035-0667

No Longer Available SHIELD-TINE - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

7

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 711-0919

Belt Cover Bolt

$19.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

11

White Outdoor 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

14

Engine

$

$

Not available

15

White Outdoor 736-0170

Spec. L-Nut 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

16

White Outdoor 711-0599

Clevis Pin .375" Dia. x 1.75" Lg.
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

17

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

18

White Outdoor 642-0005

Outer Tine Ass'y. - L.H.
(Superseded to 642-0005-0637)

Variations

White Outdoor 642-0005-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

White Outdoor 642-0004

Outer Tine Ass'y. - R.H.
(Superseded to 642-0004-0637)

Note: Not shown

Variations

White Outdoor 642-0004-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

19

White Outdoor 642-0003

Inner Tine Ass'y. - L.H.
(Superseded to 642-0003-0637)

Variations

White Outdoor 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

White Outdoor 642-0002

Inner Tine Ass'y. - R.H.
(Superseded to 642-0002-0637)

Note: Not shown

Variations

White Outdoor 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

20

White Outdoor 686-0009

Chain Case Ass'y. Comp.
(Superseded to 986-0091C)

Note: Available Only as Comp. Ass'y.

$517.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

24

White Outdoor 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

26

White Outdoor 756-0972

Outer Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

27

White Outdoor 756-0971

Inner Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

28

White Outdoor 756-0585

Fl-Pulley 6" Dia.

$41.99

$

Usually ships in 3-6 days

0

30

White Outdoor 754-0428

"V"-Belt
(Superseded to 954-0428)

$34.99

$

In Stock, only 1 left!

0

31

White Outdoor 748-0350

Pulley Mounting Adapter
(Superseded to 948-0350)

$21.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0112

Bell-Wash. .535" I.D. x 1.5" O.D.

$9.99

$

Usually ships in 3-6 days

0

33

White Outdoor 712-3029

Hex Jam Nut 1/2-20 Thd. (Gr. 5)

$6.99

$

In Stock, Qty 6

0

34

White Outdoor 738-0102

Shld. Bolt .498" Dia. x 1.45" Lg.

$9.99

$

In Stock, Qty 10

0

35

White Outdoor 786-0039

Belt Cover Brkt.
(Superseded to 786-0039B-0637)

Variations

White Outdoor 786-0039-0637

Belt Cover Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

?38

White Outdoor 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

39

White Outdoor 710-0723

Hex Cap Bolt 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

40

White Outdoor 712-0266

Hex Cent. Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 750-0892

Spacer .64" I.D. x 2.4" Lg.
(Superseded to 950-0892)

$11.99

$

Usually ships in 3-6 days

0

42

White Outdoor 686-0011

Tine Idler Brkt. Ass'y.

$

$

Not available

43

White Outdoor 756-0199

Fl-Idler 2" O.D.

$25.99

$

In Stock, only 2 left!

0

44

White Outdoor 710-0783

Hex Self-Tap Scr. #8-32 x .38" Lg.

$

$

Not available

45

White Outdoor 751-0233

Muffler Deflector
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

46

White Outdoor 746-0918

Clutch Control Cable
(Superseded to 946-0918)

$30.99

$

Usually ships in 3-6 days

0

48

White Outdoor 735-0639

Spark Plug Boot

Note: Optional

$

$

Not available

50

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

52

White Outdoor 786-0047

Engine Plate

Variations

White Outdoor 786-0047-0637

No Longer Available PLATE-ENGINE - POWDER BLACK (0637)

$

$

Not available

$

$

53

White Outdoor 786-0053

Tine Shield Support
(Superseded to 786-0053-0637)

Variations

White Outdoor 786-0053-0637

Tine Shield Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

54

White Outdoor 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 736-0312

Bearing Retainer Washer

$3.99

$
