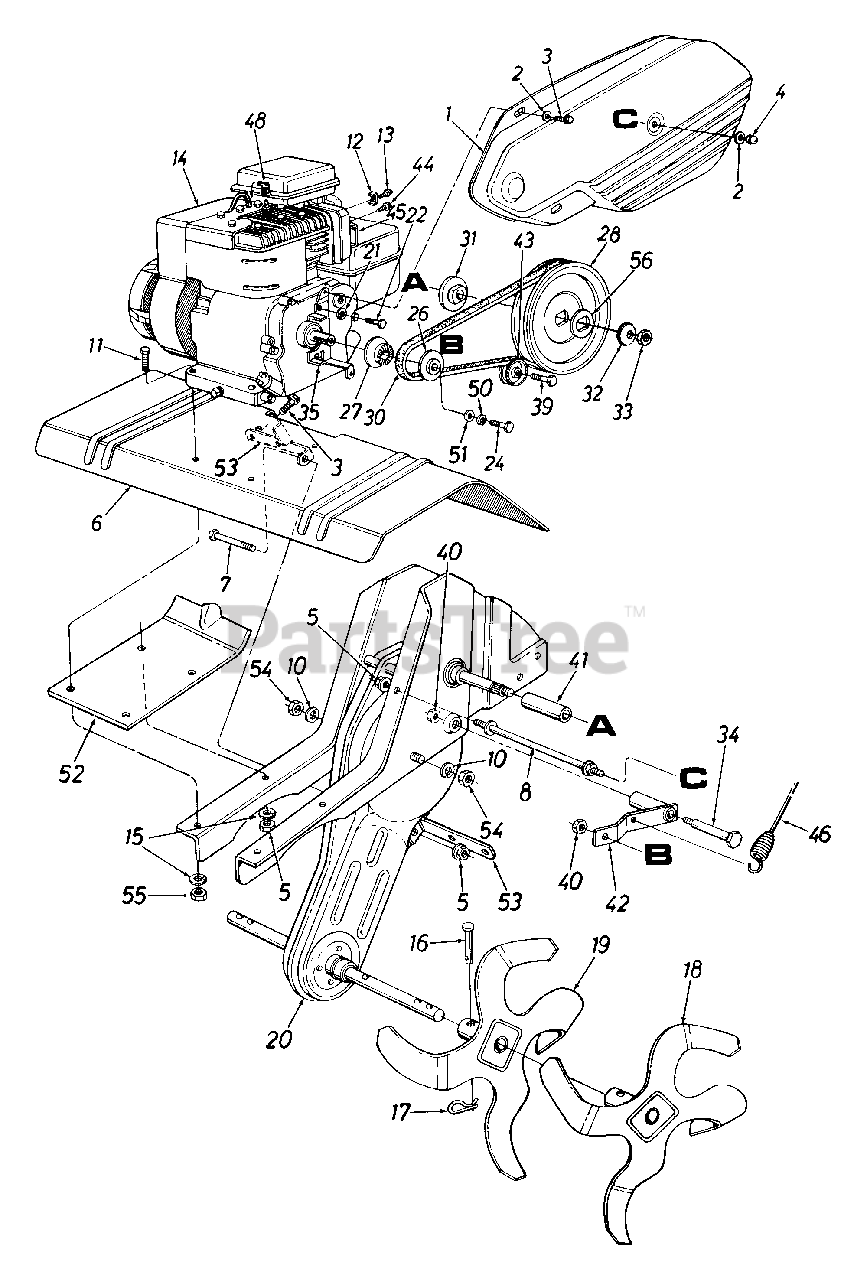

RB-500 (214-340-190) - White Outdoor Roto Boss Tiller (1994) Engine, Tine & Chain Case Assemblies Parts Diagram

Roto Boss Tiller

Engine, Tine & Chain Case Assemblies Parts Diagram

  • Title

1

MTD 786-0056

Belt Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0056-0638

COVER-BELT W/O REV - MTD/TROY-BILT RED (0638)

$92.99

$

In Stock, only 1 left!

0

MTD 786-0056-0662

COVER-BELT W/O REV - OYSTER GRAY (0662)

$86.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0498

COVER-BELT W/O REV - OLD CUB YELLOW (0498)

$93.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0637

COVER-BELT W/O REV - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0650

COVER-BELT W/O REV - RED METALLIC (0650)

$86.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0665

COVER-BELT W/O REV - YARDMAN GREEN (0665)

$86.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0709

COVER-BELT W/O REV - MASTERCRAFT GREEN (0709)

$86.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0721

COVER-BELT W/O REV - SEARS RED (0721)

$86.99

$

Usually ships in 3-6 days

0

MTD 786-0056-4021

COVER-BELT W/O REV - CUB YELLOW 2 (4021)

$93.99

$

Usually ships in 3-6 days

0

MTD 786-0056-4044

COVER-BELT W/O REV - CRAFTSMAN RED (4044)

$86.99

$

Usually ships in 3-6 days

0

MTD 786-0056-0480

W/O REV. BELT COVE - BRILLIANT GREEN (0480)

$

$

Not available

$75.99

$

Usually ships in 3-6 days

0

2

MTD 936-3020

Fl-Wash. .266" I.D. x .625" O.D.
(Superseded to 736-3020)

$

$

Not available

3

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-0392

Hex L-Stop Nut 1/4-28 Thd.

$6.99

$

In Stock, only 1 left!

0

5

MTD 712-3004A

Hex Flange Top L-Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

6

MTD 786-0035A

Tine Shield

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0035A-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0035A-0480

No Longer Available SHIELD-TINE BRILLI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0035A-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 786-0035A-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 786-0035A-0662

Tine Shield - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0035A-0665

No Longer Available SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 786-0035A-0667

No Longer Available SHIELD-TIN - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 786-0035A-0709

No Longer Available SHIELD-TIN - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

7

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-0919

Belt Cover Bolt

$19.99

$

Usually ships in 3-6 days

0

10

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

11

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 11

0

12

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

13

MTD 710-0899A

Hex Sems Scr. #10-32 x .62" Lg.

$6.99

$

Usually ships in 3-6 days

0

14

Engine

$

$

Not available

15

MTD 936-0170

Spec. L-Nut 5/16" I.D.
(Superseded to 736-0170)

$

$

Not available

16

MTD 711-0679A

Clevis Pin .375" Dia. x 1.75" Lg.

$14.99

$

In Stock, only 2 left!

0

17

MTD 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

18

MTD 642-0005-0637

Outer Tine Ass'y. - L.H.

$60.99

$

In Stock, only 2 left!

0

18

MTD 642-0004-0637

Outer Tine Ass'y. - R.H.

Note: Not shown

$60.99

$

In Stock, Qty 12

0

19

MTD 642-0003-0637

Inner Tine Ass'y. - L.H.

$60.99

$

In Stock, Qty 12

0

19

MTD 642-0002-0637

Inner Tine Ass'y. - R.H.

Note: Not shown

$60.99

$

In Stock, only 1 left!

0

20

MTD 986-0091

Chain Case Ass'y. Comp.
(Superseded to 986-0091C)

Note: Available Only as Comp. Ass'y.

$517.99

$

Usually ships in 3-6 days

0

21

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

22

MTD 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

24

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

26

MTD 756-0972

Outer Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

27

MTD 756-0971

Inner Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

28

MTD 756-0585

Fl-Pulley 6" Dia.

$41.99

$

Usually ships in 3-6 days

0

30

MTD 954-0428

V - Belt

$34.99

$

In Stock, only 1 left!

0

31

MTD 948-0350

Pulley Mounting Adapter

$21.99

$

Usually ships in 3-6 days

0

32

MTD 736-0112

Bell - Wash..535" I.D. x 1.5" O.D.

$9.99

$

Usually ships in 3-6 days

0

33

MTD 712-3029

Hex Jam Nut 1/2-20 Thd. (Gr. 5)

$6.99

$

In Stock, Qty 6

0

34

MTD 938-0102

Shld. Bolt .498" Dia. x 1.45" Lg.
(Superseded to 738-0102)

$

$

Not available

35

MTD 786-0039B-0637

Belt Cover Brkt.

$47.99

$

Usually ships in 3-6 days

0

38

MTD 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, Qty 5

0

39

MTD 710-0723

Hex Cap Bolt 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

40

MTD 712-0266A

Hex Cent. Jam Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

41

MTD 950-0892

Spacer .64" I.D. x 2.4" Lg.

$11.99

$

Usually ships in 3-6 days

0

42

MTD 686-0011

Tine Idler Brkt. Ass'y.

Note: NLA

$

$

Not available

43

MTD 756-0199

Fl-Idler 2" O.D.

$25.99

$

In Stock, only 1 left!

0

44

MTD 710-0783

Hex Self - Tap Scr. #8-32 x .38" Lg.

Note: NLA

$

$

Not available

45

MTD BS-796956

Muffler Deflector

$10.99

$

In Stock, only 1 left!

0

46

MTD 746-0879

Clutch Control Cable

$

$

Not available

48

MTD 735-0639

Spark Plug Boot

Note: Optional

$

$

Not available

50

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

51

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

Usually ships in 3-6 days

0

52

MTD 786-0047

Engine Plate

Note: NLA

Variations

MTD 786-0047-0637

No Longer Available PLATE-ENGI - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 786-0053-0637

Tine Shield Support

$10.99

$

Usually ships in 3-6 days

0

54

MTD 912-0240

Hex Nut 7/16-20 Thd.

$4.49

$

In Stock, Qty 20+

0

55

MTD 912-3010

Hex Nut 5/16-18 Thd.
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0312

Bearing Retainer Washer

$3.99

$

Usually ships in 3-6 days

0
