RB-310 (216-031-190) - White Outdoor Roto Boss Tiller (1986) Tiller Assembly Parts Diagram

Roto Boss Tiller

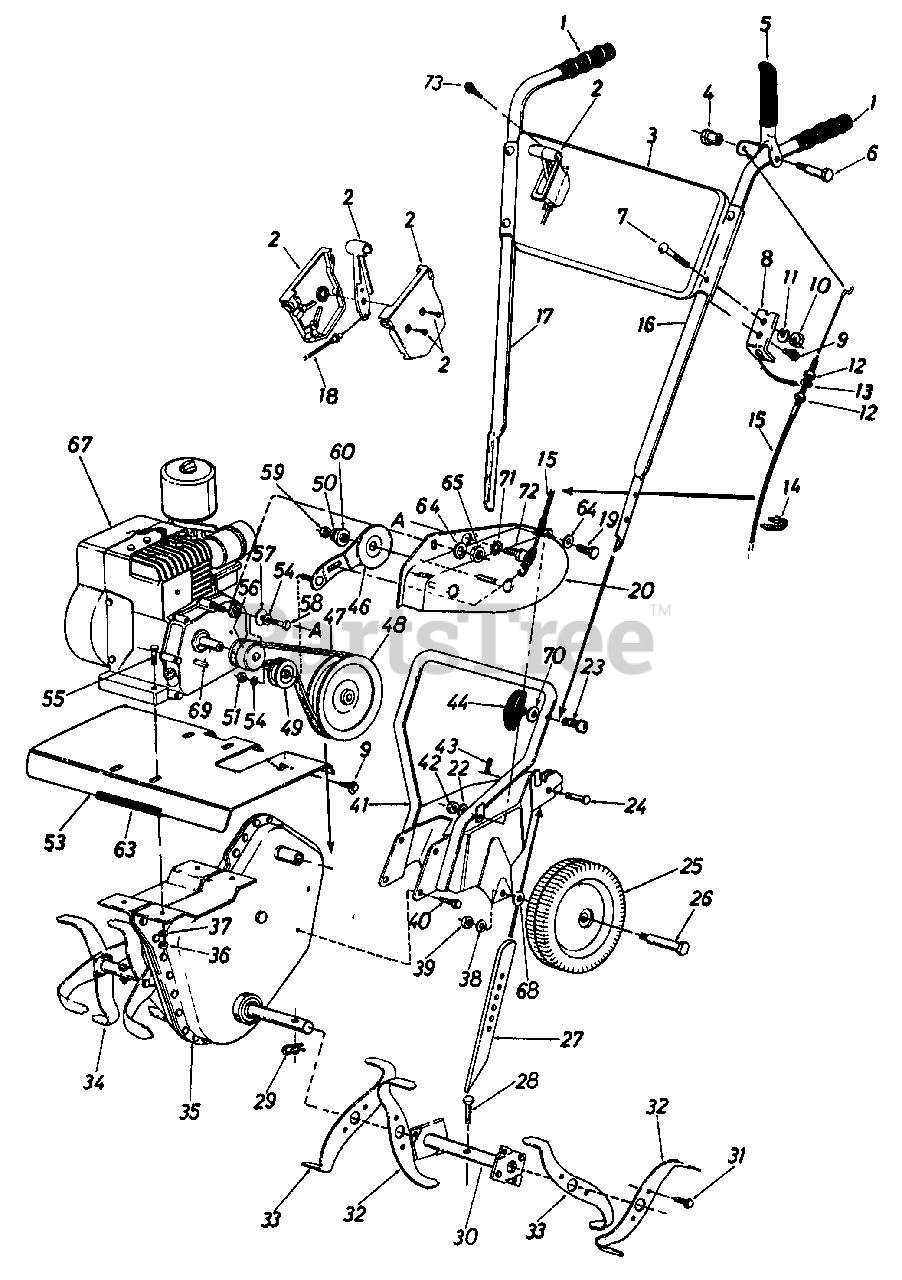

Tiller Assembly Parts Diagram

  • Title

1

White Outdoor 720-0204

Grip

$13.99

$

Usually ships in 3-6 days

0

2

White Outdoor 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

In Stock, only 2 left!

0

3

White Outdoor 784-0036

Handle Panel

$

$

Not available

4

White Outdoor 738-0561

Shoulder Nut
(Superseded to 938-0561)

$9.49

$

In Stock, only 2 left!

0

5

White Outdoor 784-0007

Clutch Grip Ass'y.

$

$

Not available

6

White Outdoor 738-0572

Shoulder Bolt 3/8 x 1.160" Lg.

$7.99

$

Usually ships in 3-6 days

0

7

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.*

$3.99

$

In Stock, Qty 13

0

8

White Outdoor 15093

Cable Support Bracket
(Superseded to 15093C)

$

$

Not available

9

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

11

White Outdoor 736-0119

L-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

15

White Outdoor 746-0509

Clutch Control Cable
(Superseded to 946-0926)

$42.99

$

In Stock, only 2 left!

0

16

White Outdoor 749-0631

Upper Handle-L.H.

Variations

White Outdoor 749-0631-0637

No Longer Available HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 749-0630

Upper Handle-R.H.

Variations

White Outdoor 749-0630-0637

No Longer Available HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 746-0636

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

19

White Outdoor 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

20

784-0018

Belt Cover Ass'y.

$

$

Not available

22

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

White Outdoor 710-0405

Curved Hd. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

24

White Outdoor 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

25

White Outdoor 734-0840

Wheel Ass'y. Comp. 7.0" x 1 .5

$

$

Not available

26

White Outdoor 738-0126

Shoulder Bolt
(Superseded to 738-0213)

$7.99

$

In Stock, only 2 left!

0

27

White Outdoor 04764

Depth Bar

Variations

White Outdoor 04764-0637

Depth Stake - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 711-0702

Clevis Pin .31" Dia. x 1.50" Lg.

$

$

Not available

29

White Outdoor 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 04918

Tine Adapter Ass'y.
(Superseded to 04918-0637)

Variations

White Outdoor 04918-0637

ADAPTER ASSY-TINE - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 04923

Tine Blade-L.H.
(Superseded to 04923-0637)

Variations

White Outdoor 04923-0637

TINE LH BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 04922

Tine Blade-R.H.

Variations

White Outdoor 04922-0637

TINE RH BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 04921

Tine Ass'y. Comp.

Variations

White Outdoor 04921-0637

TINE ASSY-COMP - POWDER BLACK (0637)

$

$

Not available

$

$

35

04924

Chain Case Ass'y. Comp.

$

$

Not available

36

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

37

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 736-0217

L-Wash. 3/8" I.D. (Heavy Duty)

$4.49

$

In Stock, Qty 9

0

39

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

40

White Outdoor 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

41

White Outdoor 04762

Support Brkt. Ass'y.

Variations

White Outdoor 04762-0637

No Longer Available BRACKET ASSY-SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

43

White Outdoor 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

46

White Outdoor 784-0016

Idler Arm Ass'y.

$

$

Not available

47

White Outdoor 754-0216

Belt 3/8" x 29" Lg.
(Superseded to 954-0216)

$30.99

$

In Stock, only 1 left!

0

48

White Outdoor 756-0287

Chain Case Pulley 5-1/2 x 1/2"

$

$

Not available

49

White Outdoor 756-0199

Fl-ldler 2"

$25.99

$

In Stock, only 1 left!

0

50

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 712-0116

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

53

04765

Tine Shield

$

$

Not available

54

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

56

White Outdoor 756-0286

Engine Pulley 3/8 V x .75 I.D. x 2" O.D.

$

$

Not available

57

White Outdoor 736-0258

Fl-Wash. .385" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 3 left!

0

58

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

59

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

60

White Outdoor 736-0289

Shld. Spacer .50" Dia. x .133
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

63

White Outdoor 731-0511

Trim Strip-4"

$3.99

$

Usually ships in 3-6 days

0

64

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .500" O.D.

$4.99

$

In Stock, only 4 left!

0

65

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

67

Engine

$

$

Not available

68

White Outdoor 736-0219

Bell-Wash.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

69

White Outdoor 714-0122

Square Key 3/16 x 3/4" Lg.

$3.99

$

In Stock, Qty 15

0

70

White Outdoor 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 736-0190

Ext. L-Wash. 1/2" I.D.
(Superseded to 736-0114)

$

$

Not available

72

White Outdoor 710-0121

Hex Bolt 1/2-20 x .75" Lg.

$

$

Not available

73

White Outdoor 710-0779

Self-Tap Scr. #10 x .5" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0
