RB-210 (212-020-190) - White Outdoor Roto Boss Tiller (1992) Handle Ass'y & Engine Mounting Plate Parts Diagram

Roto Boss Tiller

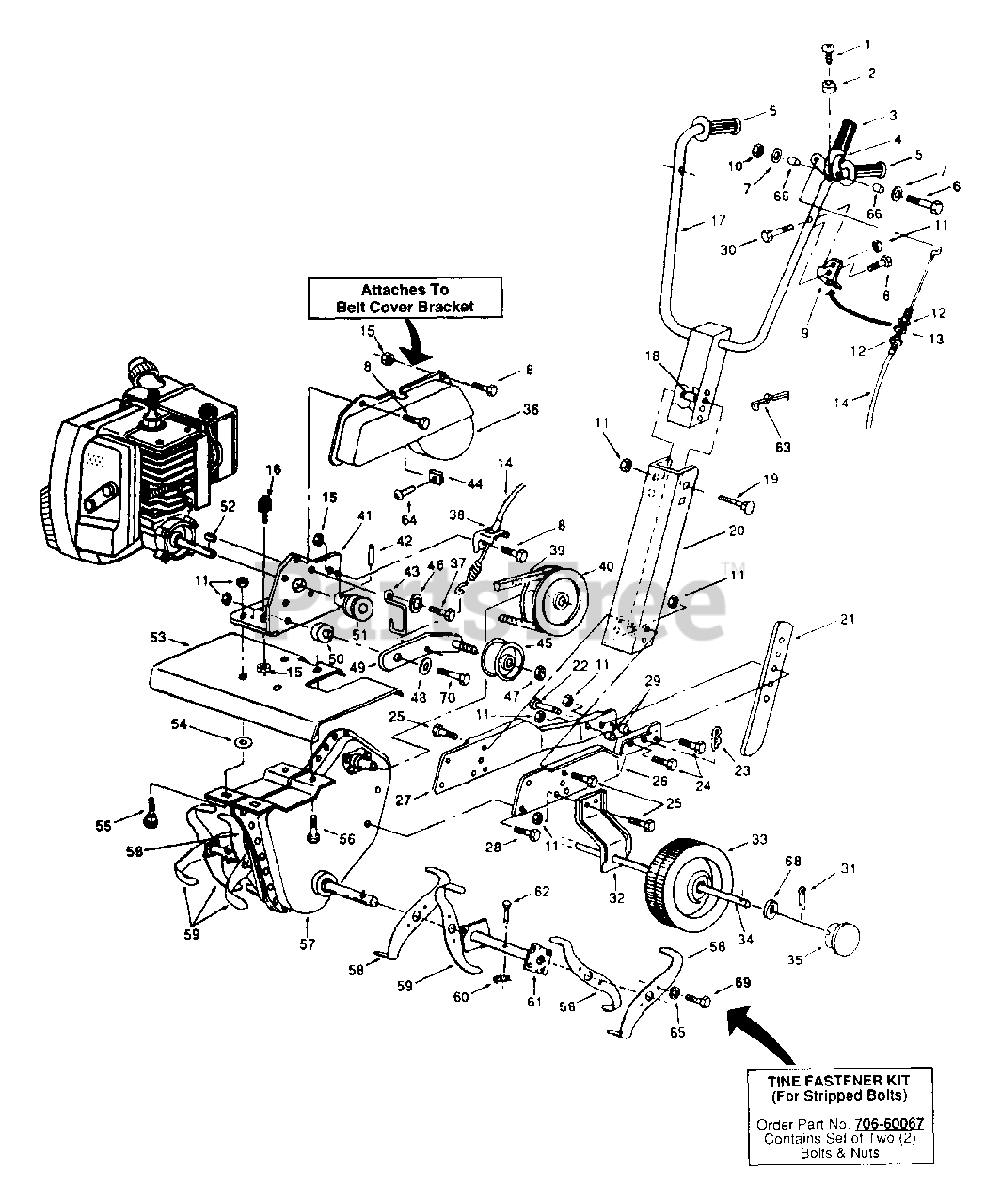

Handle Ass'y & Engine Mounting Plate Parts Diagram

  • Title

1

White Outdoor 710-1167

Tap Scr. #10-16 x 1/2

$

$

Not available

2

White Outdoor 720-0263

Rubber Bumper

$

$

Not available

3

White Outdoor 731-0473

Vinyl Grip

$4.49

$

Usually ships in 3-6 days

0

4

White Outdoor 686-0002

Clutch Lever Ass'y.
(Superseded to 686-0002-0637)

Variations

White Outdoor 686-0002-0637

LEVER ASSY-CLUTCH - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

5

White Outdoor 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

6

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2"

$7.49

$

Usually ships in 3-6 days

0

7

White Outdoor 736-3090

Fl-Wash. 1/4" I.D.

$6.99

$

In Stock, Qty 11

0

8

White Outdoor 710-1201

Hex Tap Scr. 1/4-20 x 1/2

$

$

Not available

9

White Outdoor 15093C

Cable Bracket

$

$

Not available

10

White Outdoor 712-0324

Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

White Outdoor 712-0429

Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

13

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 746-0509

Clutch Control Cable
(Superseded to 946-0926)

$42.99

$

In Stock, only 2 left!

0

15

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

16

MTD 722-3004

Bumper
(Superseded to IH-61510-C1)

$27.99

$

In Stock, only 3 left!

0

17

White Outdoor 649-0153

Handle Ass'y.

Variations

White Outdoor 649-0153-0637

KIT-UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 750-0848

Spacer

$

$

Not available

19

White Outdoor 710-0572

Carr. Bolt 5/16-18 x 2-1/2"

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 786-0013

Handle Channel - Frame

Variations

White Outdoor 786-0013-0637

No Longer Available FRAME-CHANNEL HDL - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 04764

Depth Stake

Variations

White Outdoor 04764-0637

Depth Stake - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

23

White Outdoor 714-0145

Hairpin Cotter

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 710-0759

Hex Bolt 5/16-18 x 5/8"

$6.99

$

Usually ships in 3-6 days

0

26

White Outdoor 786-0011

L.H. Frame Half

Variations

White Outdoor 786-0011-0637

L.H. Frame Half - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 786-0010

R.H. Frame Half

Variations

White Outdoor 786-0010-0637

FRAME HALF-RH - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0607

Hex Tap. Scr. 5/16-18 x 1/2"

$6.99

$

In Stock, Qty 11

0

29

White Outdoor 750-0845

Spacer
(Superseded to 750-0808)

$

$

Not available

30

White Outdoor 710-1090

Hex Bolt 5/16-18 x 1-1/4"

$3.99

$

Usually ships in 3-6 days

0

31

White Outdoor 714-3017

Cotter Pin
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

32

White Outdoor 786-0012

Wheel Bracket
(Superseded to 786-0012-0637)

Variations

White Outdoor 786-0012-0637

BRACKET-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 634-0013

Wheel - 6"

$

$

Not available

34

White Outdoor 738-0855

Axle - Wheel

$

$

Not available

35

White Outdoor 720-0258

Hub Cap

$

$

Not available

36

731-1249

Belt Cover

$

$

Not available

37

White Outdoor 710-0258

Hex Bolt 1/4-20 x 5/8"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

38

786-0017

Bracket - Clutch Lever

$

$

Not available

39

White Outdoor 754-0425

V-Belt (Special)
(Superseded to 954-0425)

$

$

Not available

40

White Outdoor 756-0287

Pulley - Chain Case

$

$

Not available

41

786-0048

Plate - Engine Mounting

Note: Code: N notates a new part (not previously existing)

$

$

Not available

42

White Outdoor 710-3006

Set Screw 5/16-18 x 3/8"

$4.49

$

In Stock, only 1 left!

0

43

White Outdoor 747-0797

Belt Retainer

$

$

Not available

44

White Outdoor 712-0410

Clip - Tinnerman

$

$

Not available

45

White Outdoor 756-0199

Flat Idler Pulley

$25.99

$

In Stock, only 2 left!

0

46

White Outdoor 736-0498

Int. L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 712-0116

Hex Jam L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

48

White Outdoor 736-0275

Fl-Wash. 5/16" I.D.

$6.99

$

Usually ships in 3-6 days

0

49

White Outdoor 686-0003

Idler Arm Ass'y.

$

$

Not available

50

750-0847

Pivot Spacer

$

$

Not available

51

White Outdoor 756-0596

Engine Pulley

$

$

Not available

52

White Outdoor 714-0206

Square Key 1/8 x 3/4"

$

$

Not available

53

786-0016

Tine Shield (Red)

$

$

Not available

54

White Outdoor 750-0796

Spacer

$

$

Not available

55

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1"

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 710-0118

Hex Bolt 5/16-18 x 3/4"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

57

04924A

Chain Case Ass'y. Comp.

$

$

Not available

58

White Outdoor 742-0568

R.H. Tine Blade

$

$

Not available

59

White Outdoor 742-0569

L.H. Tine Blade

$

$

Not available

60

White Outdoor 714-0149B

Hairpin Cotter

$4.49

$

In Stock, Qty 18

0

61

White Outdoor 686-0001

Adapter Ass'y. - Tine

$

$

Not available

62

White Outdoor 711-0702

Clevis Pin

$

$

Not available

63

White Outdoor 726-0306

Cable Tie - Plastic

$

$

Not available

64

White Outdoor 710-1128

Hex Sems Bolt #10-16 x 3/4 Lg.

$

$

Not available

65

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

White Outdoor 750-0846

Spacer

$

$

Not available

68

White Outdoor 736-0185

Fl-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

69

White Outdoor 710-0599

Tap Scr. 1/4-20 x 1/2"

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0
