RB-210 (211-020-190) - White Outdoor Roto Boss Tiller (1991) Chain Case Assembly Parts Diagram

Roto Boss Tiller

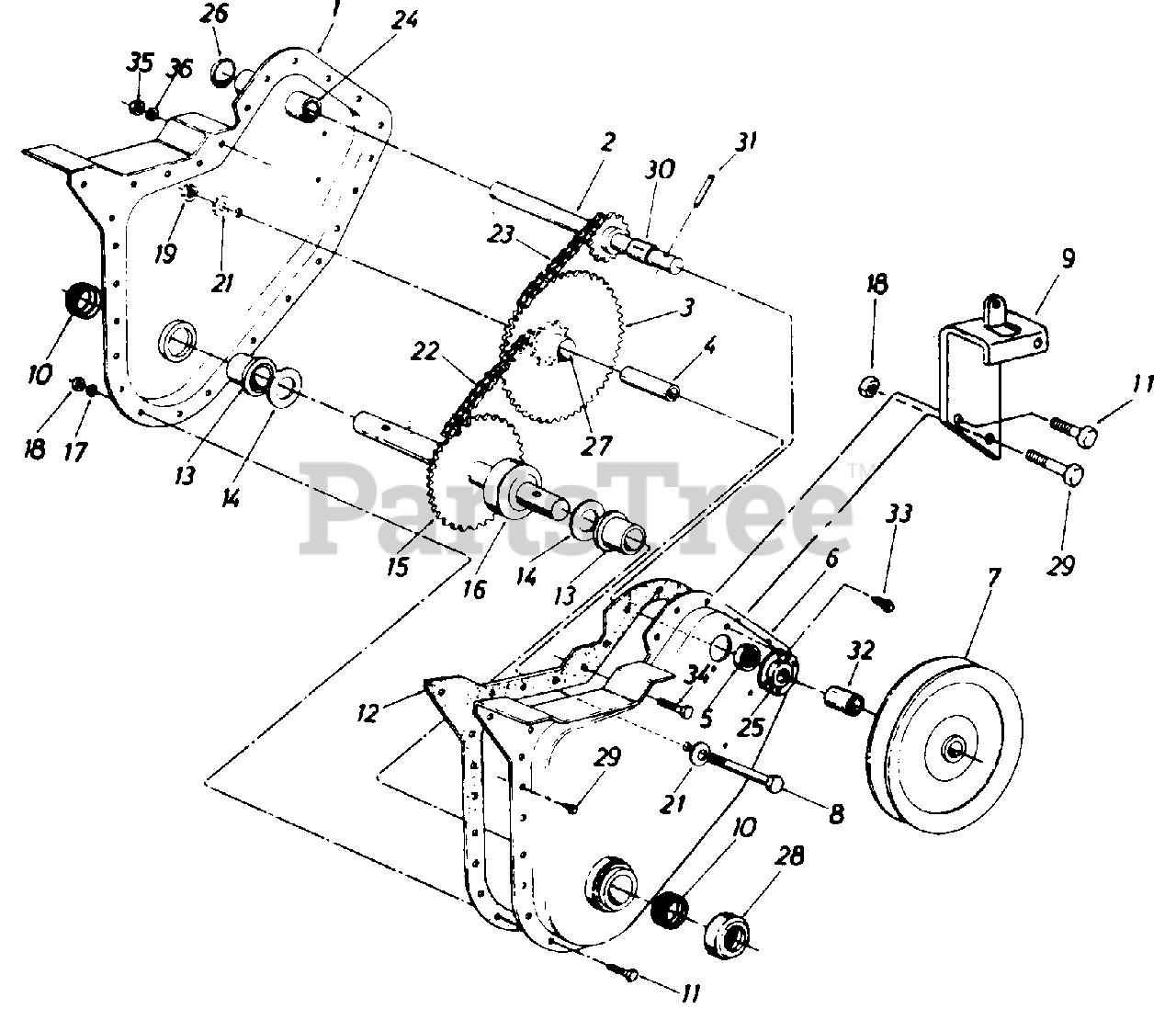

Chain Case Assembly Parts Diagram

  • Title

1

04926A

Chain Case Ass'y.-R.H.

$

$

Not available

2

White Outdoor 04756

Input Shaft Ass'y.

$

$

Not available

3

White Outdoor 04757

Hub and Sprocket Ass'y.
(Superseded to 04757A)

$

$

Not available

4

White Outdoor 750-0351

Bearing Inner Race

$

$

Not available

5

White Outdoor 741-0155

Ball Bearing
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

6

White Outdoor 15863A

Chain Case Ass'y.-L.H.
(Superseded to 686-0087-0637)

$

$

Not available

7

White Outdoor 756-0287

Pulley-Chain Case

$

$

Not available

8

White Outdoor 710-0369

Hex Bolt 3/8-24 x 2.5"*

$6.49

$

Usually ships in 3-6 days

0

9

786-0009

Fuel Tank Brkt

$

$

Not available

10

White Outdoor 721-0157

Seal

$

$

Not available

11

White Outdoor 710-0195

Hex Bolt 1/4-28 x .625"*
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

12

White Outdoor 721-0156

Gasket
(Superseded to 921-0156A)

$

$

Not available

13

White Outdoor 741-0227

Flange Brg. .879" I.D.

$11.99

$

In Stock, Qty 20+

0

14

White Outdoor 736-0265

Fl-Wash. .88" I.D. x 1.5"

$

$

Not available

15

White Outdoor 04920

Tine Shaft Ass'y.

$

$

Not available

16

White Outdoor 750-0354A

Spacer 7/8" I.D.

$

$

Not available

17

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.*

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

21

White Outdoor 736-0219

Bell-Wash. .406" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

White Outdoor 713-0215

Chain #420 '/2" Pitch 38 0 Links

$

$

Not available

White Outdoor 713-0154

#420 Master Link
(Superseded to 913-0154)

$

$

Not available

23

White Outdoor 713-0216

Chain #35 .375" Pitch 50 0 Links

$

$

Not available

White Outdoor 713-0139

#35 Master Link
(Superseded to 913-0139)

$

$

Not available

24

White Outdoor 748-0154

Bearing .62" I.D. x .813"

$

$

Not available

25

White Outdoor 05034A

Bearing Housing

$

$

Not available

26

White Outdoor 726-0164

Expansion Plug 13/16" Dia.

$

$

Not available

27

White Outdoor 741-0228

Bearing
(Superseded to 941-0228)

$

$

Not available

28

White Outdoor 731-0486

Dust Cap

$

$

Not available

29

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 750-0471

Spacer .63" I.D. x .77" O.D. x .38" Lg.
(Superseded to 950-0471)

$

$

Not available

31

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 11/2" Lg.

$9.49

$

In Stock, Qty 20+

0

32

White Outdoor 750-0550

Spacer .647 x 1.25"

$

$

Not available

33

White Outdoor 710-0653

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

34

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75"*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

36

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
