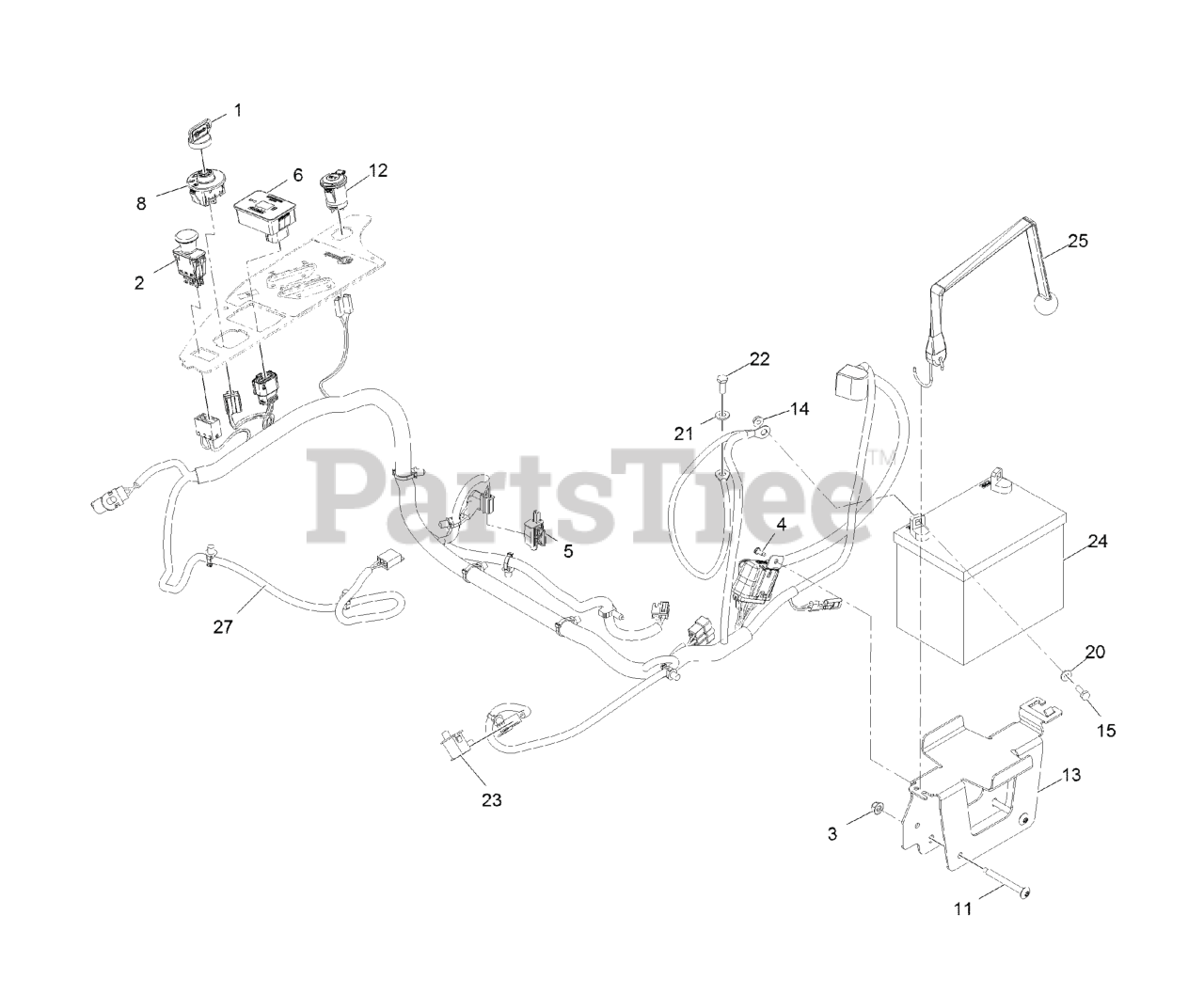

RAX730GKA604A3 - Exmark 60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V (SN: 404314159 - 406294344) (2019) Electrical Assembly Parts Diagram

60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V

Electrical Assembly Parts Diagram

  • Title

1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

1

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

2

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 20+

0

5

Exmark 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

6

Exmark 116-5609

MODULE ASM

$164.99

$

In Stock, only 1 left!

0

8

Exmark 137-4100

SWITCH-IGNITION

$28.99

$

In Stock, Qty 20+

0

11

Exmark 126-6267

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 126-6499

PORT-POWER, 12V

$15.99

$

In Stock, only 2 left!

0

13

Exmark 126-6725-03

TRAY-BATTERY

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

22

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

23

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

24

Battery

Note: Obtain locally | Not serviced separately

$

$

Not available

25

Exmark 126-7627

STRAP-BUNGEE

$13.99

$

In Stock, only 4 left!

0

27

Exmark 135-0093

HARNESS - WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$449.99

$

Usually ships in 3-6 days
