RAX730GKA604A3 - Exmark 60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V (SN: 404314159 - 406294344) (2019) Control Panel Assembly Parts Diagram

60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V

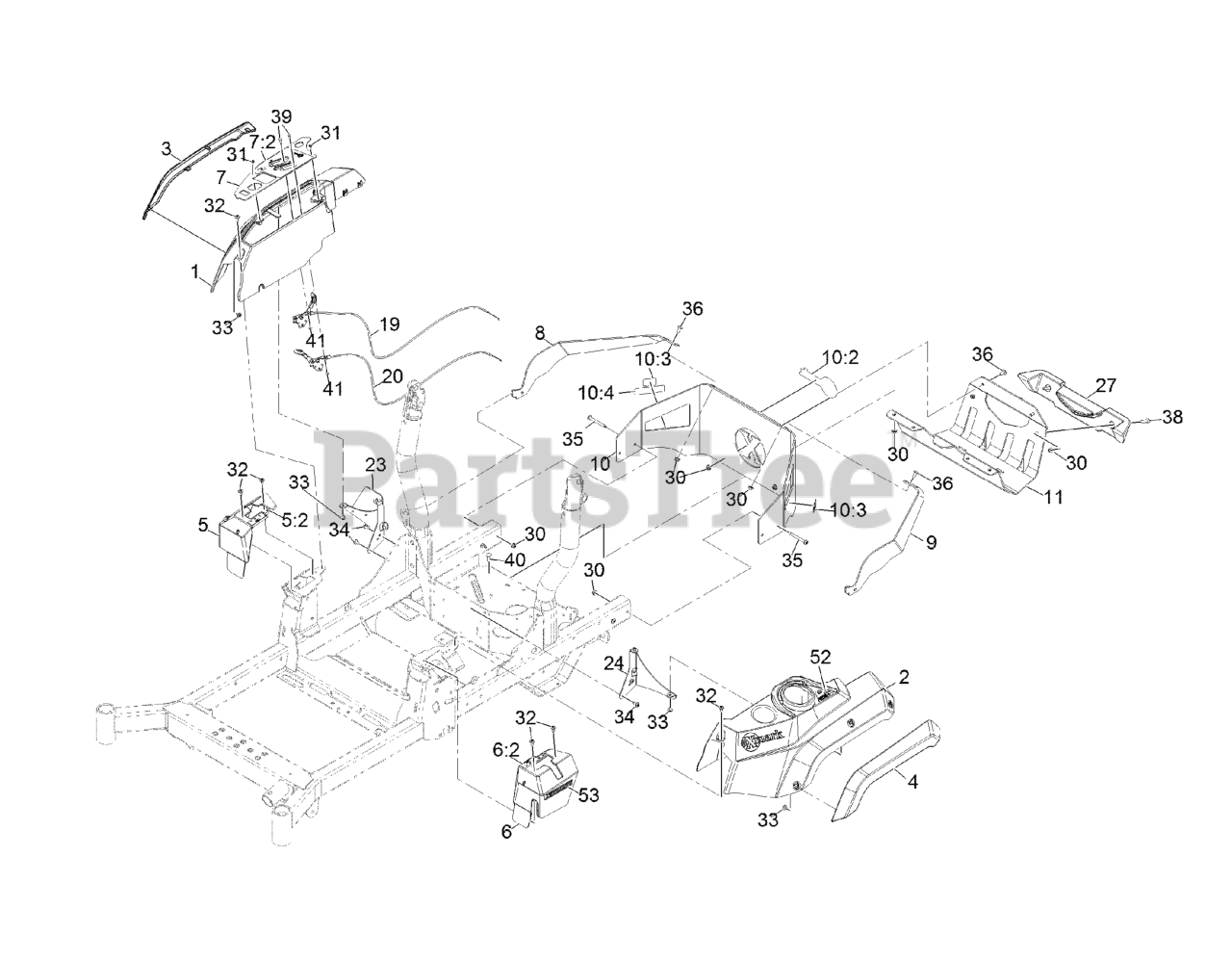

Control Panel Assembly Parts Diagram

  • Title

1

Exmark 126-4959

CONSOLE-EXMARK, RH

$60.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4960

CONSOLE, LH

$60.99

$

Usually ships in 3-6 days

0

3

Exmark 126-4741

FENDER-RH

$20.99

$

Usually ships in 3-6 days

0

4

Exmark 126-4742

FENDER-LH

$20.99

$

In Stock, Qty 5

0

5

Exmark 126-7371

COVER-CONTROL, MOTION (RH

$26.99

$

Usually ships in 3-6 days

0

5:2

Exmark 126-6183

Decal-Control, Motion (RH)

$

$

Not available

6

Exmark 126-7372

COVER-CONTROL, MOTION (LH

$26.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-6194

Decal-Control, Motion (LH)

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 126-7789

CTRL PANEL ASM W/DECAL

$30.99

$

Usually ships in 3-6 days

0

7:2

Exmark 126-6570

DECAL-CONTROL PANEL

$9.99

$

In Stock, only 1 left!

0

8

Exmark 126-6015-03

SUPPORT-UPPER, RH

$40.99

$

Usually ships in 3-6 days

0

9

Exmark 126-6016-03

SUPPORT-UPPER, LH

$40.99

$

Usually ships in 3-6 days

0

10

Exmark 126-7802

REAR GUARD ASM

$252.99

$

Usually ships in 3-6 days

0

10:2

Exmark 126-6965

DECAL-EXMARK LOGO
(Superseded to 126-6877)

$7.99

$

In Stock, Qty 9

0

10:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

10:4

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 126-7664-03

GUARD-MUFFLER
(Superseded to 135-5084-03)

$187.99

$

Usually ships in 3-6 days

0

19

Exmark 126-6945

CABLE-CONTROL, CHOKE

$36.99

$

In Stock, only 1 left!

0

20

Exmark 126-6944

CABLE-CONTROL, THROTTLE

$36.99

$

In Stock, only 2 left!

0

23

Exmark 126-9945

SUPPORT-CONSOLE, RH

$26.99

$

Usually ships in 3-6 days

0

24

Exmark 126-5532-03

BRACKET-CONSOLE, LH

$12.99

$

Usually ships in 3-6 days

0

27

Exmark 126-7418-03

WEIGHT

$226.99

$

Usually ships in 3-6 days

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 117-5036

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

32

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

33

Exmark 126-5544

SCREW-TORX

$1.49

$

In Stock, Qty 8

0

34

Exmark 126-6266

SCREW-TORX

$1.49

$

In Stock, only 2 left!

0

35

Exmark 126-6267

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

36

Exmark 126-6268

SCREW-TORX

$1.49

$

In Stock, Qty 5

0

38

Exmark 126-7439

SCREW-TORX

$2.99

$

In Stock, Qty 11

0

39

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

40

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

41

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

52

Exmark 126-9939

DECAL-FILL, FUEL

$5.49

$

Usually ships in 3-6 days

0

53

Exmark 126-9297

DECAL-X-SERIES

$6.49

$

Usually ships in 3-6 days

0
