RAX730GKA604A3 - Exmark 60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V (SN: 404314159 - 406294344) (2019) Caster Wheel and Fork Assembly Parts Diagram

60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V

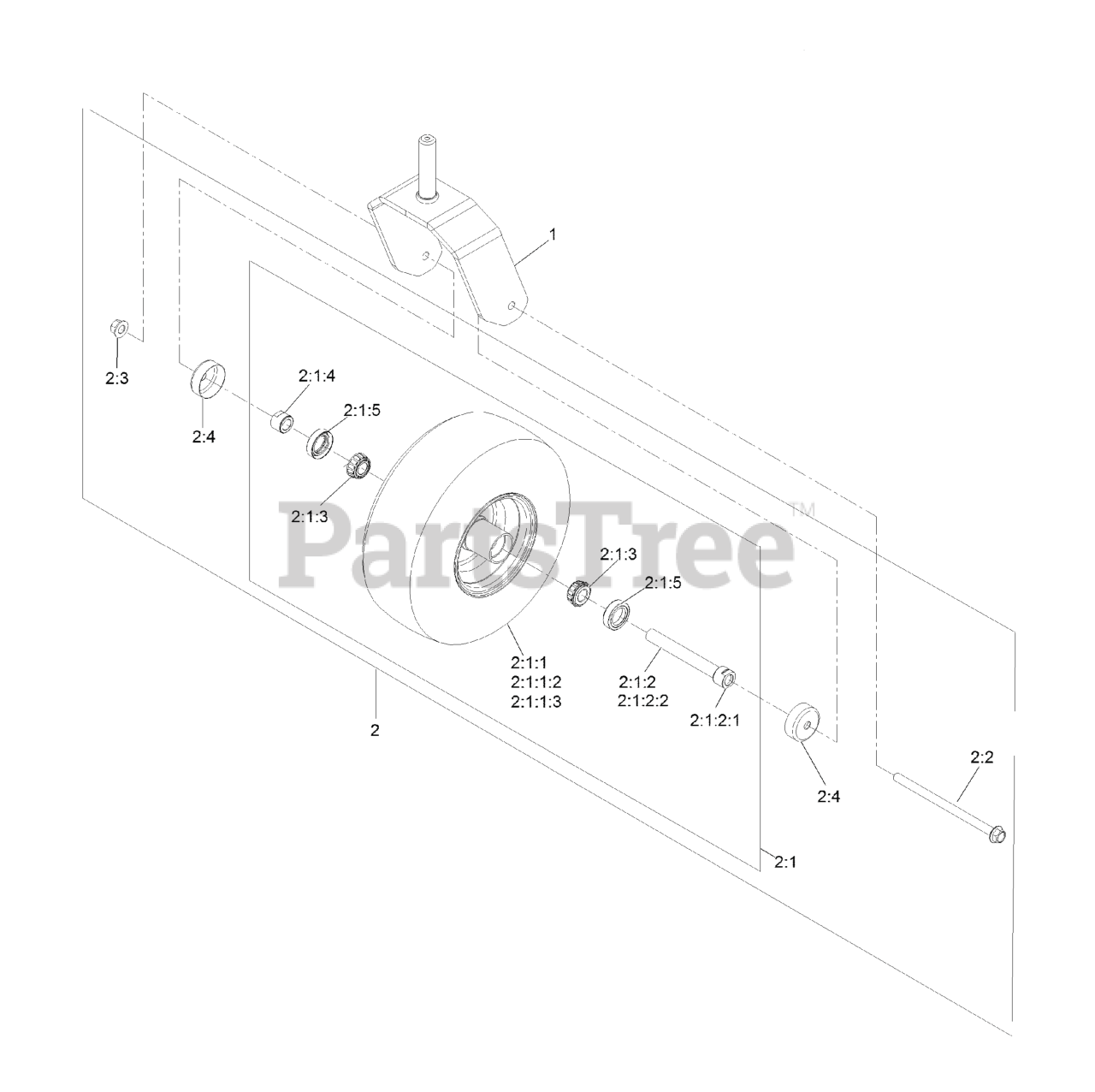

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Exmark 126-4312-01

FORK-CASTER
(Superseded to 142-7827-01)

$107.99

$

In Stock, only 1 left!

0

2

Exmark 126-7752

ASM-WHEEL BRGS AXLE 13X6.

$250.99

$

Usually ships in 3-6 days

0

2:1

ASM-Wheel And Brgs, 13X6.50-6

$

$

Not available

2:1:1

ASM-Wheel And Tire 13X6.50-6

Note: Not serviced separately

$

$

Not available

2:1:1:2

Exmark 5108

VALVE

Note: Not serviced separately

$6.99

$

In Stock, Qty 16

0

2:1:1:3

Exmark 126-5959

TIRE

$79.99

$

In Stock, only 2 left!

0

2:1:2

Exmark 126-7796

CASTER AXLE ASM

$19.99

$

Usually ships in 3-6 days

0

2:1:2:1

Exmark 126-5220

Axle, Caster

$

$

Currently unavailable

2:1:2:2

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

2:1:3

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

2:1:4

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

2:1:5

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

2:2

Exmark 126-5389

SCREW-HHF

$7.99

$

In Stock, Qty 6

0

2:3

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

2:4

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0
