RAX730GKA604A3 - Exmark 60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

60" Radius X-Series Zero-Turn Mower, Kawasaki FX730V

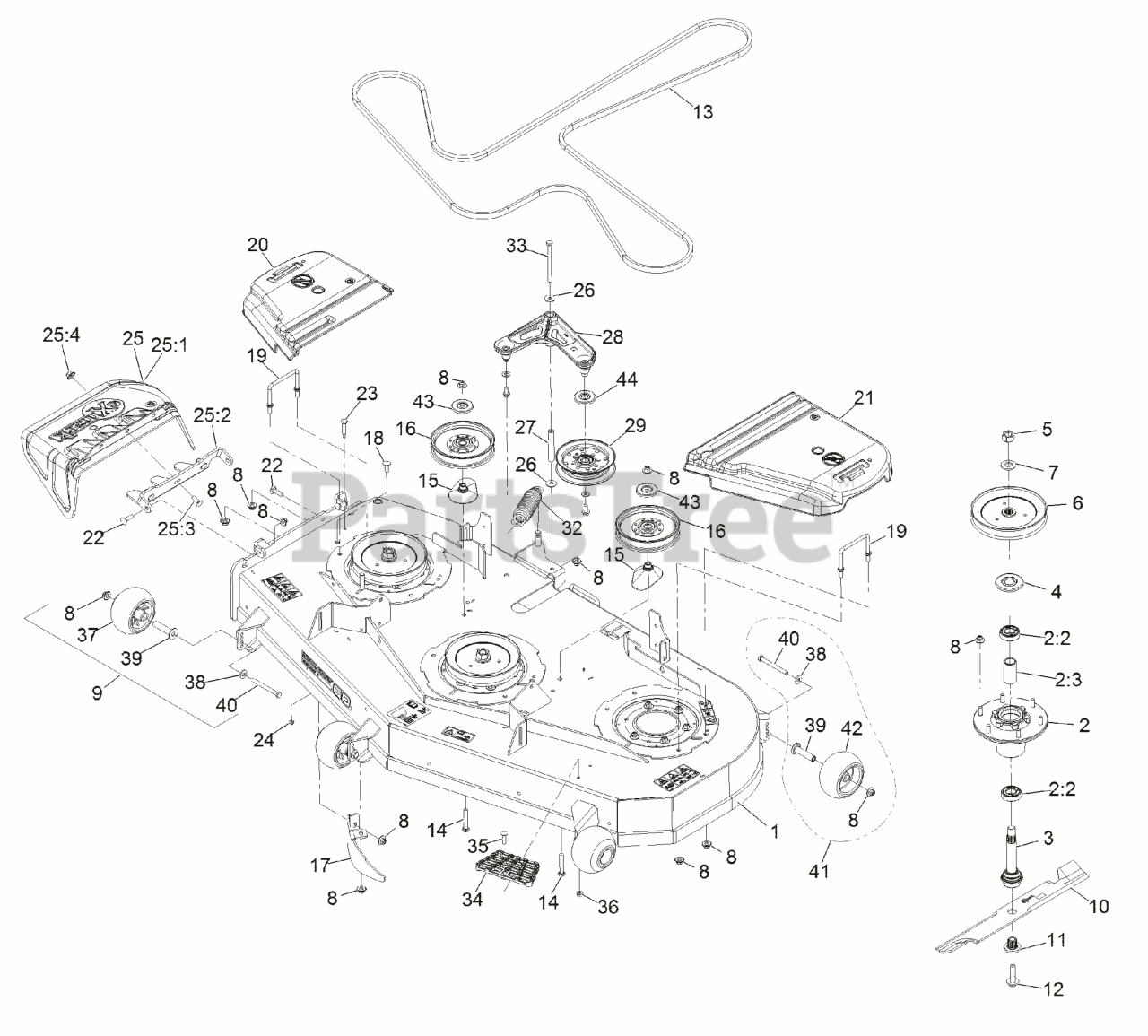

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3590

ASM-DECK W/DECALS 604

$2682.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 18

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 6

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 15

0

4

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 10

0

5

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 11

0

6

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

$68.99

$

In Stock, Qty 20+

0

7

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

8

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

10

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 5

0

10

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

10

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

10

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

10

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

11

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

12

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

13

Exmark 126-6627

BELT-V
(Superseded to 126-6627-SL)

$180.99

$

In Stock, only 3 left!

0

14

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 3 left!

0

15

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 4 left!

0

16

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$61.99

$

In Stock, Qty 10

0

17

Exmark 116-5614-01

DOGLEG - LZ60

$60.99

$

Usually ships in 3-6 days

0

18

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

19

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

20

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

21

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

22

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

23

Exmark 611792

BOLT-SHOULDER

$27.99

$

Usually ships in 3-6 days

0

24

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

25:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

25:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

25:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

25:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

26

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

27

Exmark 116-5111

BUSHING

$33.99

$

In Stock, only 1 left!

0

28

Exmark 126-0976

IDLER ARM ASM

$108.99

$

In Stock, Qty 11

0

29

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 9

0

32

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 10

0

33

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

34

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

35

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

36

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

37

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 12

0

38

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

39

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 5

0

40

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

41

Exmark 126-7840

KIT-ANTISCALP ROLLER

$49.99

$

Usually ships in 3-6 days

0

42

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+
