RAX691GKA524A3 - Exmark 52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V (SN: 408644346 - 411294211) (Rev A) (2021) Deck Assembly Parts Diagram

52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V

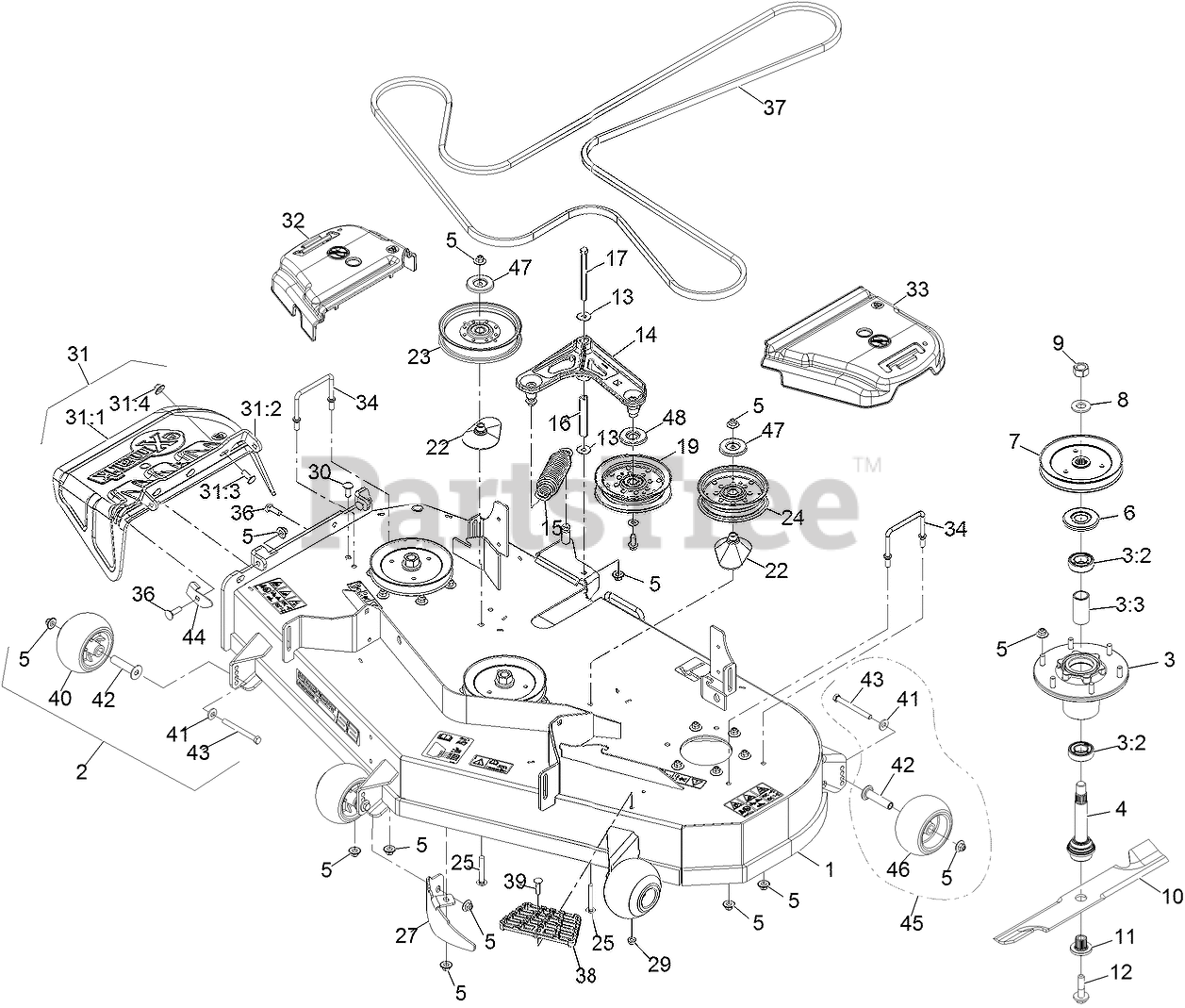

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3587

ASM-DECK W/DECALS 524

$2682.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

3

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

3:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 18

0

3:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 6

0

4

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$89.99

$

In Stock, Qty 16

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 10

0

7

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$92.99

$

In Stock, Qty 7

0

8

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0

9

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 11

0

10

Exmark 116-5175

USE 116-5175-S
(Superseded to 116-5175-S)

Note: Optional Equipment

$30.99

$

In Stock, only 4 left!

0

10

Exmark 103-6402

USE 103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

10

Exmark 103-6392

USE 103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

10

Exmark 103-6387

USE 103-6387-S
(Superseded to 103-6387-S)

Note: Optional Equipment

$31.99

$

In Stock, Qty 11

0

10

Exmark 103-6382

USE 103-6382-S
(Superseded to 103-6382-S)

Note: Optional Equipment

$36.99

$

In Stock, only 4 left!

0

11

Exmark 103-3037

BUSHING,SPLINED

Note: Torque to 50-60 ft-lb

$22.99

$

In Stock, Qty 20+

0

12

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

13

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

14

Exmark 126-0976

IDLER ARM ASM

$108.99

$

In Stock, Qty 11

0

15

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 11

0

16

Exmark 116-5111

BUSHING

$33.99

$

In Stock, only 1 left!

0

17

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

19

Exmark 126-9196

IDLER-PULLEY, FLAT

$60.99

$

In Stock, Qty 9

0

22

Exmark 109-2872

SPACER-PULLEY

$22.99

$

Usually ships in 3-6 days

0

23

Exmark 126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$61.99

$

In Stock, Qty 10

0

24

Exmark 126-9197

IDLER-PULLEY, FLAT 5.00X1

$62.99

$

In Stock, only 2 left!

0

25

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 17

0

27

Exmark 116-5814-01

BAFFLE-DOGLEG, LZ-VT52

$62.99

$

Usually ships in 3-6 days

0

29

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

30

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

31

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

31:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

31:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

31:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

31:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

33

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

34

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

36

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

37

Exmark 126-7443

USE 126-7443-SL
(Superseded to 126-7443-SL)

$169.99

$

In Stock, only 1 left!

0

38

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

39

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

40

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 12

0

41

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

42

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 5

0

43

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

44

Exmark 135-0064

STOP-DISCHARGE CHUTE

$9.99

$

Usually ships in 3-6 days

0

45

Exmark 126-7840

KIT-ANTISCALP ROLLER

$49.99

$

Usually ships in 3-6 days

0

46

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

47

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, only 3 left!

0

48

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 3 left!

0
