RAX691GKA524A3 - Exmark 52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V (SN: 404314159 - 406294344) (2019) Engine Assembly Parts Diagram

52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V

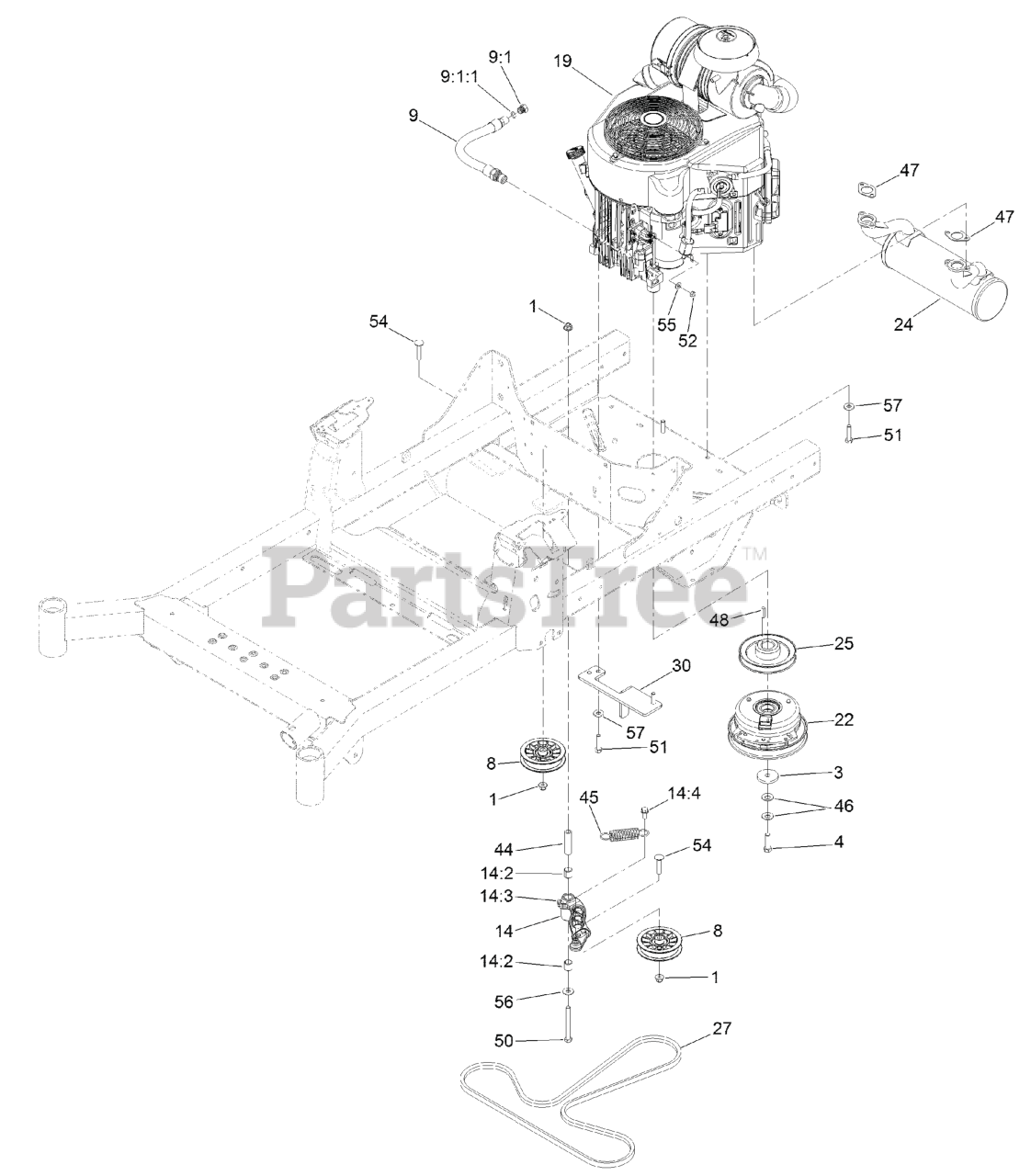

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

4

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

$5.49

$

In Stock, Qty 6

0

8

Exmark 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 9

0

9

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Torque to 23-29 ft-lb

$37.99

$

In Stock, Qty 5

0

9:1

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

9:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

14

Exmark 126-0973

IDLER ARM ASM

$86.99

$

In Stock, only 1 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

19

Engine-Kawasaki, Fx691V

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

19:1

Kawasaki 49065-7007 Engine Oil Filter

Note: Obtain parts from www.kawpowerepc.com | Not illustrated | Not serviced separately

$

$

Not available

19:2

Kawasaki 49019-7005 Fuel Filter

Note: Obtain parts from www.kawpowerepc.com | Not illustrated | Not serviced separately

$

$

Not available

19:3

Kawasaki 11013-7045 Safety Filter

Note: Obtain parts from www.kawpowerepc.com | Not illustrated | Not serviced separately

$

$

Not available

19:4

Kawasaki 11013-7044 Engine Air Filter

Note: Obtain parts from www.kawpowerepc.com | Not illustrated | Not serviced separately

$

$

Not available

22

Exmark 126-4324

CLUTCH

$387.99

$

In Stock, only 1 left!

0

24

Exmark 126-4360

MUFFLER

$153.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5358

SHEAVE (W/HUB)

$54.99

$

In Stock, only 2 left!

0

27

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 7

0

30

Exmark 126-6687-03

ANCHOR-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

44

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

45

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

46

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

47

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

48

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

50

Exmark 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

51

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

54

Exmark 3231-29

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

55

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0
