RAX691GKA524A3 - Exmark 52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

52" Radius X-Series Zero-Turn Mower, Kawasaki FX691V

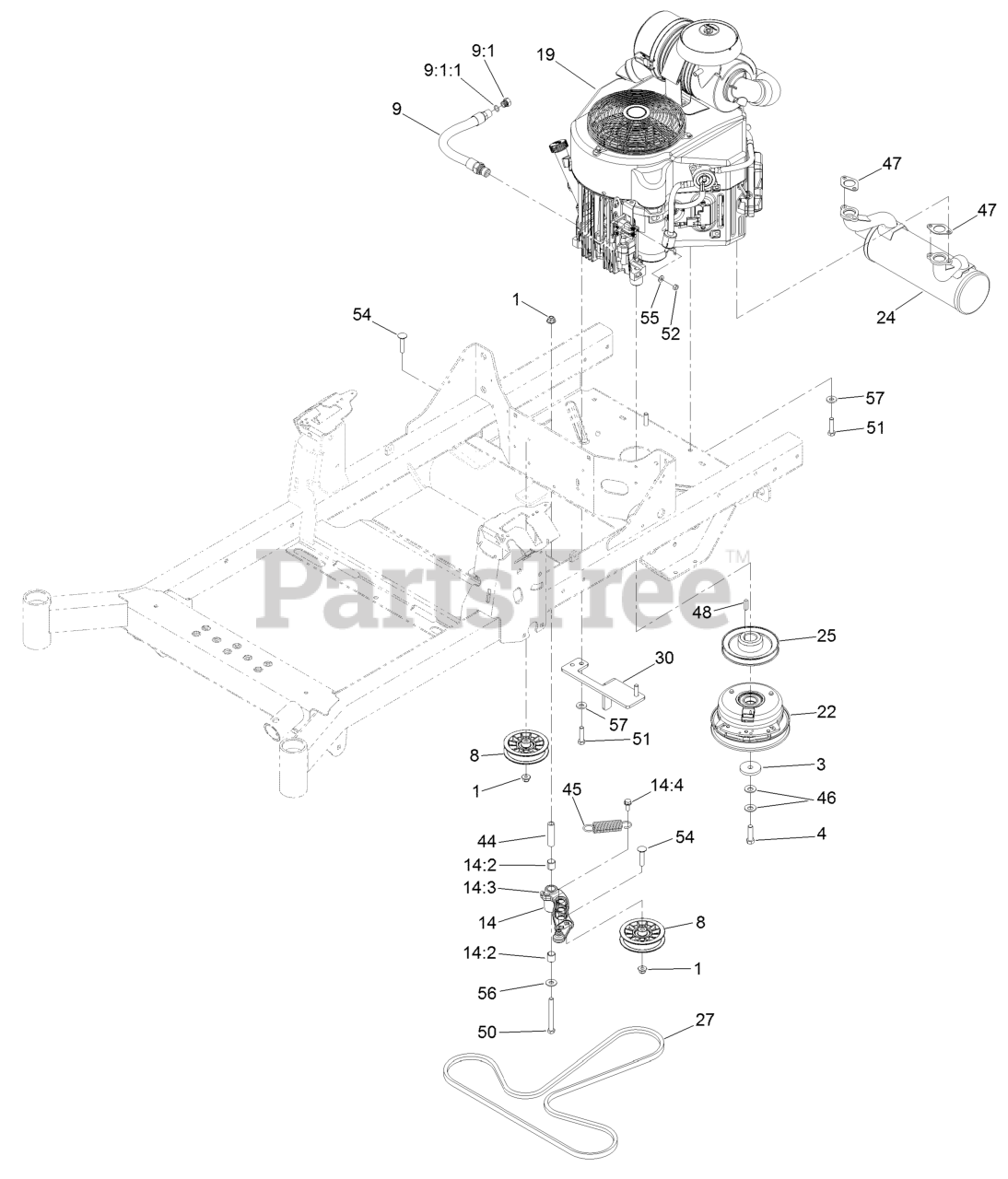

Engine Assembly Parts Diagram

  • Title
1

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-6919

Washer-Clutch

$5.49

$

In Stock, Qty 8

0

4

Exmark 109-9761

Screw-HH

$5.49

$

In Stock, Qty 6

0

8

Exmark 116-2456

Pulley-Flat

$23.99

$

In Stock, Qty 9

0

9

Exmark 116-4924

Engine Oil Drain Hose ASM

$37.99

$

In Stock, Qty 5

0

9:1

Exmark 353-508

Plug-HH

$8.49

$

In Stock, only 1 left!

0

9:1:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 9

0

14

Exmark 126-0973

Idler Arm ASM

$86.99

$

In Stock, only 1 left!

0

14:2

Exmark 1-513034

Sleeve-Bearing

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

Fitting-Grease, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

Screw-HWHTF

$7.99

$

In Stock, Qty 6

0

19

Engine-Kawasaki, Fx691V

$

$

Not available

19:1

Kawasaki 49065-7007 Engine Oil Filter

$

$

Not available

19:2

Kawasaki 49019-7005 Fuel Filter

$

$

Not available

19:3

Kawasaki 11013-7045 Safety Filter

$

$

Not available

19:4

Kawasaki 11013-7044 Engine Air Filter

$

$

Not available

22

$387.99

$

In Stock, only 1 left!

0

24

Exmark 126-4360

Muffler

$153.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5358

Sheave (W/Hub)

$54.99

$

In Stock, only 2 left!

0

27

Exmark 126-5993

Belt-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 7

0

30

Exmark 126-6687-03

Anchor-Clutch

$26.99

$

Usually ships in 3-6 days

0

44

Exmark 1-603384

Bushing-Pivot, Idler

$14.99

$

In Stock, Qty 18

0

45

Exmark 1-603402

Spring-Extension

$7.99

$

In Stock, only 3 left!

0

46

Exmark 1-603610

Washer-Spring

$5.49

$

In Stock, Qty 5

0

47

Exmark 1-653313

Gasket-Exhaust

$4.99

$

Usually ships in 3-6 days

0

$2.99

$

In Stock, only 2 left!

0

50

Exmark 323-15

Screw-HH

$1.99

$

In Stock, only 4 left!

0

51

Exmark 323-8

Screw-HH

$1.49

$

In Stock, Qty 20+

0

52

Exmark 3217-5

Nut-Hex

$0.99

$

In Stock, Qty 8

0

54

Exmark 3231-29

Screw-CARR

$7.49

$

In Stock, only 2 left!

0

55

Exmark 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

56

Exmark 3256-4

Washer-Flat

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0
