RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

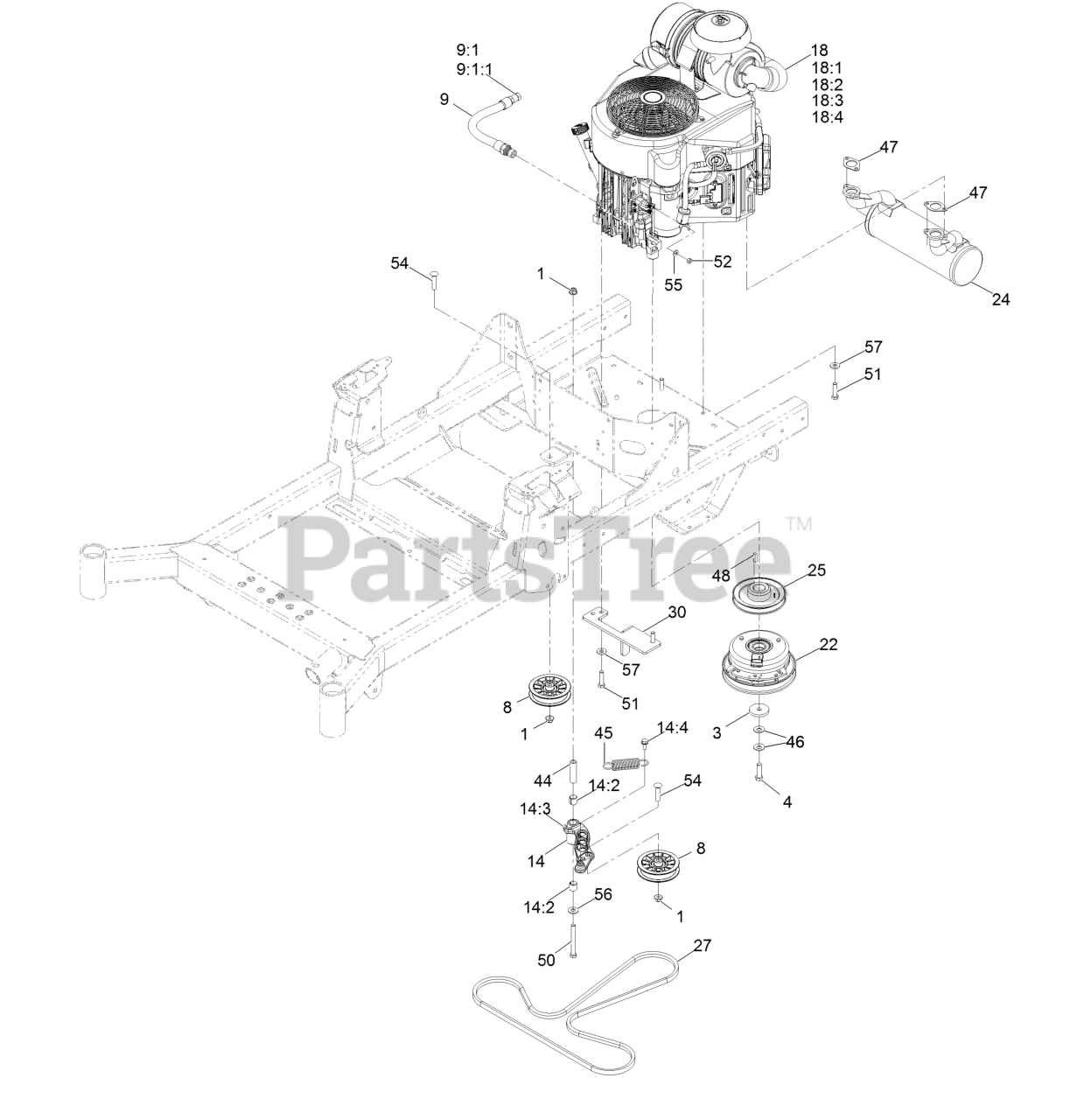

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-6919

Washer-Clutch

$5.49

$

In Stock, Qty 13

0

4

Exmark 109-9761

Screw-HH 7/16-20 X 1 1/2 W/Loctite

$5.49

$

In Stock, Qty 14

0

8

Exmark 116-2456

Pulley-Flat

$25.99

$

In Stock, Qty 20+

0

9

Exmark 116-4924

Asm-Hose Oil Drain W/Plug

$39.99

$

In Stock, Qty 6

0

9:1

Exmark 353-508

Plug-W/O-Ring

$8.99

$

In Stock, only 4 left!

0

9:1:1

Exmark 237-42

O-Ring

$3.49

$

In Stock, Qty 19

0

14

Exmark 126-0973

Idler Arm ASM

$96.99

$

In Stock, only 2 left!

0

14:2

Exmark 1-513034

Sleeve-Bearing

$7.99

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

Zerk-90deg 1/4-28

$3.49

$

In Stock, Qty 13

0

14:4

Exmark 32144-11

Screw-HWH 5/16-18 X 3/4 Tf

$8.49

$

In Stock, only 3 left!

0

18

Engine-Kawasaki, Fx651V

$

$

Not available

18:1

Kawasaki 49065-7007 Engine Oil Filter

$

$

Not available

18:2

Kawasaki 49019-7005 Fuel Filter

$

$

Not available

18:3

Kawasaki 11013-7045 Safety Filter

$

$

Not available

18:4

Kawasaki 11013-7044 Engine Air Filter

$

$

Not available

22

Exmark 126-4324

Clutch

$410.99

$

In Stock, only 1 left!

0

24

Exmark 126-4360

Muffler

$162.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5358

Sheave (W/Hub)

$56.99

$

Usually ships in 3-6 days

0

27

Exmark 126-5993

Belt-V
(Superseded to 126-5993-SL)

$53.99

$

In Stock, Qty 20+

0

30

Exmark 126-6687-03

Anchor-Clutch

$27.99

$

Usually ships in 3-6 days

0

44

Exmark 1-603384

Bushing-Pivot, Idler

$14.99

$

In Stock, Qty 20+

0

45

Exmark 1-603402

Spring-Extension

$8.49

$

In Stock, Qty 20+

0

46

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

47

Exmark 1-653313

Gasket-Exhaust

$5.49

$

Usually ships in 3-6 days

0

48

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.49

$

In Stock, Qty 19

0

50

Exmark 323-15

Screw-HH 3/8-16 X 3 1/2

$1.99

$

In Stock, Qty 20+

0

51

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

52

Exmark 3217-5

Nut-Hex 1/4-20

$0.99

$

In Stock, Qty 13

0

54

Exmark 3231-29

Bolt-Carriage 3/8-16 X 1 3/4

$7.99

$

In Stock, only 2 left!

0

55

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

56

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0
