RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 400000000 - 402082299) (Rev B) (2017) Seat Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

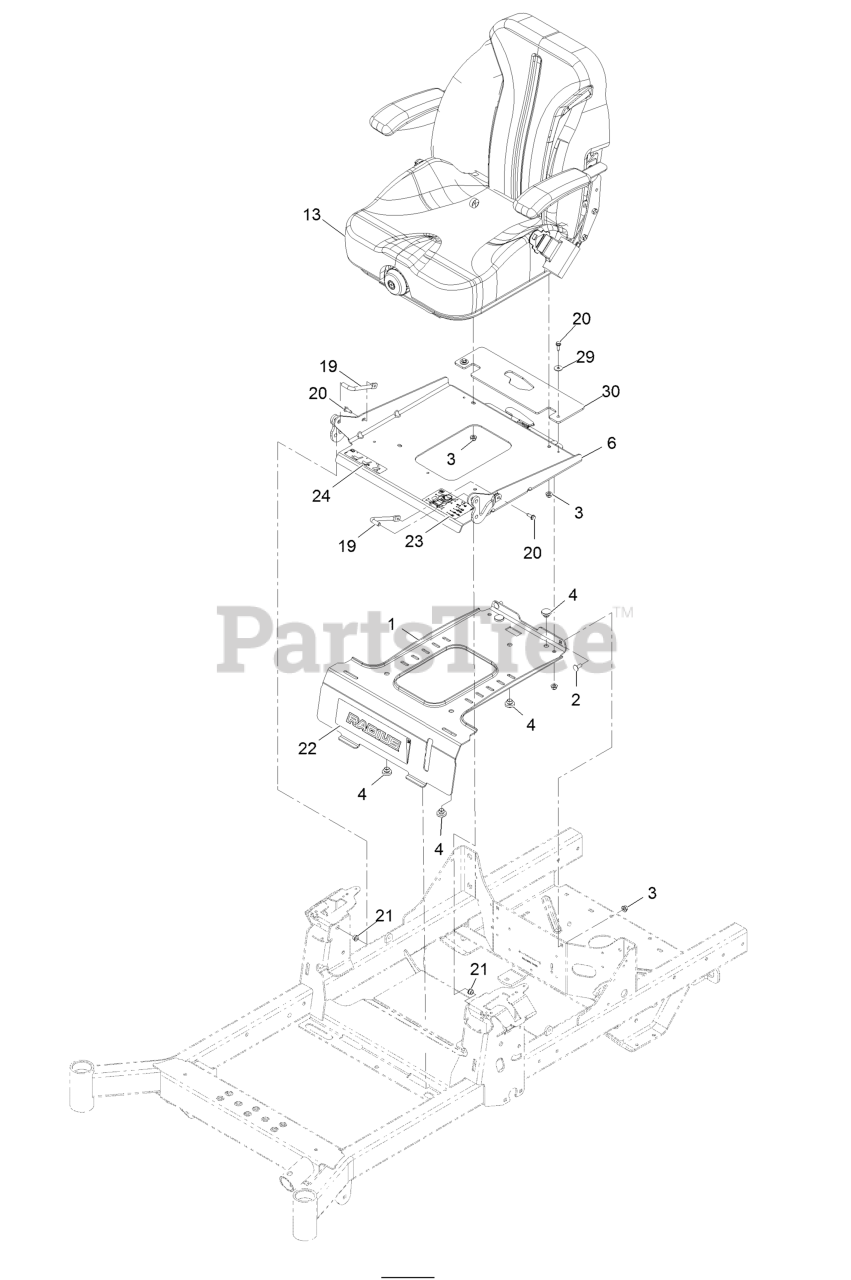

Seat Assembly Parts Diagram

  • Title

1

Exmark 126-4082-03

Plate-Retainer, Tank

$133.99

$

Usually ships in 3-6 days

0

2

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 135-0505

Bumper, Seat

$1.49

$

In Stock, only 3 left!

0

6

Exmark 126-7309

Seat PAN And Latch ASM

$190.99

$

Usually ships in 3-6 days

0

13

Exmark 126-8292

ASM-Susp Seat

$1548.99

$

Usually ships in 3-6 days

0

19

Exmark 126-5914

Pin-Pivot, Seat

$4.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-44

Screw-HWH 1/4-20 X 3/4

$1.49

$

In Stock, only 2 left!

0

21

Exmark 1-603735

Bushing-Flanged

$6.49

$

In Stock, only 4 left!

0

22

Exmark 126-9082

Decal-Radius Logo

$7.99

$

In Stock, only 1 left!

0

23

Exmark 126-8151

Decal-Aid, Service

$5.49

$

Usually ships in 3-6 days

0

24

Exmark 126-8161

Decal-Latch, Seat

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 3256-67

Washer-Flat

$0.99

$

In Stock, Qty 9

0

30

Exmark 135-0214

Guard-Seat, Rubber

$15.99

$

Usually ships in 3-6 days

0
