RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 400000000 - 402082299) (Rev B) (2017) Hydraulic Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

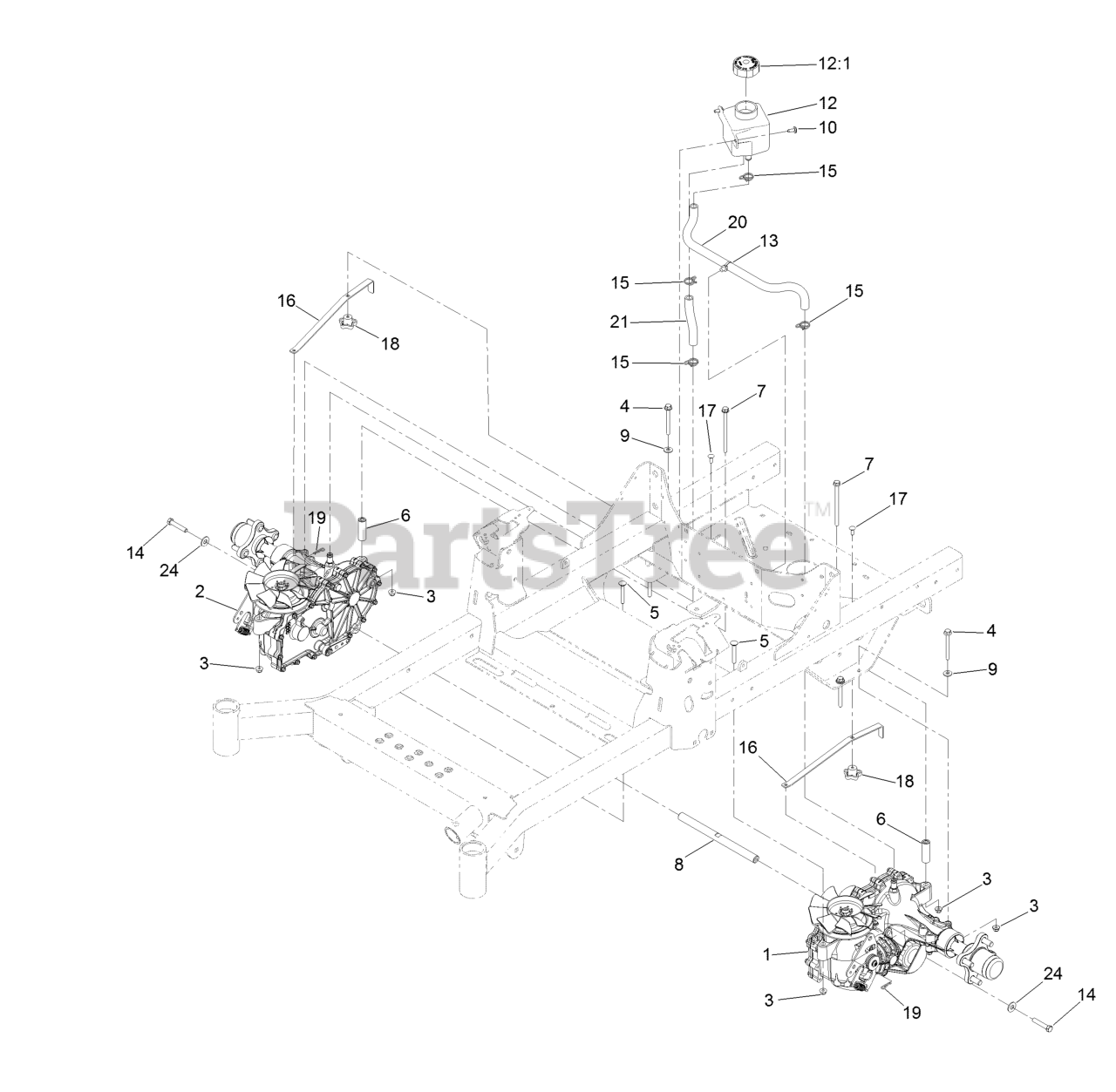

Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 126-2883

LH Transaxle ASM

$2038.99

$

Usually ships in 3-6 days

0

2

Exmark 126-2884

RH Transaxle ASM

$2038.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

Nut-Flange, NI

$1.49

$

In Stock, Qty 19

0

4

Exmark 126-4687

Screw-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-7

Bolt-CARR

$0.99

$

In Stock, Qty 10

0

6

Exmark 116-5809

Spacer-Hydro

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 126-5896

Screw HHF

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6833

Shaft-Spacer

$37.99

$

In Stock, only 2 left!

0

9

Exmark 1-303334

Washer-Spring

$2.99

$

In Stock, only 4 left!

0

10

Exmark 126-6266

Screw-Torx

$1.49

$

In Stock, only 2 left!

0

12

Exmark 109-2250

Vent-Tank, HYD

$66.99

$

In Stock, Qty 8

0

12:1

Exmark 109-3320

Cap-Reservoir, HYD

$28.99

$

In Stock, only 1 left!

0

13

Exmark 32180-118

Clip-Tie

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 94-7972

Screw-HH W/Loctite

$5.49

$

In Stock, only 3 left!

0

15

Exmark 126-0327

Clamp-Hose

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 109-5395

Arm-Bypass, Hydro

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 3229-1

Bolt-CARR

$3.99

$

In Stock, Qty 20+

0

18

Exmark 108-6402

Knob-Handle

$1.49

$

In Stock, only 3 left!

0

19

Exmark 1-806003

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

20

Exmark 126-5668

Hose-Hydraulic

$21.99

$

Usually ships in 3-6 days

0

21

Exmark 126-5669

Hose-Hydraulic

$8.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-4

Washer-Flat

$1.99

$

In Stock, Qty 20+

0
