RAX651GKA484A3 - Exmark 48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V (SN: 400000000 - 402082299) (Rev B) (2017) Deck Assembly Parts Diagram

48" Radius X-Series Zero-Turn Mower, Kawasaki FX651V

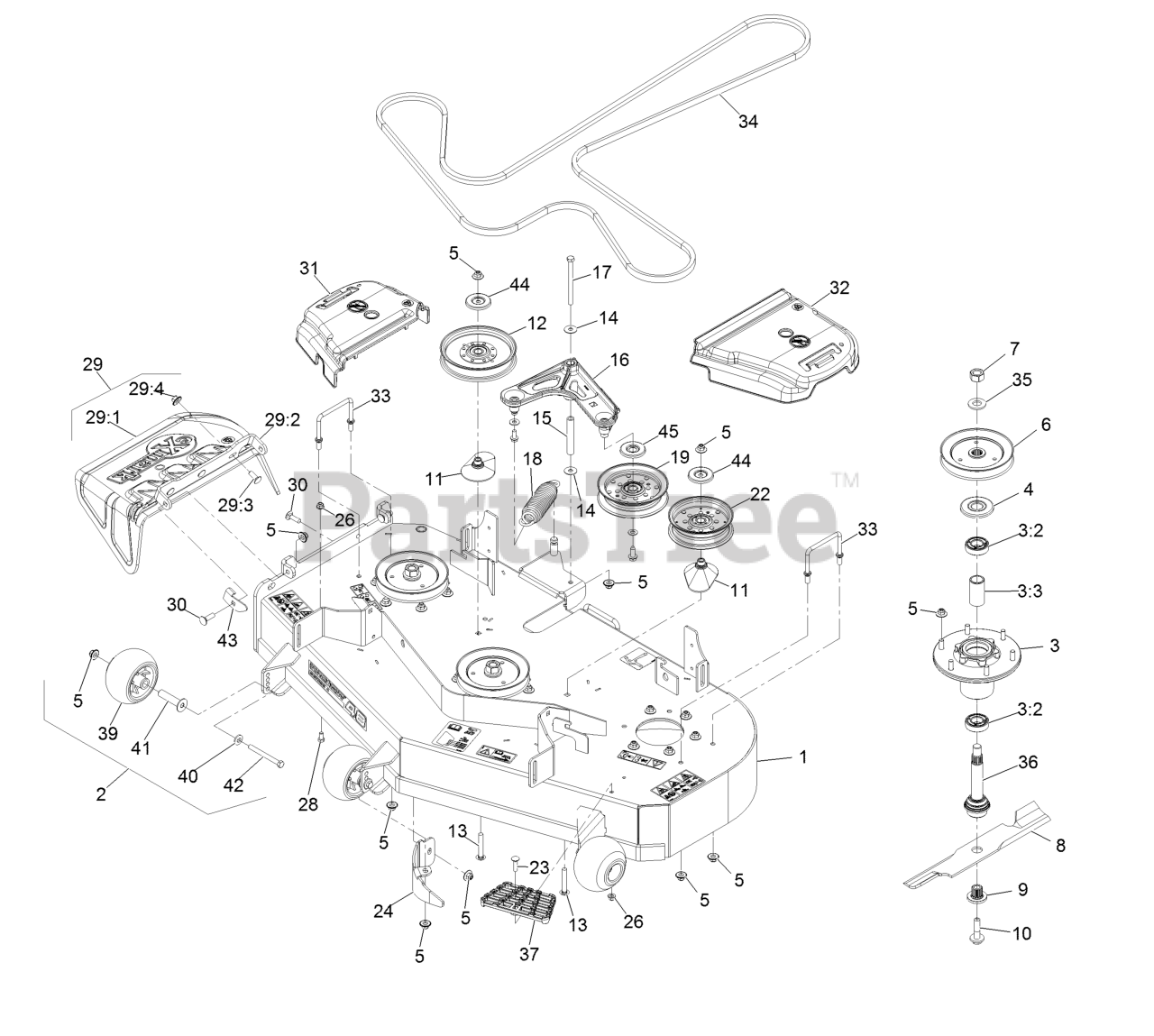

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3584

ASM-Deck W/Decals 484

$2537.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

Kit, Anti-Scalp Roller

$52.99

$

In Stock, Qty 20+

0

3

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$158.99

$

In Stock, Qty 20+

0

3:2

Exmark 116-0720

Bearing-Ball

$22.99

$

In Stock, Qty 10

0

3:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 5

0

4

Exmark 116-1286

Guard,Bearing Top .989

$5.49

$

In Stock, Qty 9

0

5

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 116-0674

Sheave,Blade Drive 5.90

$76.99

$

In Stock, only 1 left!

0

7

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 9

0

8

Exmark 116-5177

Blade-Extreme 2, 16.25"
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

8

Exmark 103-6401

Blade-Notched
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 9

0

8

Exmark 103-6391

Blade, Mulching
(Superseded to 103-6391-S)

$31.99

$

In Stock, Qty 20+

0

8

Exmark 103-6386

Blade, Low Lift
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

8

Exmark 103-6381

Blade, Solid
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

9

Exmark 103-3037

Bushing, Splined

$22.99

$

In Stock, Qty 20+

0

10

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

11

Exmark 109-2872

Spacer-Pulley

$22.99

$

In Stock, only 2 left!

0

12

Exmark 126-9189

Idler-Pulley, Flat 6.00X1.00

$61.99

$

In Stock, Qty 8

0

13

Exmark 3231-44

Bolt-Carriage 3/8-16 X 2 1/2

$2.99

$

In Stock, only 3 left!

0

14

Exmark 52-2860

Washer

$1.49

$

In Stock, Qty 13

0

15

Exmark 116-5111

Bushing

$33.99

$

In Stock, only 1 left!

0

16

Exmark 126-0976

Idler Arm ASM

$108.99

$

In Stock, Qty 10

0

17

Exmark 323-38

Screw-HH 3/8-16 X 4 3/4

$11.99

$

In Stock, only 1 left!

0

18

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 7

0

19

Exmark 126-9196

Idler-Pulley, Flat

$60.99

$

In Stock, Qty 8

0

22

Exmark 126-9197

Idler-Pulley, Flat 5.00X1.31

$62.99

$

Usually ships in 3-6 days

0

23

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-5995-01

Baffle-Dogleg,Lzs Lzx Vt48

$62.99

$

Usually ships in 3-6 days

0

26

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

28

Exmark 322-2

Screw-HH 5/16-18 X 5/8

$2.49

$

In Stock, Qty 13

0

29

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

29:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 7

0

29:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

29:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

29:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

31

Exmark 109-6935

Cover-Belt, RH

$38.99

$

In Stock, only 1 left!

0

32

Exmark 109-6936

Cover-Belt, LH

$38.99

$

In Stock, only 1 left!

0

33

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

34

Exmark 126-6626

Belt-V
(Superseded to 126-6626-SL)

$161.99

$

In Stock, only 1 left!

0

35

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 14

0

36

Exmark 116-3341

ASM-Spindle And Seal

$89.99

$

In Stock, Qty 9

0

37

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

39

Exmark 103-8415

Roller-Anti-Scalp

$23.99

$

In Stock, Qty 5

0

40

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

41

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 12

0

42

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

43

Exmark 135-0064

Stop-Discharge Chute

$9.99

$

Usually ships in 3-6 days

0

44

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 3 left!

0

45

Exmark 126-9195

Shield-Guard, Dust

$2.99

$

In Stock, only 3 left!
