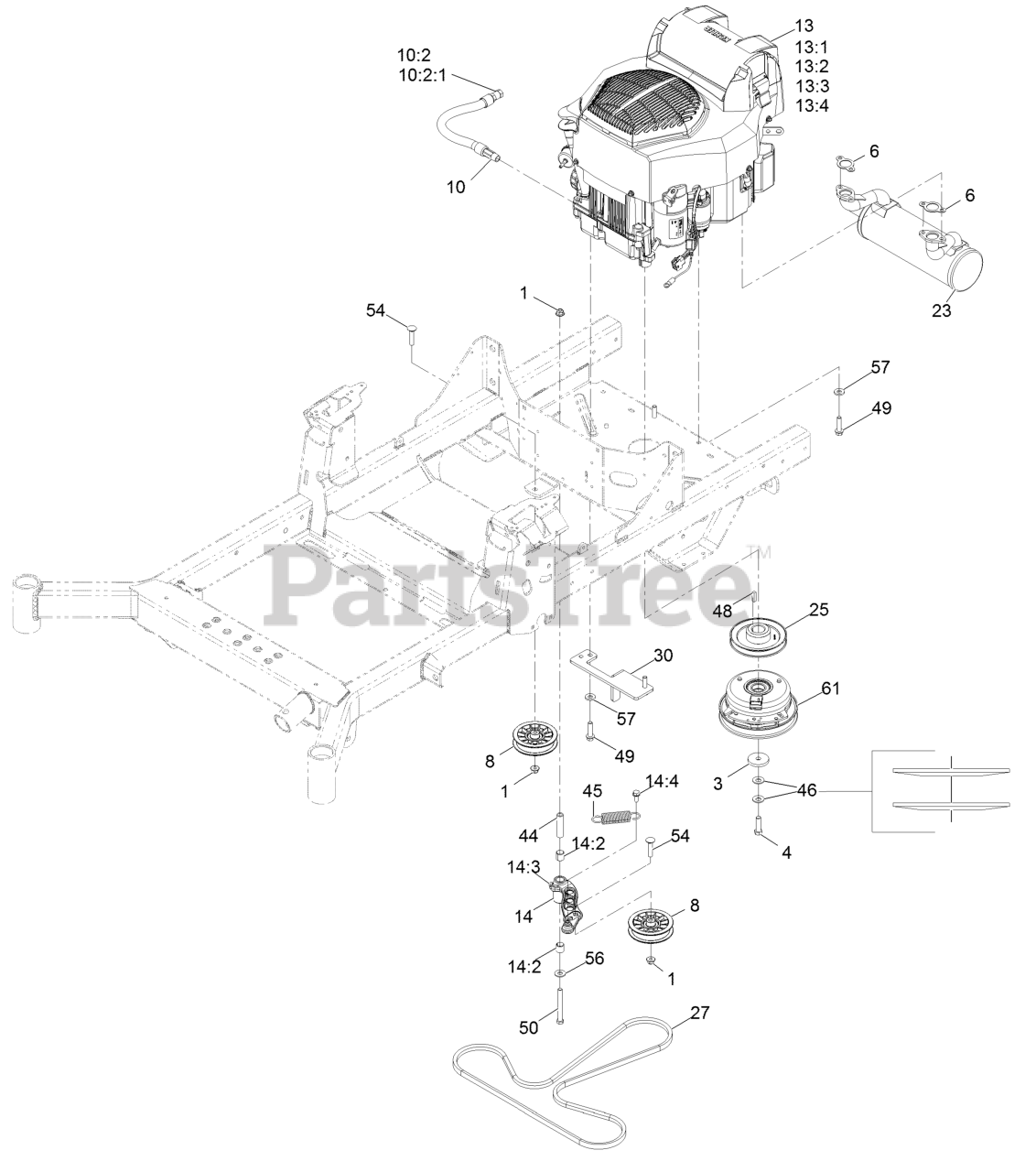

RAS740CKC60300 - Exmark 60" Radius S-Series Zero-Turn Mower, Kohler ZT740 (SN: 400000000 - 402082299) (2017) Engine Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Kohler ZT740

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

4

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 6

0

6

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

8

Exmark 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 9

0

10

Exmark 116-5108

OIL DRAIN HOSE ASM

Note: Torque to 17-23 ft-lb

$38.99

$

In Stock, only 2 left!

0

10:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

10:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

13

Engine - Kohler Zt740

Note: Not serviced separately

$

$

Not available

13:1

Kohler 16 083 01-S Engine Air Filter

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

13:2

Kohler 52 050 02-S Engine Oil Filter

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

13:3

Kohler 24 050 13-S Fuel Filter

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

13:4

Kohler 25 083 04-S Safety Filter

Note: Not serviced separately, Obtain parts from www.kohlerplus.com

$

$

Not available

14

Exmark 126-0973

IDLER ARM ASM

$86.99

$

In Stock, only 1 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

23

Exmark 126-4359

MUFFLER-KOHLER AES

$153.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5358

SHEAVE (W/HUB)

$54.99

$

In Stock, only 2 left!

0

27

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 7

0

30

Exmark 126-6687-03

ANCHOR-CLUTCH

$26.99

$

Usually ships in 3-6 days

0

44

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

45

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

46

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

48

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

49

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

50

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

54

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

61

Exmark 126-8926

CLUTCH

$412.99

$

Usually ships in 3-6 days

0
