RAS730GKA60RA3 - Exmark 60" Radius S-Series Zero-Turn Mower, Kawasaki FX730 (SN: 408644346 - 411294211) (Rev A) (2021) Motion Control Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Kawasaki FX730

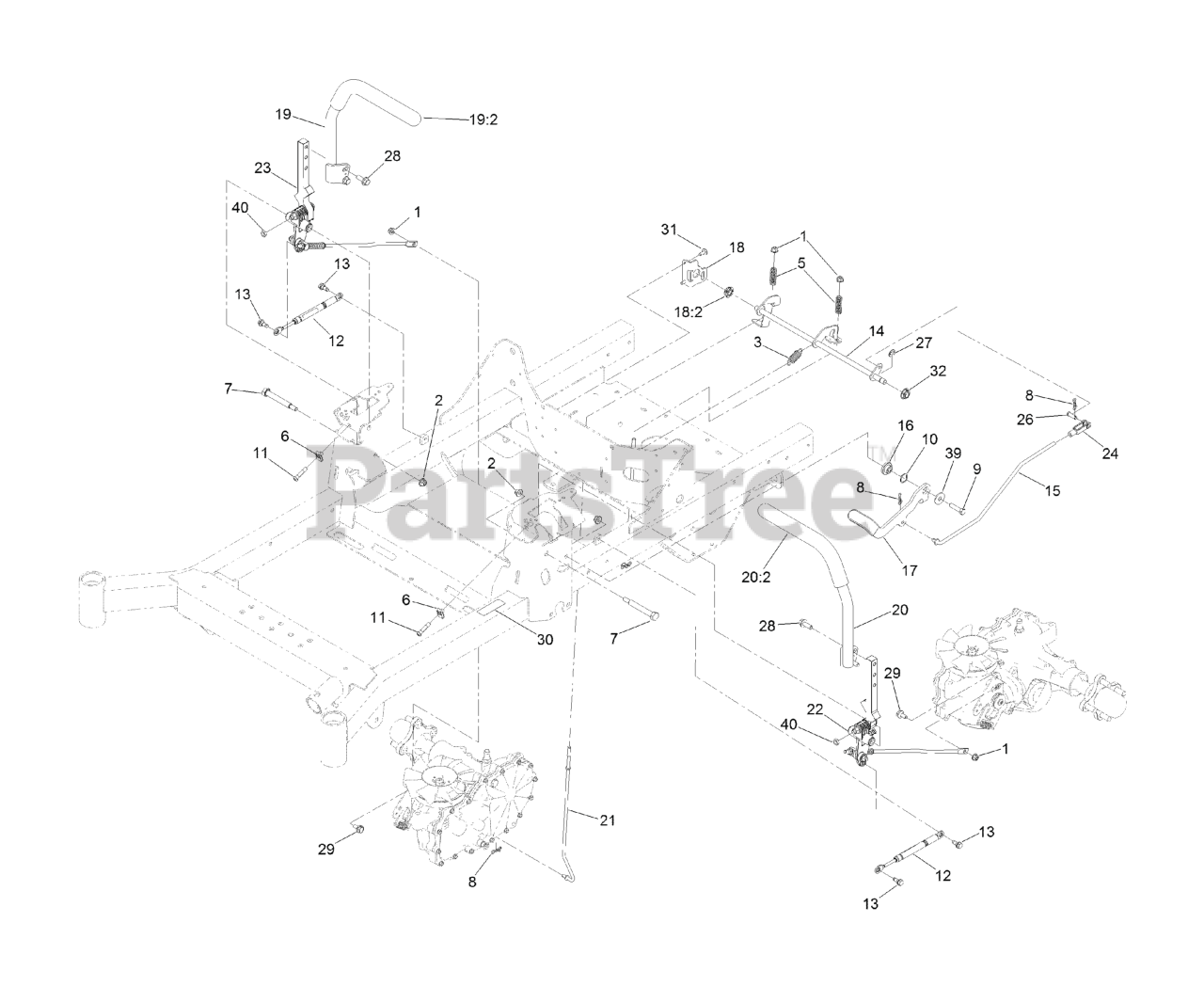

Motion Control Assembly Parts Diagram

  • Title
1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 107-1045

SPRING-EXTENSION

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 109-7694

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 115-5099

BOLT-PIVOT

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 119-1415

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 20+

0

9

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 119-4164

WASHER-WAVE

$3.49

$

In Stock, only 3 left!

0

11

Exmark 126-4299

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

12

$

$

Not available

13

Exmark 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 126-5813

SHAFT-BRAKE

$39.99

$

Usually ships in 3-6 days

0

15

Exmark 126-5819

LINKAGE-BRAKE, UPPER

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 126-5989

PIVOT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 126-9490

LEVER-BRAKE (WITH GRIP)

$28.99

$

Usually ships in 3-6 days

0

18

Exmark 126-6456

BRACKET-BRAKE

$22.99

$

Usually ships in 3-6 days

0

18:2

Exmark 126-5820

BEARING-SPHERICAL

$7.99

$

In Stock, only 1 left!

0

19

Exmark 126-9191

RH CONTROL HANDLE ASM

$73.99

$

Usually ships in 3-6 days

0

19:2

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 126-9192

LH CONTROL HANDLE ASM

$73.99

$

Usually ships in 3-6 days

0

20:2

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 126-7217

LINKAGE-BRAKE, LOWER

$13.99

$

Usually ships in 3-6 days

0

22

LH Motion Control ASM

Note: Not serviced separately

$

$

Not available

23

RH Motion Control ASM

Note: Not serviced separately

$

$

Not available

24

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

26

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

27

Exmark 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

28

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

29

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 13

0

30

Exmark 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 126-6266

SCREW-TORX

$1.49

$

In Stock, only 2 left!

0

32

Exmark 126-5820

BEARING-SPHERICAL

$7.99

$

In Stock, only 1 left!

0

39

Exmark 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0
