RAS720GKC52300 - Exmark 52" Radius S-Series Zero-Turn Mower, Kohler ZT720 (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

52" Radius S-Series Zero-Turn Mower, Kohler ZT720

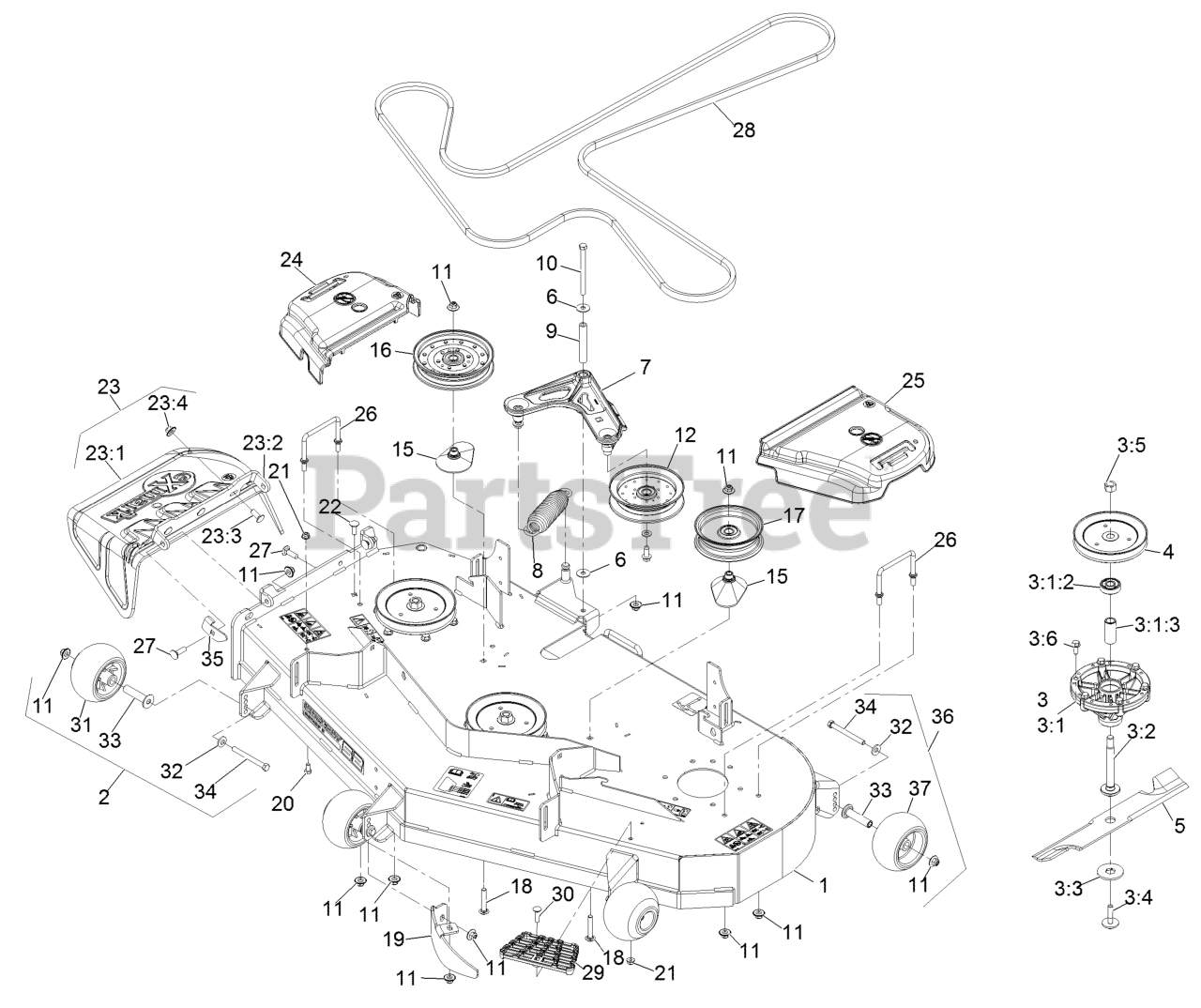

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3578

ASM-DECK W/DECALS 523

$2269.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$52.99

$

In Stock, Qty 20+

0

3

Exmark 126-4630

ASM, CUTTER HOUSING COMPL

$160.99

$

In Stock, only 3 left!

0

3:1

Exmark 126-4627

ASM-CUTTER HOUSING

$123.99

$

In Stock, only 1 left!

0

3:1:2

Exmark 116-4004

BEARING

$19.99

$

In Stock, only 3 left!

0

3:1:3

Exmark 116-4876

SPACER-BEARING

$7.99

$

In Stock, only 2 left!

0

3:2

Exmark 109-7431

SPINDLE-HEX PILOT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) to spindle shaft

$37.99

$

In Stock, Qty 5

0

3:3

Exmark 126-4530

WASHER-HEX BLADE DRIVE

$5.49

$

In Stock, Qty 20+

0

3:4

Exmark 116-0005

BOLT-BLADE, SEM

Note: Torque to 50-60 ft-lb, Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$7.99

$

In Stock, Qty 20+

0

3:5

Exmark 3219-6

NUT-HEX

Note: Torque to 75-85 ft-lb

$3.99

$

In Stock, Qty 20+

0

3:6

Exmark 126-1696

SCREW-FORMING, THREAD

$1.49

$

In Stock, Qty 5

0

4

Exmark 116-5044

SHEAVE,BLADE DRIVE 6.50

$64.99

$

In Stock, only 1 left!

0

5

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

5

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

5

Exmark 116-5175

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 1 left!

0

6

Exmark 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0

7

Exmark 126-0976

IDLER ARM ASM

$108.99

$

In Stock, Qty 10

0

8

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

9

Exmark 116-5111

BUSHING

$33.99

$

In Stock, only 1 left!

0

10

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 116-4668

126-9196
(Superseded to 126-9196)

$60.99

$

In Stock, Qty 8

0

15

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, only 2 left!

0

16

Exmark 116-4670

126-9189
(Superseded to 126-9189)

$61.99

$

In Stock, Qty 8

0

17

Exmark 116-4669

IDLER-PULLEY, FLAT

$79.99

$

In Stock, Qty 5

0

18

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 2 left!

0

19

Exmark 116-5835-01

BAFFLE-DOGLEG, LZE-PNS-52

$62.99

$

Usually ships in 3-6 days

0

20

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

21

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

22

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

23

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

23:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

23:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

23:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

23:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

24

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, only 1 left!

0

25

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, only 1 left!

0

26

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

27

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

28

Exmark 126-7443

BELT-V
(Superseded to 126-7443-SL)

$169.99

$

In Stock, only 1 left!

0

29

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

30

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

32

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

33

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 12

0

34

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 17

0

35

Exmark 135-0064

STOP-DISCHARGE CHUTE

$9.99

$

Usually ships in 3-6 days

0

36

Exmark 126-7840

KIT-ANTISCALP ROLLER

$49.99

$

Usually ships in 3-6 days

0

37

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0
