RAS720CKC52300 - Exmark 52" Radius S-Series Zero-Turn Mower, Kohler ZT720 (SN: 400000000 - 402082299) (2017) Seat Assembly Parts Diagram

52" Radius S-Series Zero-Turn Mower, Kohler ZT720

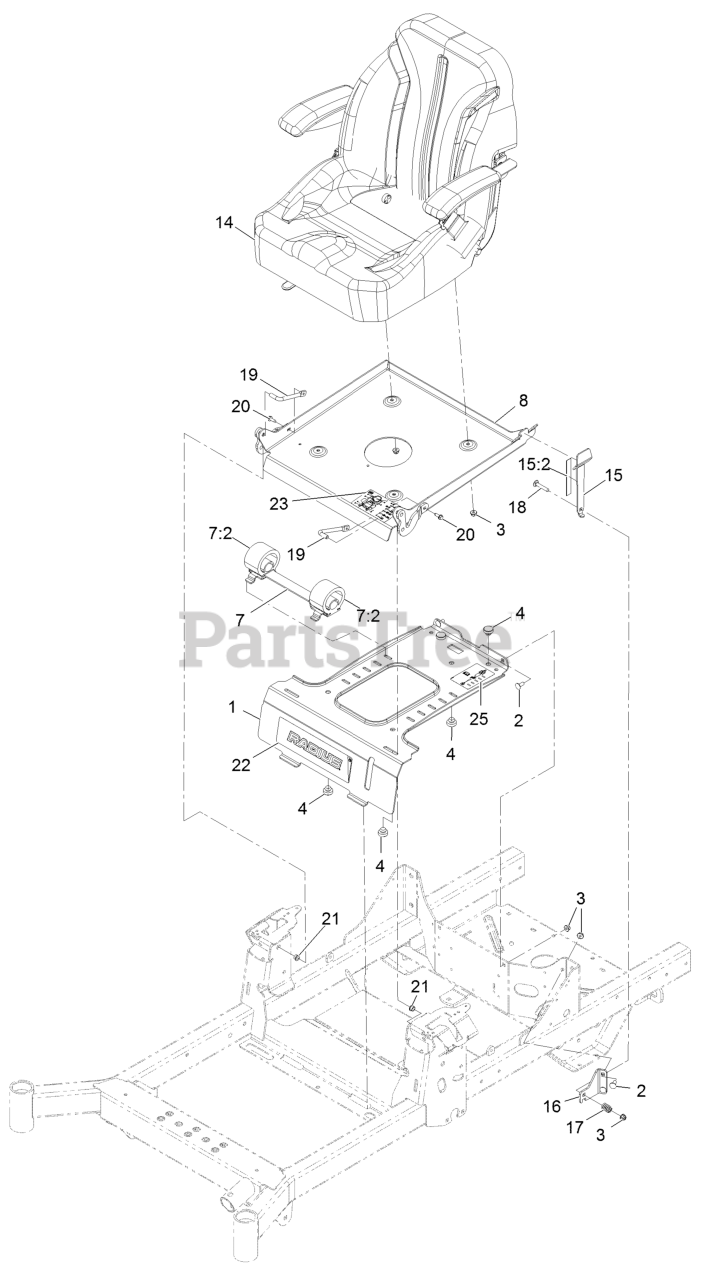

Seat Assembly Parts Diagram

  • Title

1

Exmark 126-4082-03

PLATE-RETAINER, TANK

$133.99

$

Usually ships in 3-6 days

0

2

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

7

Exmark 126-4796

SEAT ISOLATOR ASM

$164.99

$

Usually ships in 3-6 days

0

7:2

Exmark 126-5741

ISOLATOR-SEAT

$94.99

$

Usually ships in 3-6 days

0

8

Exmark 126-5909-03

MOUNT-SEAT

$185.99

$

Usually ships in 3-6 days

0

14

Exmark 126-8291

ASM-SEAT

$1354.99

$

Usually ships in 3-6 days

0

15

Exmark 126-6097

LATCH SEAT ASM

$21.99

$

Usually ships in 3-6 days

0

15:2

Exmark 116-3120

STRIP-POLY WEAR

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 126-5757

BRACKET-LATCH

$15.99

$

Usually ships in 3-6 days

0

17

Exmark 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

18

Exmark 116-0629

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 126-5914

PIN-PIVOT, SEAT

$4.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

21

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

22

Exmark 126-9082

DECAL-RADIUS LOGO

$7.99

$

In Stock, only 1 left!

0

23

Exmark 126-8151

DECAL-AID, SERVICE

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 126-8194

DECAL-SEAT SUSPENSION

$3.49

$

Usually ships in 3-6 days

0
