RAS720CKC52300 - Exmark 52" Radius S-Series Zero-Turn Mower, Kohler ZT720 (SN: 400000000 - 402082299) (2017) Main Frame Assembly Parts Diagram

52" Radius S-Series Zero-Turn Mower, Kohler ZT720

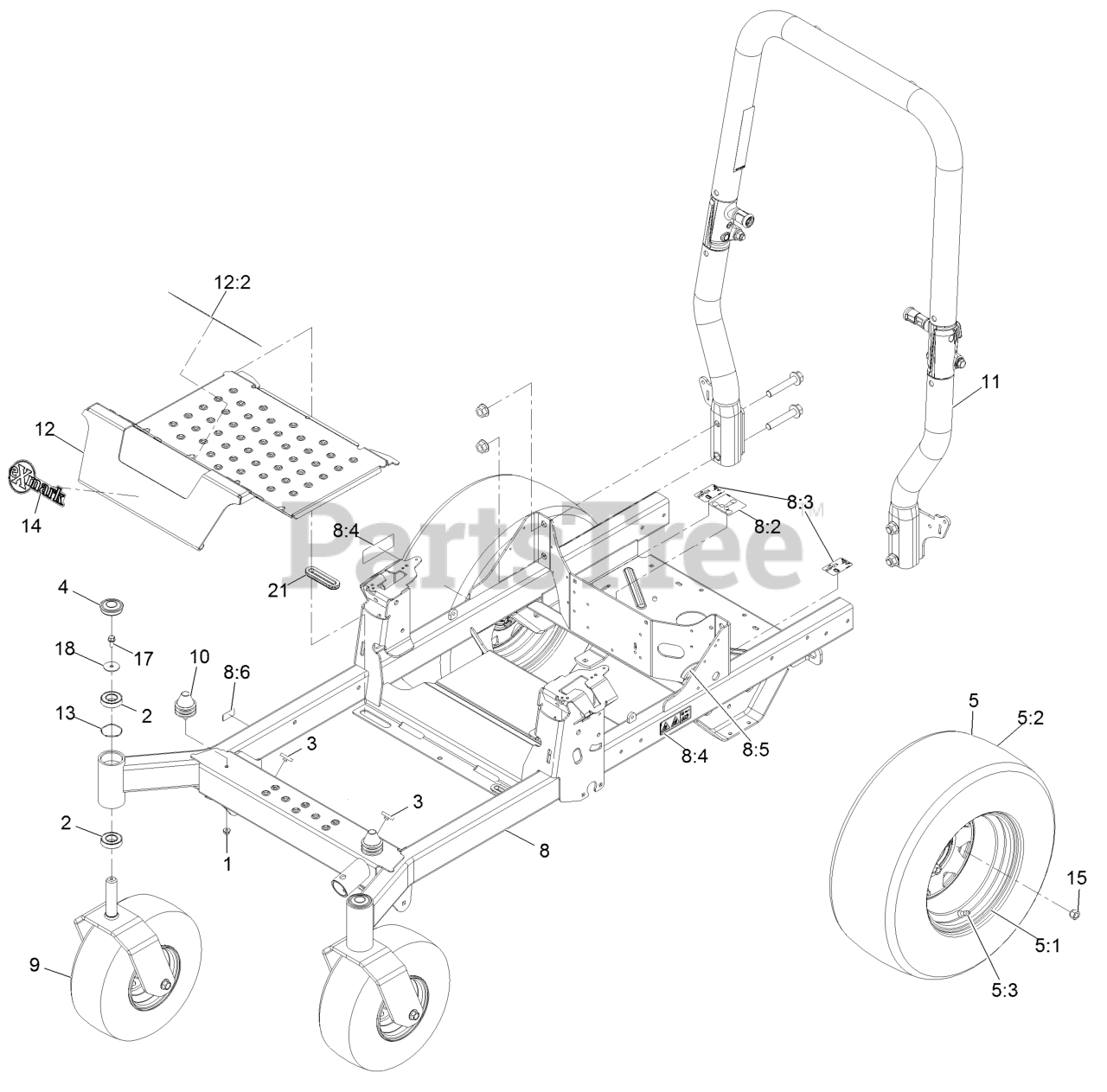

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

3

Exmark 109-9233

BUMPER-PUSH-IN, RUBBER

$5.49

$

In Stock, Qty 17

0

4

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 15

0

5

Exmark 126-7823

WHEEL AND TIRE ASM

$428.99

$

Usually ships in 3-6 days

0

5:1

Exmark 116-6320

WHEEL-12X7, 8 SPOKE 4 ON

$185.99

$

Usually ships in 3-6 days

0

5:2

Exmark 126-3288

TIRE

$249.99

$

Usually ships in 3-6 days

0

5:3

Exmark 232-27

Stem-Valve

$

$

Not available

8

Exmark 126-4699

FRAME ASM

$976.99

$

Usually ships in 3-6 days

0

8:2

Exmark 109-6014

DECAL-ROUTING, BELT

$7.49

$

In Stock, only 4 left!

0

8:3

Exmark 116-8588

DECAL-RELEASE, DRIVE

$2.99

$

Usually ships in 3-6 days

0

8:4

Exmark 126-4363

DECAL-WARNING

$17.99

$

Usually ships in 3-6 days

0

8:5

Exmark 127-6618

STRIP-SEAL

$5.99

$

Usually ships in 3-6 days

0

8:6

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, Qty 9

0

9

ASM-Front Caster W/Fork

Note: Not serviced separately

$

$

Not available

10

Exmark 126-5491

ISOLATOR

$19.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9525

ASM-ROPS TAPERED

$379.99

$

Usually ships in 3-6 days

0

12

Exmark 126-5872

PAN-FLOOR

$187.99

$

Usually ships in 3-6 days

0

12:2

Exmark 126-8383

DECAL-DANGER

$8.99

$

In Stock, only 1 left!

0

13

Exmark 126-5897

SPRING

$1.49

$

In Stock, Qty 17

0

14

Exmark 126-8819

DECAL-EXMARK LOGO

$7.99

$

Usually ships in 3-6 days

0

15

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

17

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

18

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

21

Exmark 126-7065

GROMMET-RUBBER

$5.49

$

Usually ships in 3-6 days
