RAS708GEM60RC3 - Exmark 60" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 406294345 - 408644345) (Rev A) (2020) Hydraulic Drive Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Exmark 708

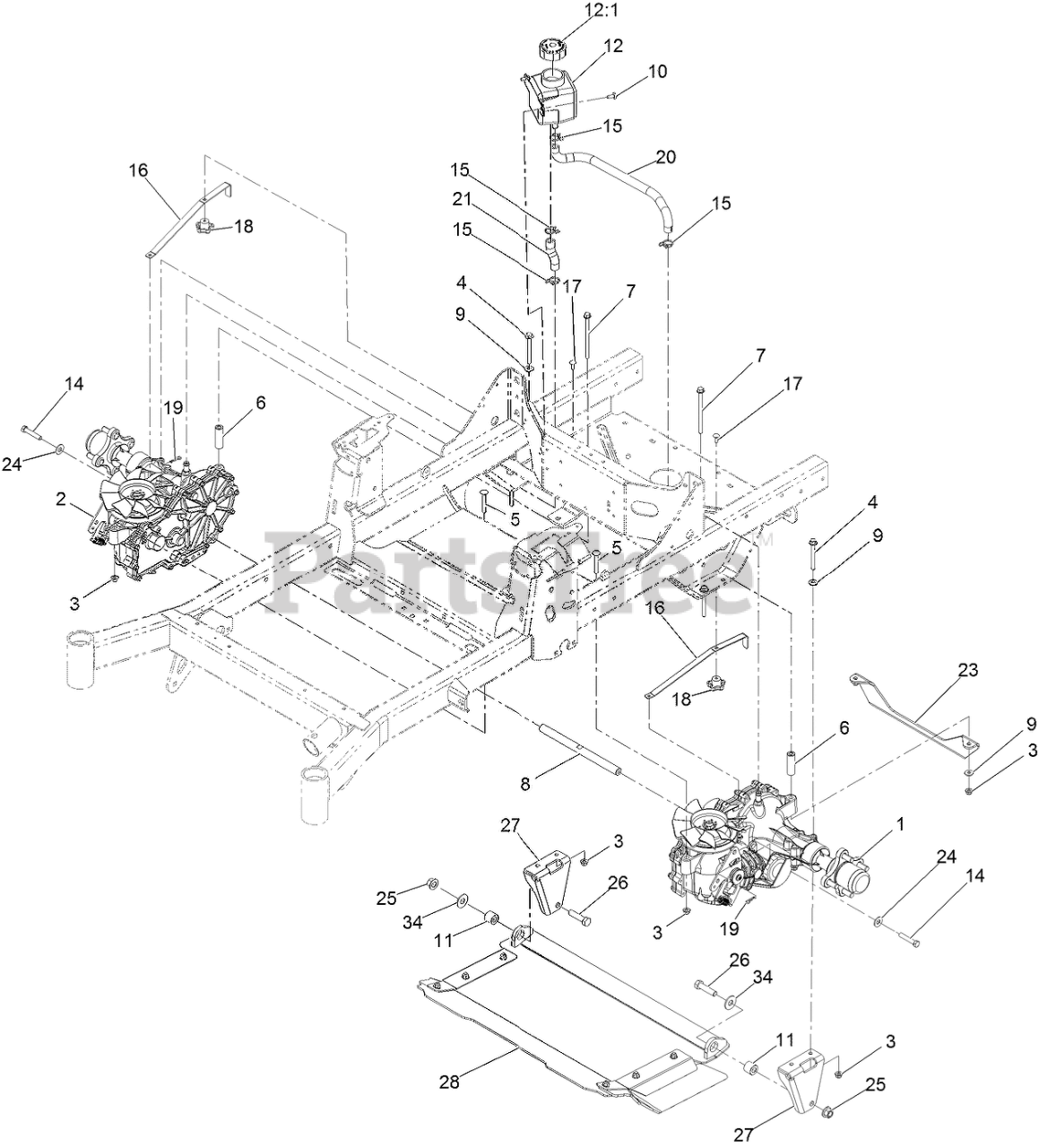

Hydraulic Drive Assembly Parts Diagram

  • Title
1

Exmark 126-2883

LH TRANSAXLE ASM

$2038.99

$

Usually ships in 3-6 days

0

2

Exmark 126-2884

RH TRANSAXLE ASM

$2038.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 126-4687

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

6

Exmark 116-5809

SPACER-HYDRO

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 126-5896

SCREW HHF

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6833

SHAFT-SPACER

$37.99

$

In Stock, only 2 left!

0

9

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

10

Exmark 126-6266

SCREW-TORX

$1.49

$

In Stock, only 2 left!

0

11

Exmark 126-1705

BUSHING-SLEEVE

$7.99

$

In Stock, Qty 5

0

12

Exmark 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

12:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

14

Exmark 94-7972

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 3 left!

0

15

Exmark 126-0327

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 109-5395

ARM-BYPASS, HYDRO

$10.99

$

Usually ships in 3-6 days

0

17

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Exmark 108-6402

KNOB-HANDLE

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

20

Exmark 133-1325

HOSE-HYDRAULIC

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 133-1320

HOSE-HYDRAULIC

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 126-5672-03

SUPPORT-TRANSMISSION

$72.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

26

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

27

Exmark 126-1988-03

BRACKET-MOUNT, DISCHARGE

$24.99

$

Usually ships in 3-6 days

0

28

Exmark 126-1985

DISCHARGE TUNNEL ASM

$297.99

$

Usually ships in 3-6 days

0

34

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
