RAS708GEM60RC3 - Exmark 60" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (Rev B) (2019) Engine Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Exmark 708

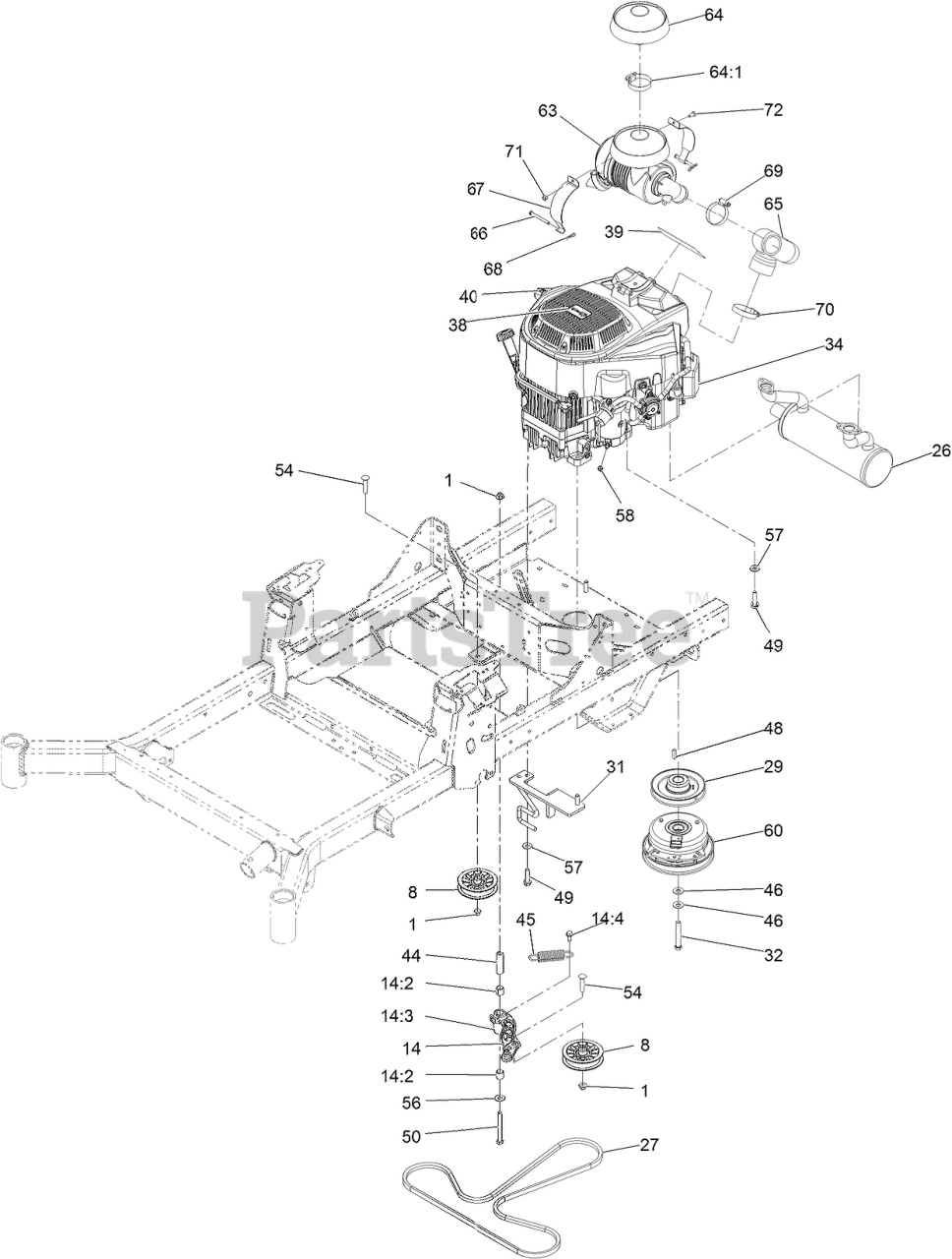

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-2456

PULLEY-FLAT IDLER

$23.99

$

In Stock, Qty 9

0

14

Exmark 126-0973

IDLER ARM ASM

$86.99

$

In Stock, only 1 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

26

Exmark 126-5864

MUFFLER

$153.99

$

Usually ships in 3-6 days

0

27

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 7

0

29

Exmark 138-6007

SHEAVE-ENGINE

$55.99

$

Usually ships in 3-6 days

0

31

Exmark 126-6688-03

ANCHOR-CLUTCH

$79.99

$

Usually ships in 3-6 days

0

32

Exmark 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$17.99

$

In Stock, only 1 left!

0

34

Exmark 136-7823

ENGINE-2P77F-HD

$2605.99

$

Usually ships in 3-6 days

0

38

Exmark 131-1078

DECAL

$2.99

$

In Stock, only 2 left!

0

39

Exmark 135-2516

135-6448
(Superseded to 135-6448)

$5.49

$

Usually ships in 3-6 days

0

40

Exmark 131-1097

DECAL-DRAIN, OIL

$2.99

$

In Stock, Qty 5

0

44

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

45

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

46

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

48

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

49

Exmark 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

50

Exmark 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

54

Exmark 3231-29

SCREW-CARR

$7.49

$

In Stock, only 2 left!

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

58

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

60

Exmark 126-8925

CLUTCH - 1.00 HD

$429.99

$

Usually ships in 3-6 days

0

63

Exmark 93-2190

AIR CLEANER ASM

$250.99

$

Usually ships in 3-6 days

0

64

Exmark 136-7859

RAIN CAP KIT

$37.99

$

In Stock, only 1 left!

0

64:1

Exmark 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

65

Exmark 136-9242

HOSE-INTAKE

$28.99

$

Usually ships in 3-6 days

0

66

Exmark 137-2011

PIN-CLEVIS

$1.49

$

Usually ships in 3-6 days

0

67

Exmark 136-9243

STRAP-CANISTER, AIR

$11.99

$

Usually ships in 3-6 days

0

68

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

69

Exmark 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

70

Exmark 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

71

Exmark 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

72

Exmark 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
