RAS708GEM60RC3 - Exmark 60" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Suspension Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Exmark 708

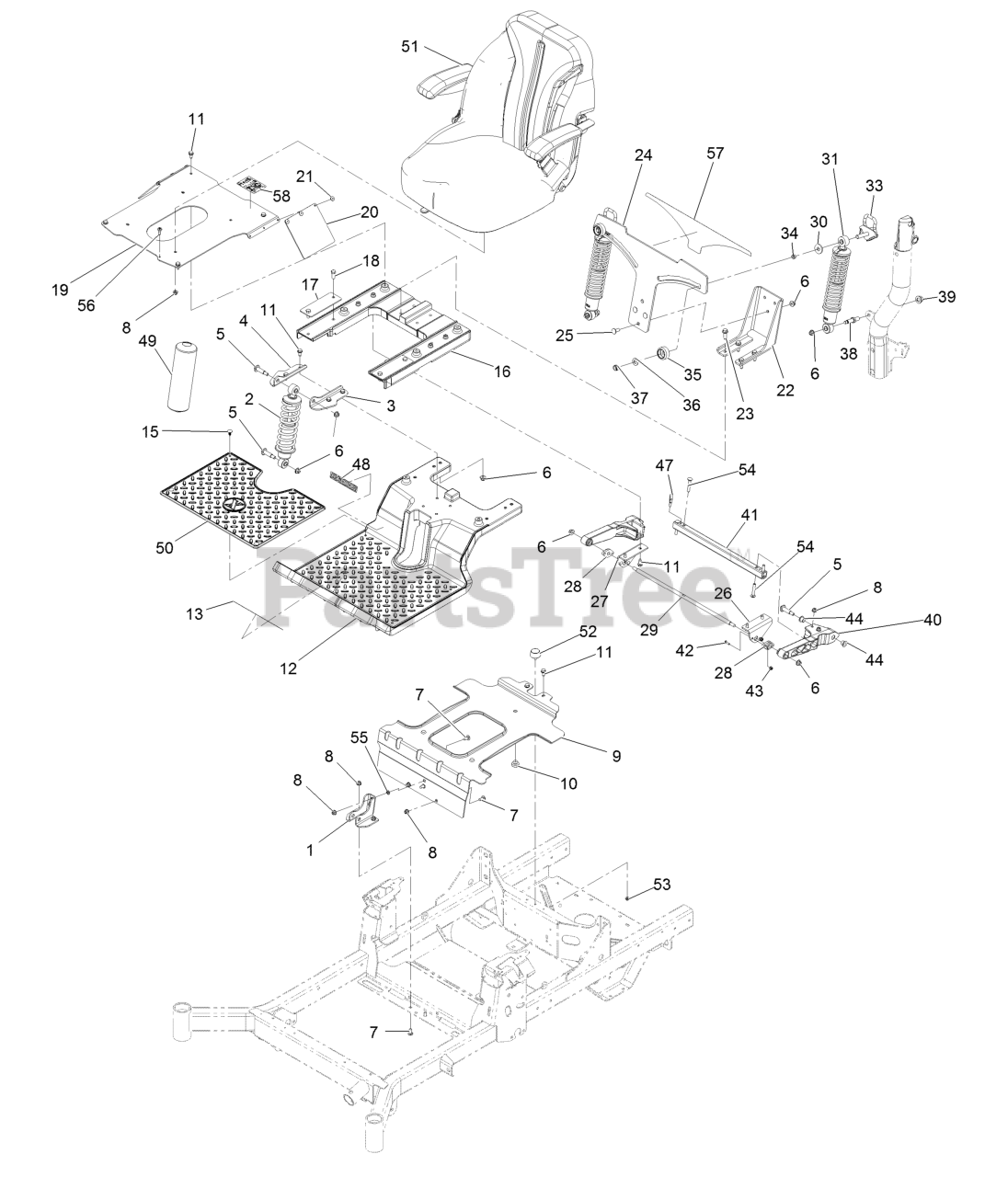

Suspension Assembly Parts Diagram

  • Title

1

Exmark 133-1864-03

Bracket-Shock, Front Lower

$21.99

$

Usually ships in 3-6 days

0

2

Exmark 136-8971

Shock/Spring

$131.99

$

Usually ships in 3-6 days

0

3

Exmark 133-9318-03

Bracket-Shock Mount, Upper (LH)

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 133-9319-03

Bracket-Shock Mount, Upper (RH)

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 136-9028

Bolt-Shoulder, HWH

$1.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

7

Exmark 3230-23

Bolt-Carriage 5/16-18 X 3/4 Short Neck

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

9

Exmark 136-8963-03

Bracket-Tank

$139.99

$

Usually ships in 3-6 days

0

10

Exmark 135-0505

Bumper-Seat

$1.49

$

In Stock, only 3 left!

0

11

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

12

Exmark 133-7083-01

Subframe-Front

$224.65

$

Usually ships in 3-6 days

0

13

Exmark 132-0871

Decal-Danger

$9.49

$

In Stock, only 2 left!

0

15

Exmark 117-2382

Plug-Plastic

$0.99

$

In Stock, Qty 20+

0

16

Exmark 137-7031-01

Subframe-Rear

$86.99

$

Usually ships in 3-6 days

0

17

Exmark 133-7089-03

Plate-Backer

$7.99

$

Usually ships in 3-6 days

0

18

Exmark 323-6

Screw-HH 3/8-16 X 1

$2.99

$

In Stock, Qty 20+

0

19

Exmark 136-8962-03

Plate-Seat

$93.99

$

Usually ships in 3-6 days

0

20

Exmark 136-8967

Flap-Rubber

$7.99

$

Usually ships in 3-6 days

0

21

Exmark 132-5064

Rivet-Pop

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 136-8955-03

Bracket-Mount, Lower

$66.99

$

Usually ships in 3-6 days

0

23

Exmark 32144-109

Screw-HWH 3/8-16 X 1 1/4 Taptite

$4.99

$

In Stock, Qty 7

0

24

Exmark 136-1744-03

Plate-Mounting, Adj Shock

$96.99

$

Usually ships in 3-6 days

0

25

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

26

Exmark 136-1741-03

Bracket-Arm, Trailing (LH)

$13.99

$

Usually ships in 3-6 days

0

27

Exmark 136-1742-03

Bracket-Arm, Trailing (RH)

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 127-0146

Bearing-Flange

$7.99

$

In Stock, only 2 left!

0

29

Exmark 136-1739

Rod-Pivot

$30.99

$

Usually ships in 3-6 days

0

30

Exmark 131-4699

Washer-Plastic

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 133-5154

Shock/Spring ASM
(Superseded to 133-5193)

$128.99

$

Usually ships in 3-6 days

0

33

Exmark 136-5634

Cam Lock ASM
(Superseded to 136-9017)

$38.99

$

Usually ships in 3-6 days

0

34

Exmark 133-5109

Bearing-Sleeve

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 136-5636

Knob-Lock, Cam

$12.99

$

Usually ships in 3-6 days

0

36

Exmark 3-6803

Washer-Adjusting

$8.49

$

Usually ships in 3-6 days

0

37

Exmark 3296-45

Nut-Nyloc 1/2-13 Thin

$4.49

$

In Stock, Qty 20+

0

38

Exmark 133-4401

Bolt-Shoulder

$14.99

$

Usually ships in 3-6 days

0

39

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

40

Exmark 136-8979

Trailing Arm

$34.99

$

Usually ships in 3-6 days

0

41

Exmark 137-9754-03

Tube-Arm, Trailing

$136.99

$

Usually ships in 3-6 days

0

42

Exmark 3229-20

Screw-CARR

$1.99

$

Usually ships in 3-6 days

0

43

Exmark 120-4578

Nut-HF

$0.99

$

Usually ships in 3-6 days

0

44

Exmark 125-5239

Bushing-Flange

$7.99

$

In Stock, Qty 6

0

47

Exmark 105-1853

Clamp-Hose

$5.49

$

In Stock, only 4 left!

0

48

Exmark 136-8966

Decal-Radius Logo

$6.49

$

Usually ships in 3-6 days

0

49

Exmark 136-8972

Cover-Shock

$12.99

$

Usually ships in 3-6 days

0

50

Exmark 136-8957

Floor Mat

$81.99

$

Usually ships in 3-6 days

0

51

Exmark 135-3442

ASM-Seat Exmark

$1354.99

$

Usually ships in 3-6 days

0

52

Exmark 131-8834

Bumper

$11.99

$

Usually ships in 3-6 days

0

53

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

54

Exmark 3230-6

Bolt-Carriage 3/16-18 X 2

$1.49

$

In Stock, Qty 11

0

55

Exmark 117-2749

Nut-Push

$1.49

$

Usually ships in 3-6 days

0

56

Exmark 135-2015

Screw-Shoulder

$3.49

$

Usually ships in 3-6 days

0

57

Exmark 136-8952

Decal-Adjustment, Ride

$21.99

$

Usually ships in 3-6 days

0

58

Exmark 136-9024

Decal-Aid, Service

$5.49

$

Usually ships in 3-6 days

0
