RAS708GEM60RC3 - Exmark 60" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Hydraulic Drive Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Exmark 708

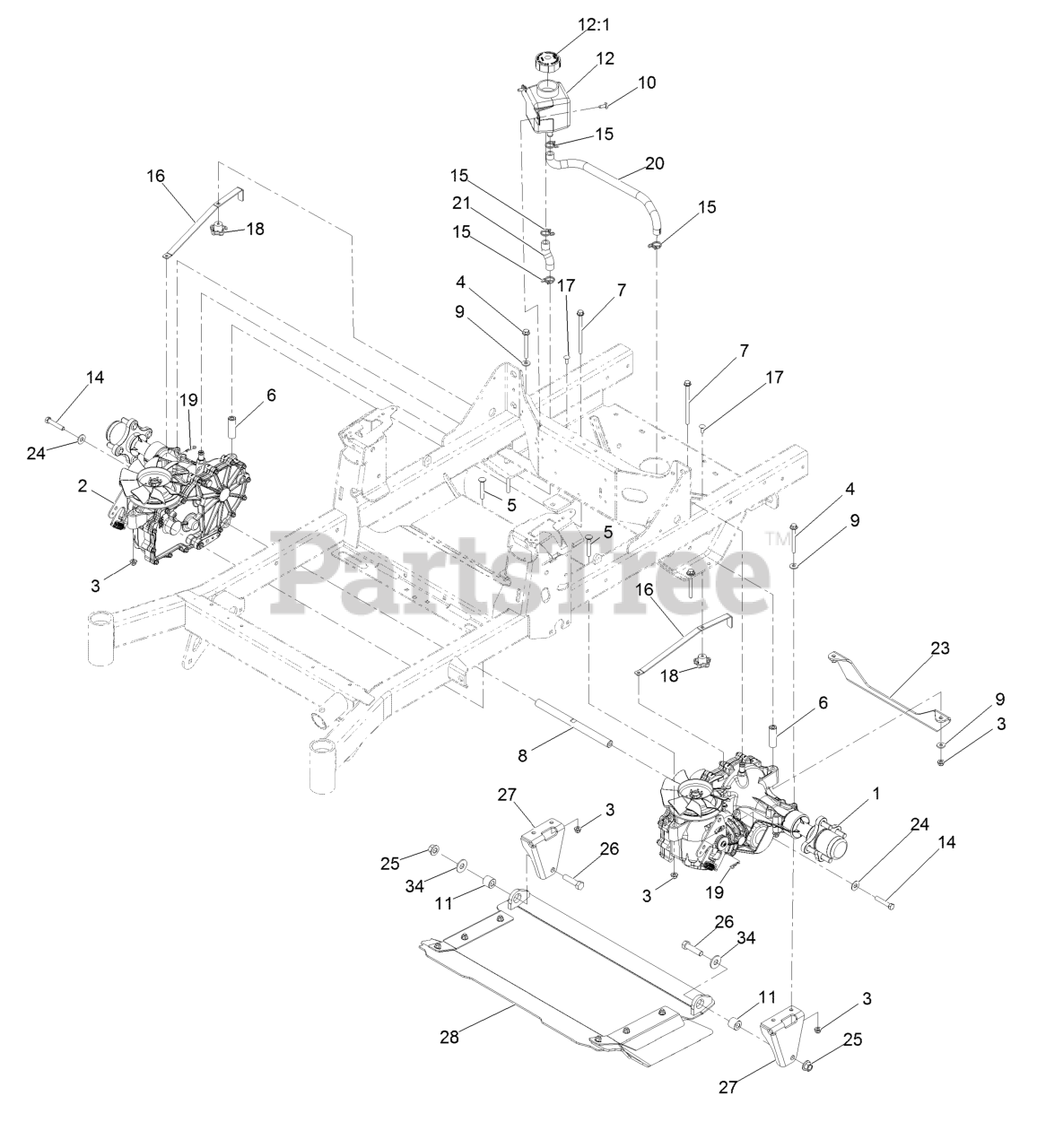

Hydraulic Drive Assembly Parts Diagram

  • Title

1

Exmark 126-2883

LH Transaxle ASM

$2215.99

$

Usually ships in 3-6 days

0

2

Exmark 126-2884

RH Transaxle ASM

$2215.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 126-4687

Screw-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-7

Bolt-Carriage 5/16-18 X 2 1/4

$1.49

$

In Stock, Qty 8

0

6

Exmark 116-5809

Spacer-Hydro

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 126-5896

Screw HHF

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6833

Shaft-Spacer

$42.99

$

Usually ships in 3-6 days

0

9

Exmark 1-303334

Washer-Spring Disc 5/16

$2.99

$

In Stock, Qty 7

0

10

Exmark 126-6266

Screw-1/4-20 X .65 Torx Plus

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 126-1705

Bushing-Sleeve

$8.49

$

In Stock, Qty 5

0

12

Exmark 109-2250

Tank-HYD

$71.99

$

In Stock, only 1 left!

0

12:1

Exmark 109-3320

Cap-Reservoir, HYD

$30.99

$

In Stock, only 2 left!

0

14

Exmark 94-7972

Screw-HH W/Loctite

$5.49

$

In Stock, only 2 left!

0

15

Exmark 126-0327

Clamp-Hose

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 109-5395

Arm-Bypass, Hydro

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 3229-1

Bolt-Carriage 1/4-20 X 3/4

$3.99

$

In Stock, only 3 left!

0

18

Exmark 108-6402

Knob-Handle

$1.99

$

In Stock, Qty 11

0

19

Exmark 1-806003

Hairpin-Cotter

$1.99

$

In Stock, Qty 20+

0

20

Exmark 133-1325

Hose-Hydraulic

$18.99

$

Usually ships in 3-6 days

0

21

Exmark 133-1320

Hose-Hydraulic

$6.99

$

Usually ships in 3-6 days

0

23

Exmark 126-5672-03

Support-Transmission

$77.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

25

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

26

Exmark 325-8

Screw-HH 1/2-13 X 1 1/4

$5.99

$

In Stock, only 2 left!

0

27

Exmark 126-1988-03

Bracket-Mount, Discharge

$26.99

$

Usually ships in 3-6 days

0

28

Exmark 126-1985

Discharge Tunnel ASM

$323.99

$

Usually ships in 3-6 days

0

34

Exmark 3256-6

Washer

$0.99

$

In Stock, Qty 10

0
