RAS708GEM523C3 - Exmark 52" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

52" Radius S-Series Zero-Turn Mower, Exmark 708

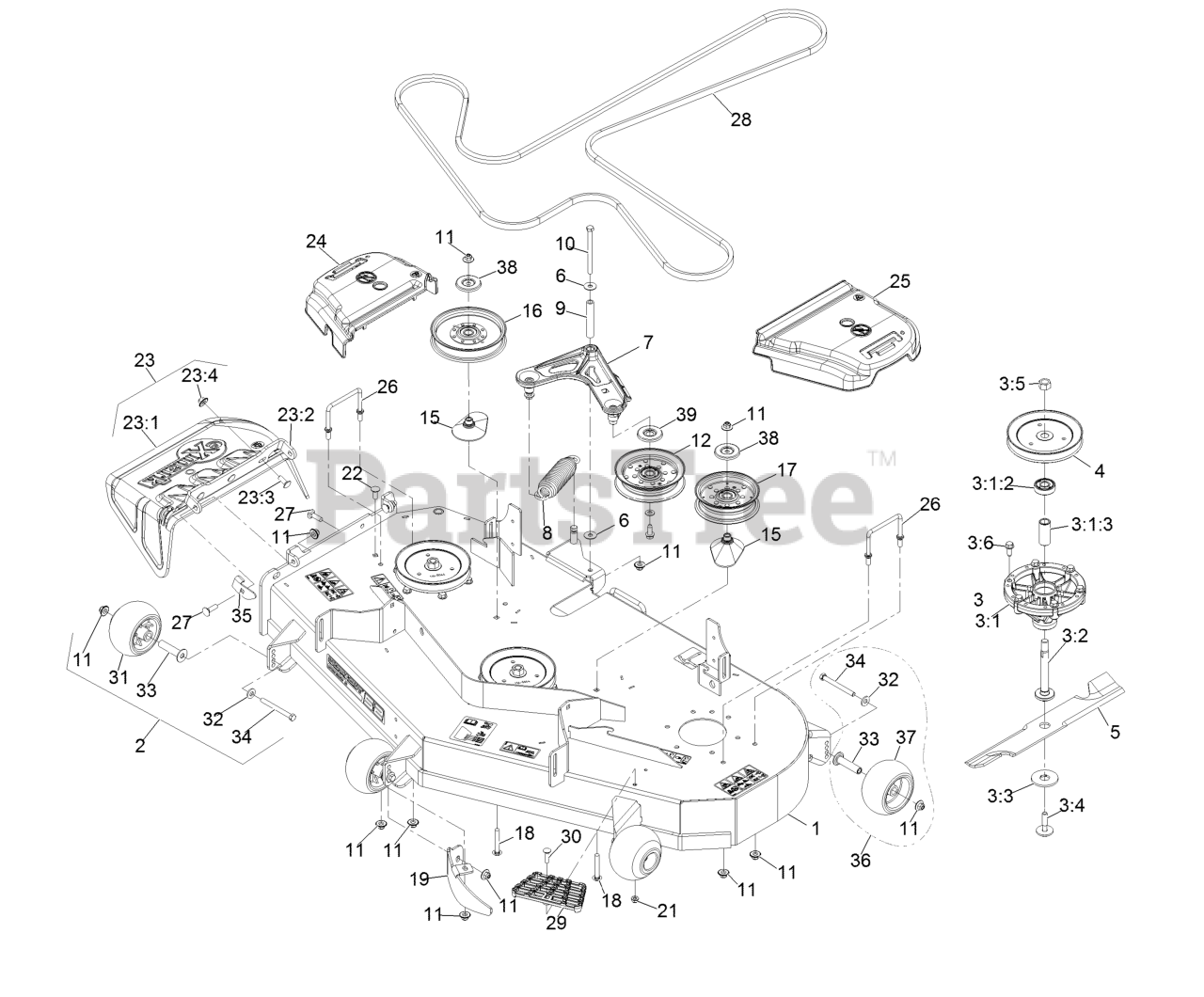

Deck Assembly Parts Diagram

  • Title
1

Exmark 126-3578

ASM-Deck W/Decals 523

$2269.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

Kit, Anti-Scalp Roller

$52.99

$

In Stock, Qty 20+

0

3

Exmark 126-4630

ASM, Cutter Housing Complete

$160.99

$

In Stock, only 1 left!

0

3:1

Exmark 126-4627

ASM-Cutter Housing

$123.99

$

In Stock, only 1 left!

0

3:1:2

Exmark 116-4004

Bearing

$19.99

$

In Stock, only 3 left!

0

3:1:3

Exmark 116-4876

Spacer-Bearing

$7.99

$

In Stock, only 2 left!

0

3:2

Exmark 109-7431

Spindle-Hex Pilot

$37.99

$

In Stock, Qty 5

0

3:3

Exmark 126-4530

Washer-Hex Blade Drive

$5.49

$

In Stock, Qty 20+

0

3:4

Exmark 116-0005

Bolt-Blade, Sem

$7.99

$

In Stock, Qty 20+

0

3:5

Exmark 3219-6

Nut-Hex

$3.99

$

In Stock, Qty 20+

0

3:6

Exmark 126-1696

Screw-Forming, Thread

$1.49

$

In Stock, Qty 5

0

4

Exmark 116-5044

Sheave,Blade Drive 6.50

$64.99

$

In Stock, only 1 left!

0

5

Exmark 103-6382

Blade, Solid
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

5

Exmark 103-6387

Blade, Low Lift
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

5

Exmark 103-6392

Blade, Mulching
(Superseded to 103-6392-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6402

Blade-Notched
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 116-5175

Blade-Extreme 2, 18.00"
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 4 left!

0

6

$1.49

$

In Stock, Qty 13

0

7

Exmark 126-0976

Idler Arm ASM

$108.99

$

In Stock, Qty 11

0

8

Exmark 116-6317

Spring-Extension

$28.99

$

In Stock, Qty 11

0

9

Exmark 116-5111

Bushing

$33.99

$

In Stock, only 1 left!

0

10

Exmark 323-38

Screw-HH

$11.99

$

In Stock, only 1 left!

0

11

Exmark 109-6658

Nut-Flange, NI

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 126-9196

Idler-Pulley, Flat

$60.99

$

In Stock, Qty 9

0

15

Exmark 109-2872

Spacer-Pulley

$22.99

$

Usually ships in 3-6 days

0

16

Exmark 126-9189

Idler-Pulley, Flat 6.00X1.00

$61.99

$

In Stock, Qty 10

0

17

Exmark 126-9197

Idler-Pulley, Flat 5.00X1.31

$62.99

$

In Stock, only 2 left!

0

18

Exmark 3231-44

Screw-CARR

$2.99

$

In Stock, Qty 17

0

19

Exmark 116-5835-01

Baffle-Dogleg, Lze-Pns-52

$62.99

$

Usually ships in 3-6 days

0

21

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 19

0

22

Exmark 3231-22

Screw-CARR

$3.49

$

In Stock, Qty 20+

0

23

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, only 2 left!

0

23:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, Qty 7

0

23:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

23:3

Exmark 3231-22

Screw-CARR

$3.49

$

In Stock, Qty 20+

0

23:4

Exmark 109-6658

Nut-Flange, NI

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 109-6935

Cover-Belt, RH

$38.99

$

In Stock, only 1 left!

0

25

Exmark 109-6936

Cover-Belt, LH

$38.99

$

In Stock, only 1 left!

0

26

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, only 4 left!

0

27

Exmark 3231-25

Bolt-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

28

Exmark 126-7443

Belt-V
(Superseded to 126-7443-SL)

$169.99

$

In Stock, only 1 left!

0

29

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

30

Exmark 3230-3

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-8415

Roller-Anti-Scalp

$23.99

$

In Stock, Qty 12

0

32

Exmark 98-5975

Washer-Belleville

$3.49

$

In Stock, Qty 20+

0

33

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 5

0

34

Exmark 116-9362

Screw-HH

$2.99

$

In Stock, Qty 20+

0

35

Exmark 135-0064

Stop-Discharge Chute

$9.99

$

Usually ships in 3-6 days

0

36

Exmark 126-7840

Kit-Antiscalp Roller

$49.99

$

Usually ships in 3-6 days

0

37

Exmark 1-603299

Roller-Scalp, Anti

$23.99

$

In Stock, Qty 16

0

38

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, only 3 left!

0

39

Exmark 126-9195

Shield-Guard, Dust

$2.99

$

In Stock, only 3 left!

0
