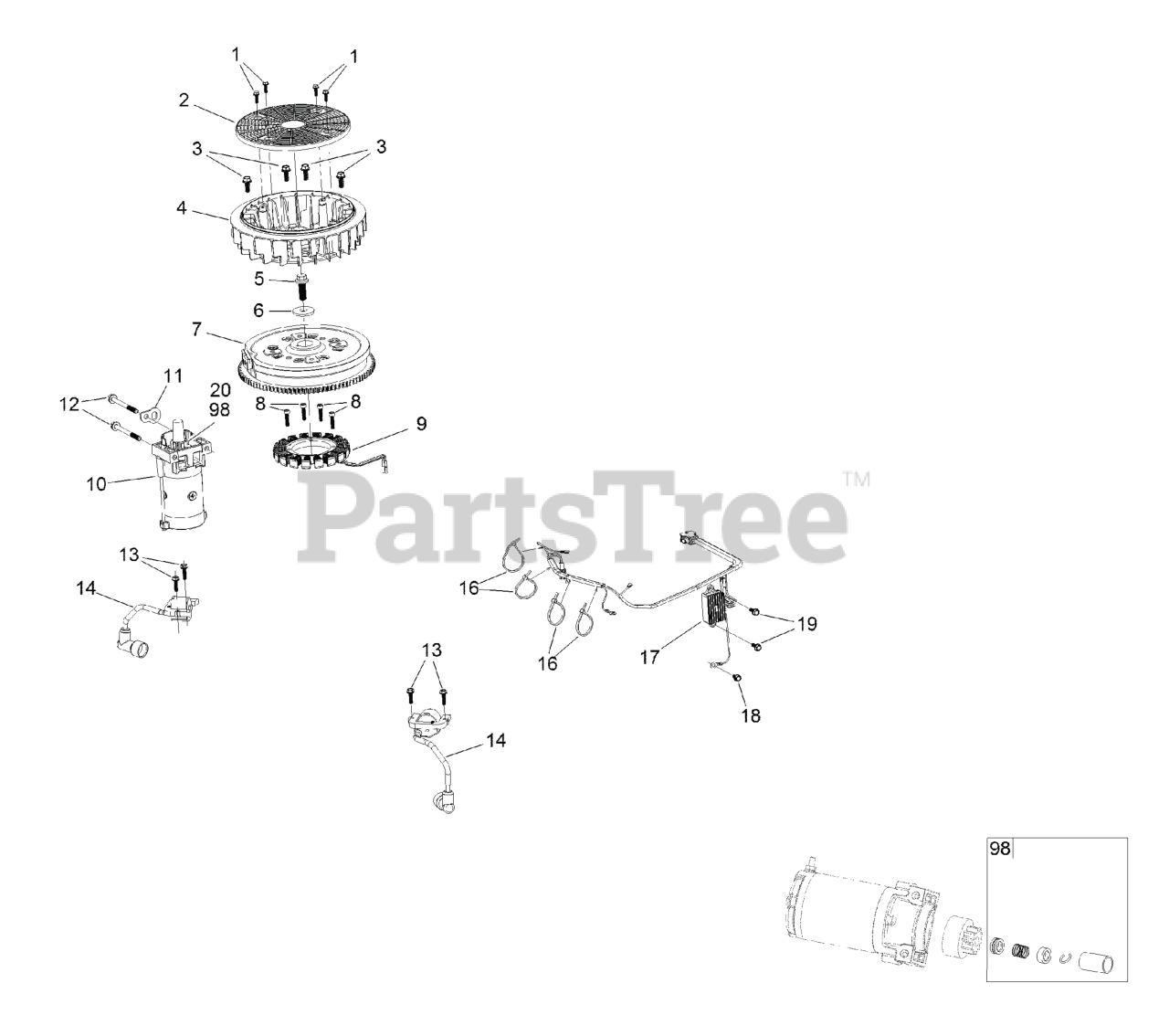

RAS708GEM483C3 - Exmark 48" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 404314159 - 406294344) (2019) Ignition and Cooling Fan Parts Diagram

48" Radius S-Series Zero-Turn Mower, Exmark 708

Ignition and Cooling Fan Parts Diagram

  • Title

1

Exmark 127-9197

SCREW-HWH

$1.49

$

In Stock, Qty 6

0

2

Exmark 127-9198

SCREEN-ROTATING

$23.99

$

In Stock, only 3 left!

0

3

Exmark 127-9199

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 127-9200

FAN-COOLING

$54.99

$

In Stock, only 2 left!

0

5

Exmark 127-9201

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

6

Exmark 127-9202

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

7

Exmark 127-9306

FLYWHEEL

$229.99

$

In Stock, Qty 15

0

8

Exmark 127-9210

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 136-7876

ALTERNATOR

$109.99

$

In Stock, Qty 19

0

10

Exmark 136-7880

MOTOR-STARTER

$226.99

$

In Stock, Qty 20+

0

11

Exmark 127-9208

BRACKET-LIFT

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 120-4231

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

13

Exmark 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 136-7883

IGNITION COIL ASM
(Superseded to 139-0720)

$59.99

$

In Stock, Qty 17

0

16

Exmark 127-9220

TIE-ZIP

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 136-7879

REGULATOR-VOLTAGE, W/HARNESS

$69.99

$

In Stock, Qty 5

0

18

Exmark 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 133-1562

PINION-STARTER

$54.99

$

Usually ships in 3-6 days

0

98

Exmark 133-1566

STARTER REPAIR KIT

$18.99

$

In Stock, only 3 left!

0
