Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Wheels & Tires Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

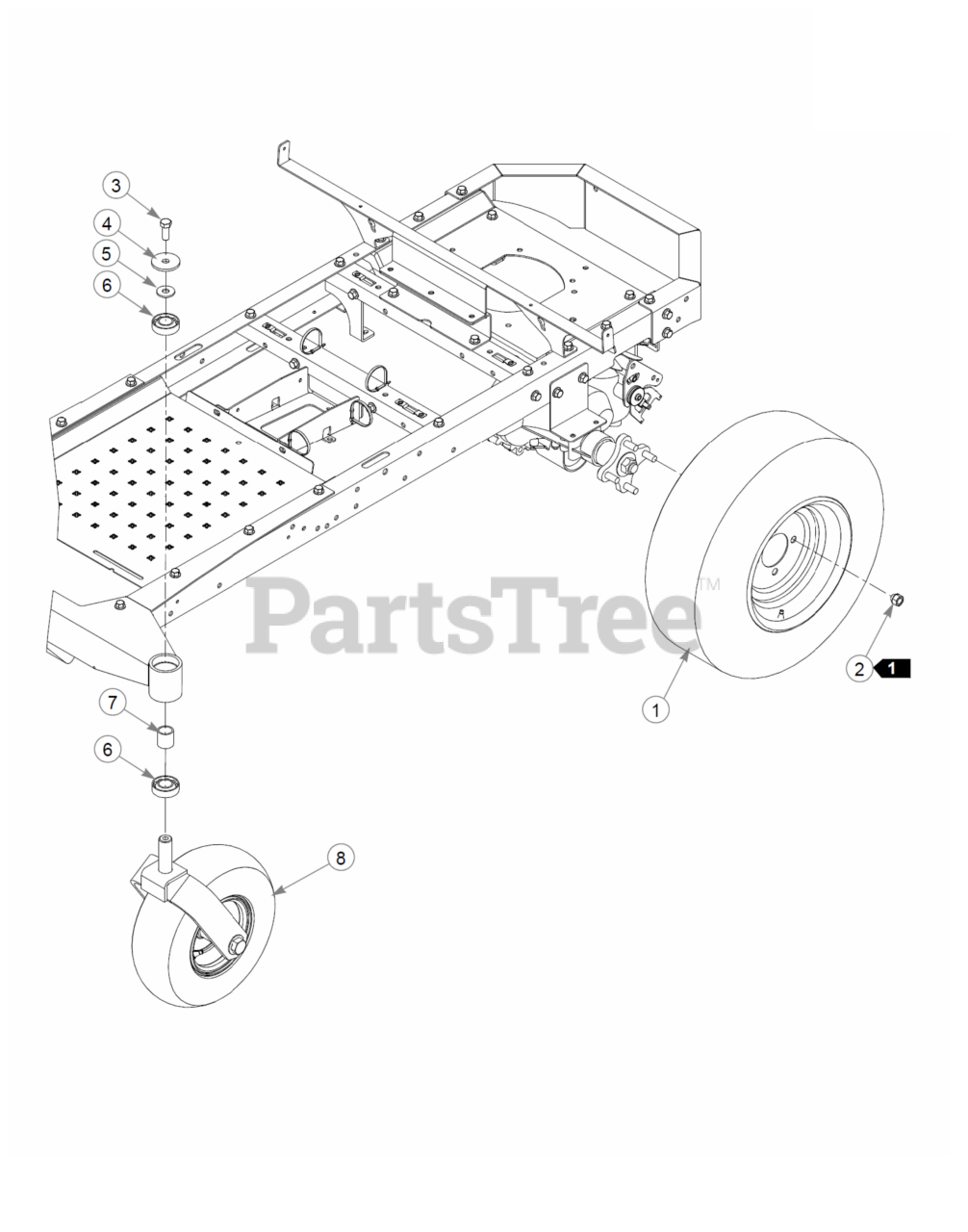

Wheels & Tires Parts Diagram

  • Title
1

Cub Cadet 601349

TIR/WHL 20X12.00-10 SLV

Note: 1. Torque to 65-75 ft-lbs. 601349 is used on 54" & 60" Mowers.

$

$

Currently unavailable

1

Cub Cadet 600676

TIR/WHL 20X8.00-10 SLV

Note: 600676 is used on 48" Mower.

$

$

Currently unavailable

2

Cub Cadet 061077

WHEEL NUT

$

$

Currently unavailable

3

Cub Cadet 705954

CS .500-13X1.25 HX G5 ZN

$

$

Currently unavailable

4

Cub Cadet 344267

FW .510X2.15X.19 ZN

$

$

Currently unavailable

5

Cub Cadet 712976

ASSEMBLY CHUTE & GEAR BLK

$

$

Not available

6

$

$

Currently unavailable

7

$

$

Currently unavailable

8

REFER TO "FRONT WHEEL ASSEMBLY BREAKDOWN"

$

$

Not available
