Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Transmission Service Parts - 604709 Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

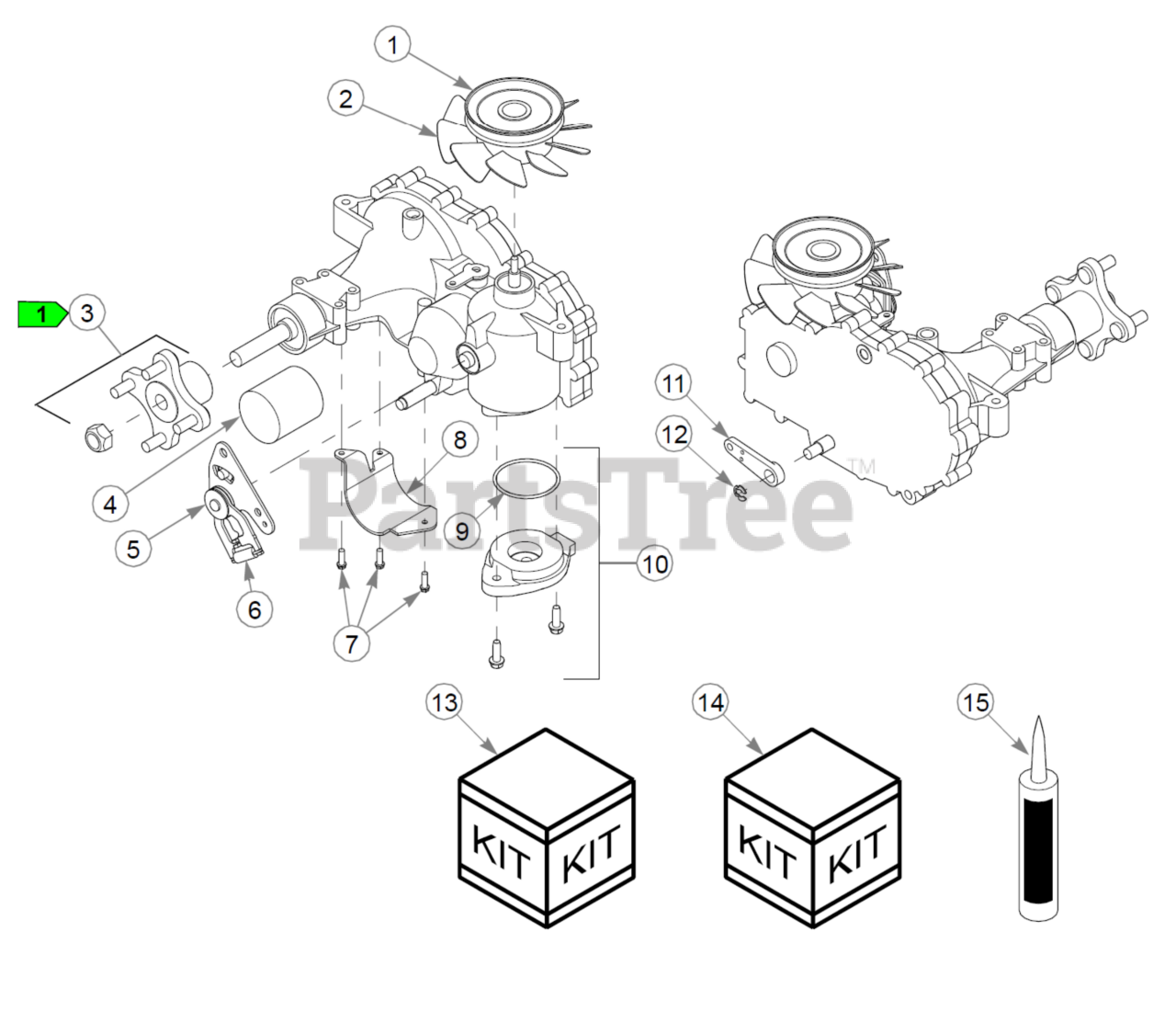

Transmission Service Parts - 604709 Parts Diagram

  • Title

1

Cub Cadet 602094

FAN / PULLEY KIT

$

$

Currently unavailable

2

Cub Cadet 607729

FAN - 7.0" (10 BLADE)

$

$

Currently unavailable

3

Cub Cadet 600970

KIT, HUB, 4 BOLT

Note: 1. Hub kit (600970) includes the hub nut.

$

$

Currently unavailable

4

Cub Cadet 600976

HYDRAULIC OIL FILTER

$

$

Not available

5

Cub Cadet 604902

HG RTN CCW

$

$

Currently unavailable

6

Cub Cadet 604903

HG RTN SPRING

$

$

Not available

7

Cub Cadet 604324

CS .250-20 X .75 HX FLG

$

$

Currently unavailable

8

Cub Cadet 600974

GUARD, TRANS FILTER

$

$

Currently unavailable

9

Cub Cadet 603223

O-RING, ZT28/3100 CHARGE

$

$

Not available

10

Cub Cadet 603572

COVER, ZT3100 CHRG PUMP

$

$

Currently unavailable

11

Cub Cadet 601221

ZT2800 BRAKE ARM - 2007

$

$

Currently unavailable

12

Cub Cadet 600972

CLIP, RETAINING

$

$

Currently unavailable

13

Cub Cadet 606830

OIL RETENSION KIT

$

$

Currently unavailable

14

Cub Cadet 607199

SEAL KIT

$

$

Not available

15

Cub Cadet 607869

TUBE - SEALANT

Note: Used for sealing side cover on transmission. One tube covers multiple covers.

$

$

Currently unavailable
