Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Steering & Brake Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

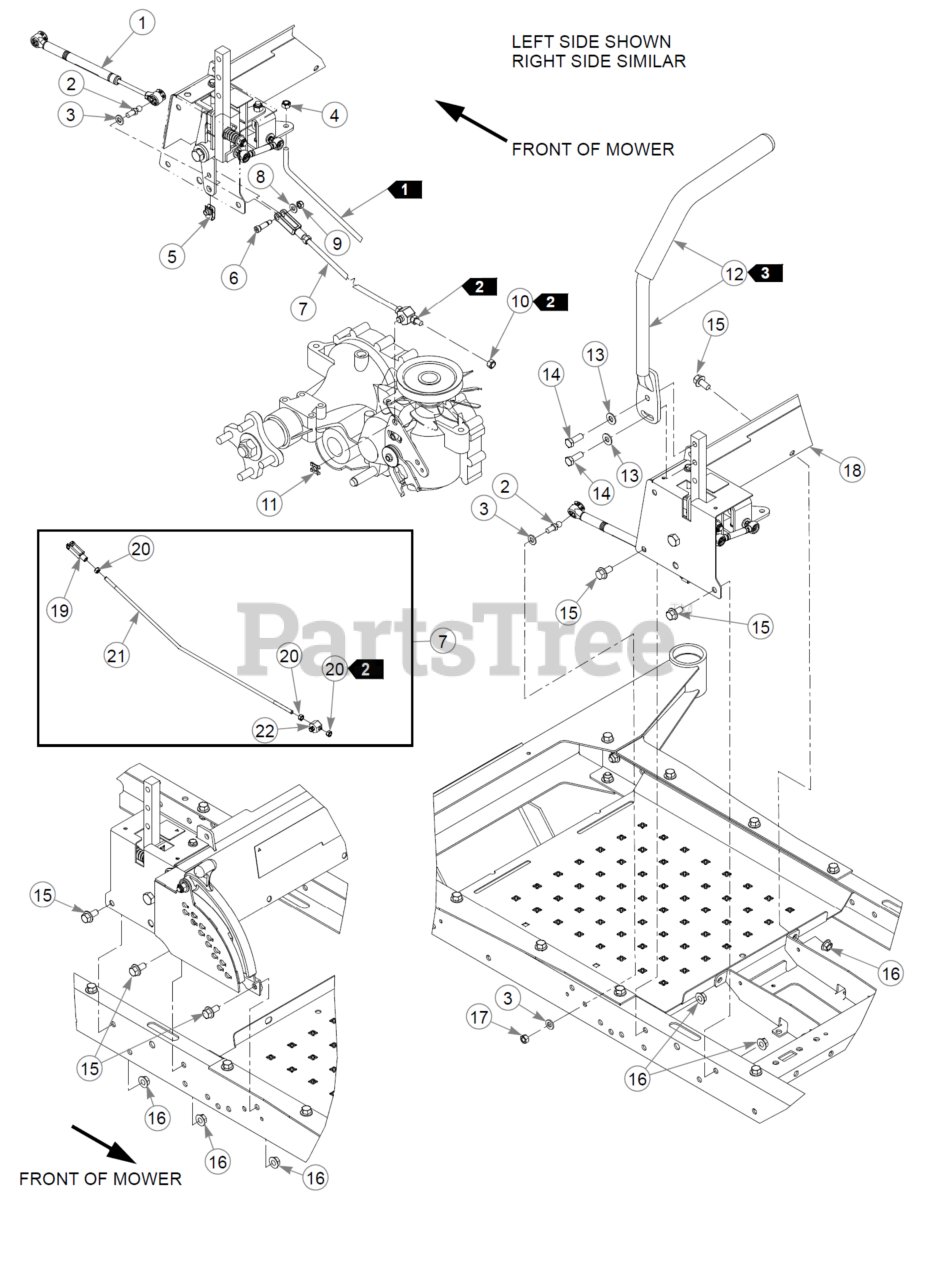

Steering & Brake Parts Diagram

  • Title

1

Cub Cadet 603983

DAMPER

$

$

Currently unavailable

2

Cub Cadet 781922

BALL STUD

$

$

Currently unavailable

3

Cub Cadet 768523

FW 0.343SAE

$

$

Currently unavailable

4

Cub Cadet 058776

NT .312-18NLG5

$

$

Currently unavailable

5

Cub Cadet 601069

CN .312-18x.200 MAX THK

$

$

Currently unavailable

6

Cub Cadet 772483

SB0.312X0.750SH0.250-20

$

$

Currently unavailable

7

Cub Cadet 606273

STEERING ROD S/A

$

$

Currently unavailable

8

Cub Cadet 768515

FW 0.281SAE

$

$

Currently unavailable

9

Cub Cadet 068551

NT .250-20 HXZY NL

$

$

Currently unavailable

10

Cub Cadet 023655

NT 0.312-24 NL G8

Note: 2. Torque to 14 ft-lbs.

$

$

Currently unavailable

11

Cub Cadet 606575

CLIP, SAFETY

$

$

Currently unavailable

12

Cub Cadet 110370

STEERING BAR W/ GRIP

Note: 3. The steering bar (110370) includes the grip (781260).

$

$

Currently unavailable

Not Shown

Cub Cadet 781260

GRIP, STEERING BAR

Note: Not Shown

$

$

Currently unavailable

13

Cub Cadet 767954

FW 0.379X.82X.06 HD ZN

$

$

Currently unavailable

14

Cub Cadet 036244

CS .375-16X1.00 HX G5 ZN

$

$

Currently unavailable

15

Cub Cadet 029629

CS .375-16X0.75 HXF G5ZN

$

$

Currently unavailable

16

Cub Cadet 016899

NT .375-16 FLKG5

$

$

Currently unavailable

17

Cub Cadet 034272

NT .312-18HXG5

$

$

Currently unavailable

18

STEERING COVER ASSEMBLY

Note: N/A

$

$

Not available

19

Cub Cadet 604173

YOKE, 5/16-24

$

$

Currently unavailable

20

Cub Cadet 041152

NT 0.312-24 HX G8

Note: 2. Torque to 14 ft-lbs.

$

$

Currently unavailable

21

Cub Cadet 604666

ROD, STEERING

$

$

Currently unavailable

22

Cub Cadet 116144

BLOCK, STEERING CONTROL

$

$

Currently unavailable

1a

1. Part of the transmission assembly.

$

$

Not available
