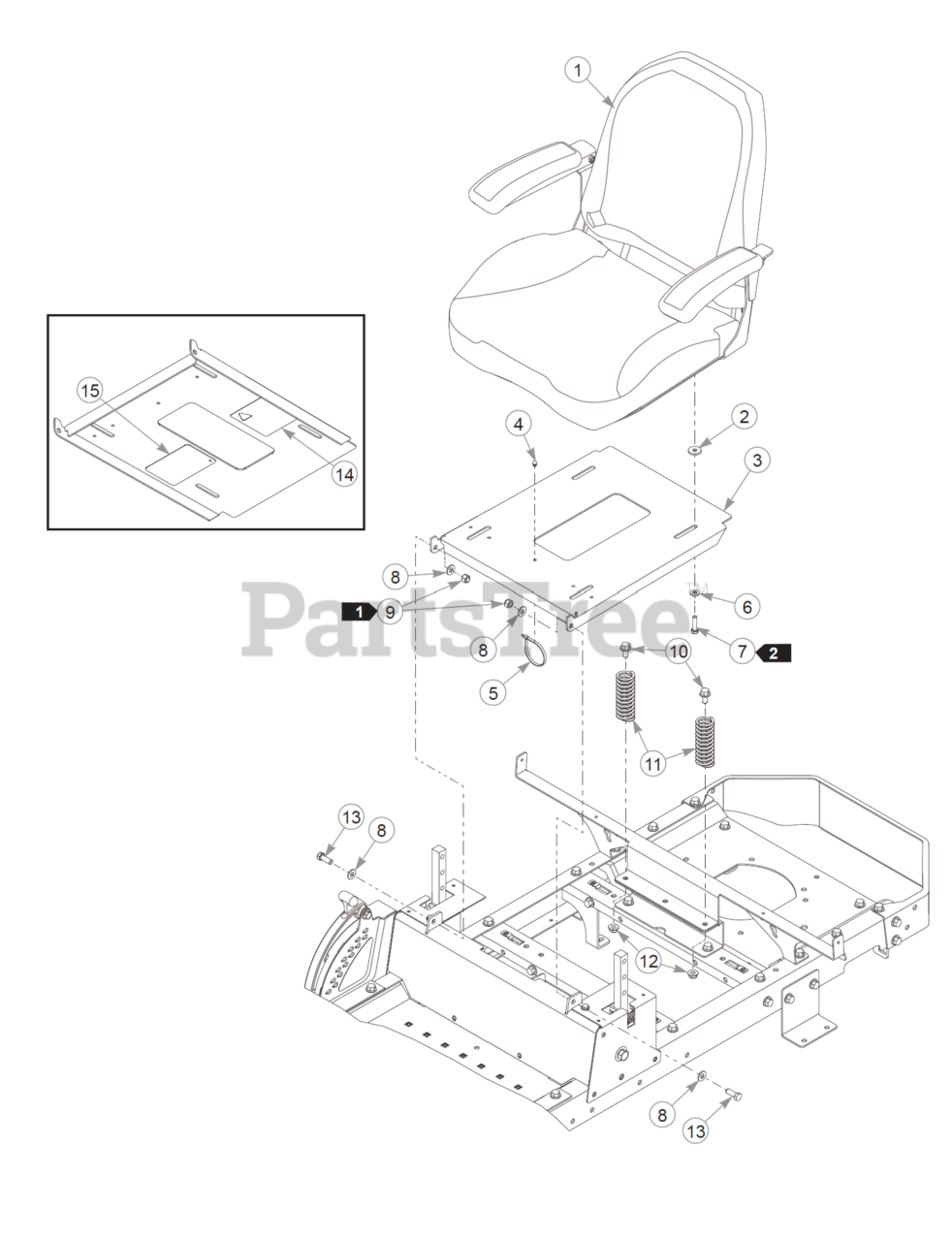

Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Seat - S/N PRIOR TO 19084846 Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

Seat - S/N PRIOR TO 19084846 Parts Diagram

  • Title
1

Cub Cadet 606077

BAG-SEWN ONLY 530 PUSH 20/BX

$

$

Currently unavailable

2

Cub Cadet 712927

FW 0.344X1.00X.12 HD ZN

$

$

Currently unavailable

3

Cub Cadet 552751

SVC, SEAT PAN

$

$

Currently unavailable

4

Cub Cadet 604307

MOUNT, PUSH BUTTON

$

$

Currently unavailable

5

Cub Cadet 000331

WIRE TIE, SMALL/SHORT

$

$

Currently unavailable

6

Cub Cadet 768523

FW 0.343SAE

$

$

Currently unavailable

7

Cub Cadet 079186

CS .312-18X1.250HXG5

$

$

Currently unavailable

8

Cub Cadet 767954

FW 0.379X.82X.06 HD ZN

$

$

Currently unavailable

9

Cub Cadet 086660

ASSEMBLY BLADE

$

$

Not available

10

Cub Cadet 029629

CS .375-16X0.75 HXF G5ZN

$

$

Currently unavailable

11

Cub Cadet 793851

SPRING,COMP 1.25X4.00X.

$

$

Currently unavailable

12

Cub Cadet 016899

NT .375-16 FLKG5

$

$

Currently unavailable

13

Cub Cadet 036244

CS .375-16X1.00 HX G5 ZN

$

$

Currently unavailable

14

Cub Cadet 781419

DECAL, BELT ROUTING

$

$

Currently unavailable

15

Cub Cadet 601815

DECAL, BATTERY WARNINGS

$

$

Currently unavailable
