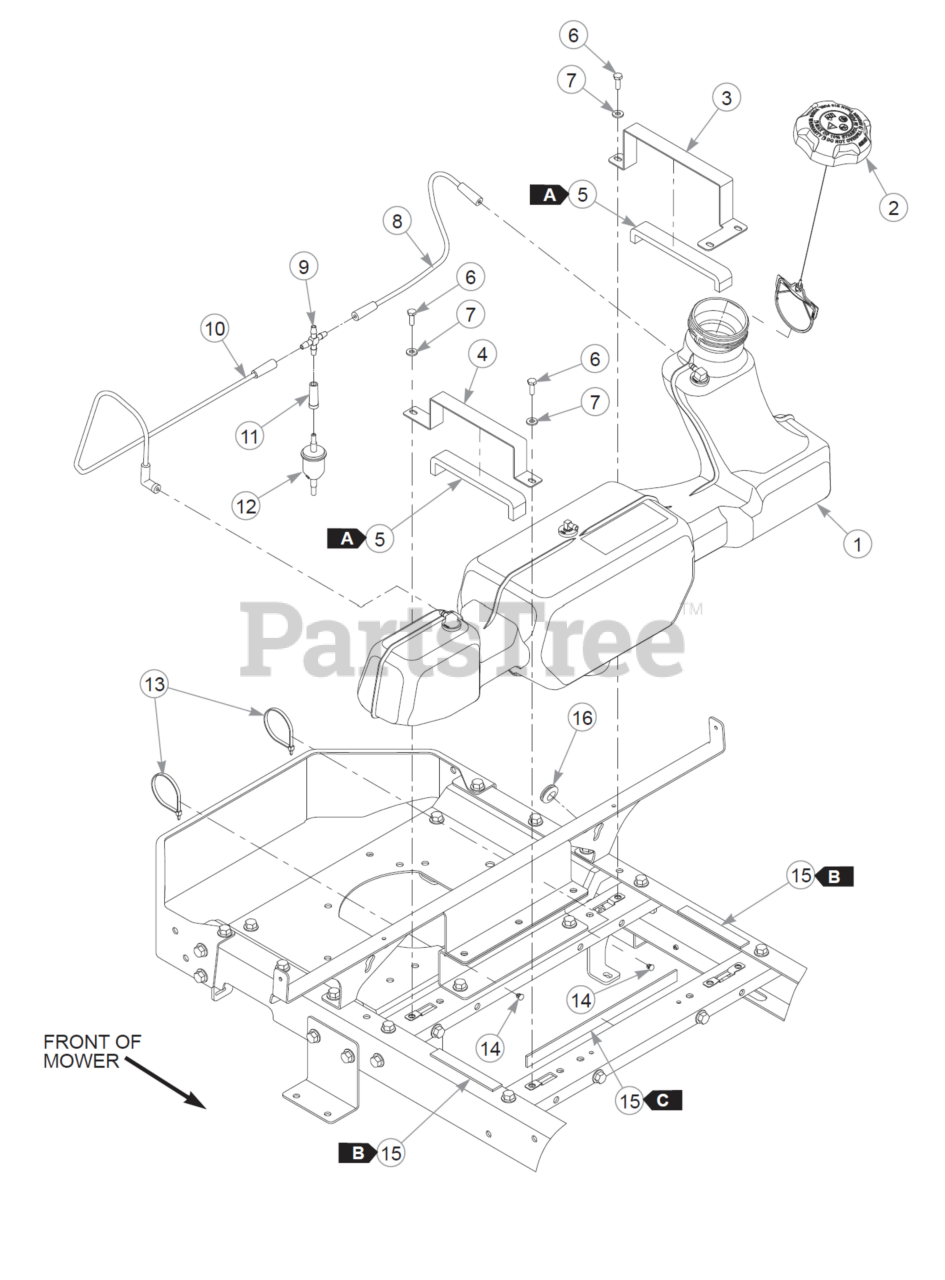

Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Fuel System Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

Fuel System Parts Diagram

  • Title
1

Cub Cadet 606432

FUEL TANK

$

$

Currently unavailable

2

Cub Cadet 603807

CAP, 3.5" RATCHETING GAS

$

$

Currently unavailable

3

Cub Cadet 117059

TANK MNT LEFT

$

$

Currently unavailable

4

Cub Cadet 117060

TANK MNT RIGHT

$

$

Currently unavailable

5

Cub Cadet 713198

SEAL 3/8x3/4 SOLD BY FT

Note: 18.5"

$

$

Currently unavailable

6

Cub Cadet 055939

CS .250-20X0.75 HX G5 ZN

$

$

Currently unavailable

7

Cub Cadet 768515

FW 0.281SAE

$

$

Currently unavailable

8

Cub Cadet 604279

VAPOR LINE, 3/16 FORMED

$

$

Currently unavailable

9

Cub Cadet 604322

1/4" HOSE BARB CROSS

$

$

Currently unavailable

10

Cub Cadet 604273

VAPOR LINE, 3/16 FORMED

$

$

Currently unavailable

11

Cub Cadet 604292

BOOT, 3/16" TO 1/4" BARB

$

$

Currently unavailable

12

Cub Cadet 604323

VAPOR SYSTEM FILTER

$

$

Currently unavailable

13

Cub Cadet 000331

WIRE TIE, SMALL/SHORT

$

$

Currently unavailable

14

Cub Cadet 604307

MOUNT, PUSH BUTTON

$

$

Currently unavailable

15

Cub Cadet 033035

WEATHERSTRIP .12X.75

Note: 22"

$

$

Currently unavailable

16

Cub Cadet 601400

GM .63 x1.13 x.88 x .13

$

$

Currently unavailable
